05/2014
9-17
DC SC2020
Installation/Removal
9.1.3 Duplex
Version 1.1

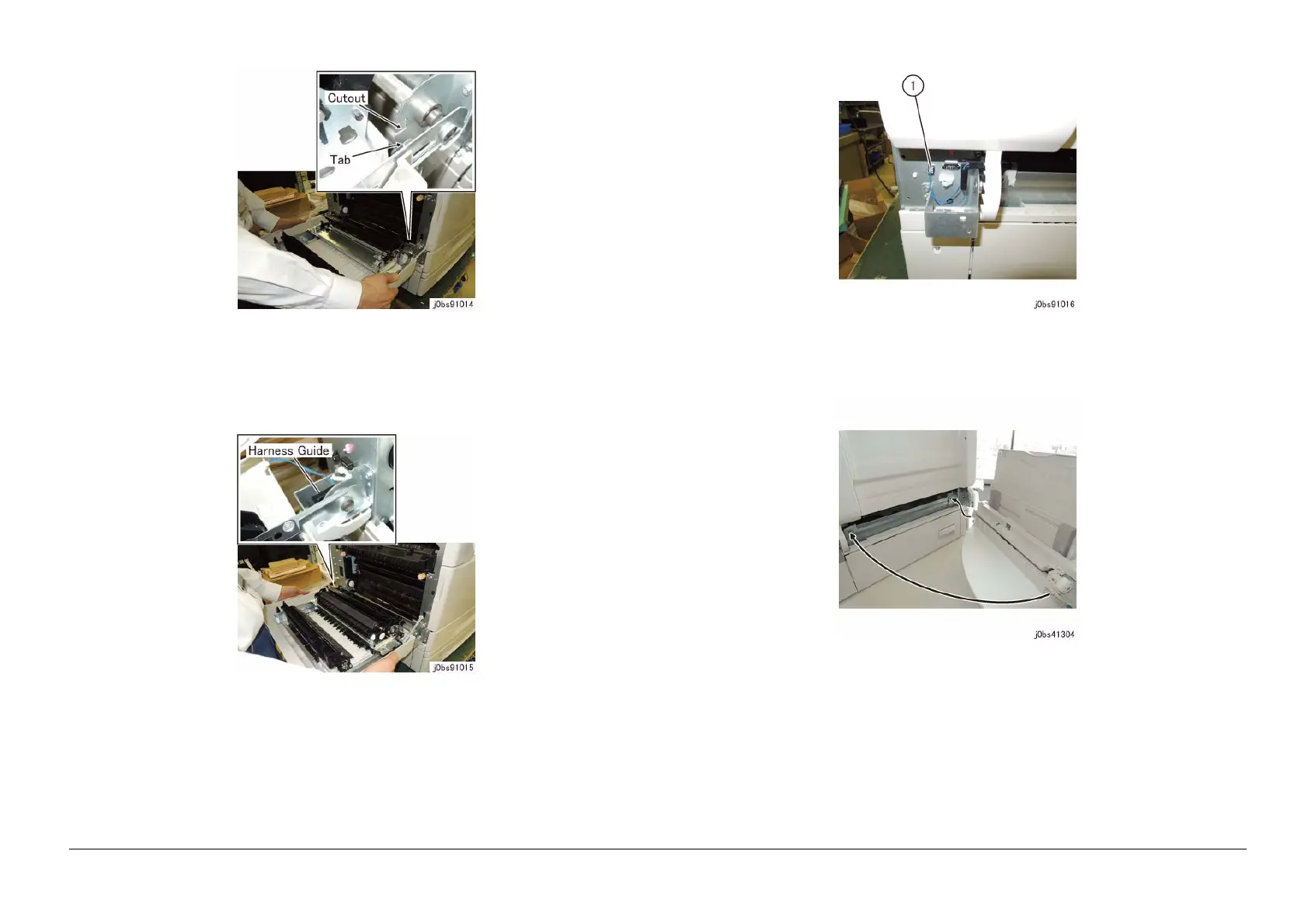

Figure 22 j0bs91014
26. Install the L/H Cover that is provided in the Kit. (Figure 23)
(1) Install by performing Step 25 in reverse.
(2) When it is placed, do not to let Harness Guide of the Rear side of L/H Cover touch Boss
Bracket.
Figure 23 j0bs91015
27. Attach the L/H Cover Support (x2).
• Install by performing Step 24 in reverse.
28. Close the L/H Cover.
29. Connect the connector of the L/H Cover. (Figure 24)
(1) Connect the connector.
Figure 24 j0bs91016
30. Reinstall the parts that were removed in Steps 14 to 18.
31. When installing the MSI, insert the boss (x2) of the MSI into the holes for the boss. (Figure 25)
Figure 25 j0bs41304
32. When put back Connector of MSI, fix Wire Harness of MSI and Wire Harness of L/H Cover in
Clamp.
To Next Page
