05/2014
9-20
DC SC2020
9.1.4 One Tray Module
Version 1.1
Installation/Removal

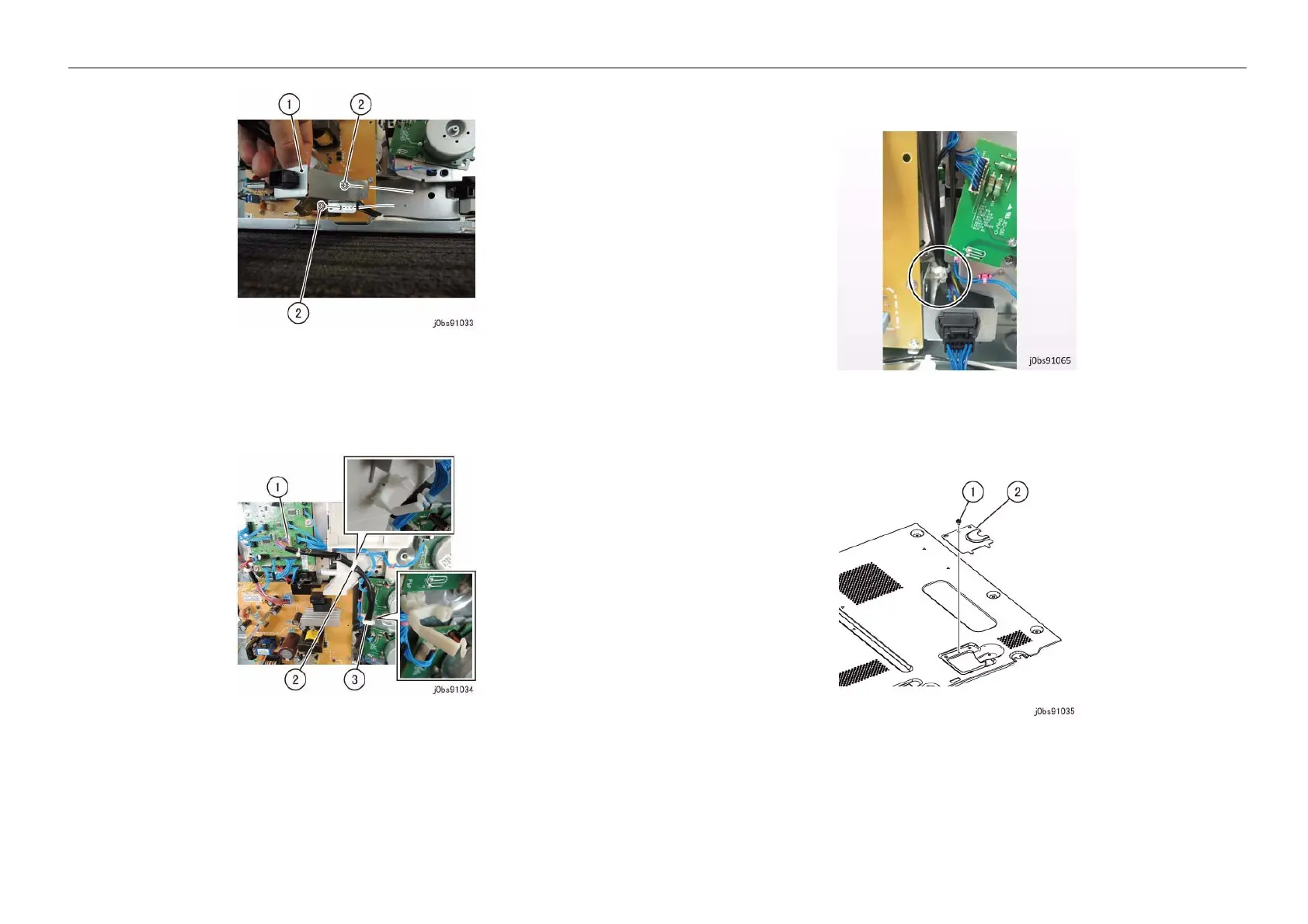

Figure 5 j0bs91033
9. Connect the wire harness. (Figure 6)
(1) Connect the wire harness.
(2) Fix Wire Harness with Clamp A in the kit.
(3) Fix Wire Harness with Clamp B in the kit.
Figure 6 j0bs91034
NOTE: Please make sure that this Harness must be install properly.Otherwise, some print/copy
defect will occur. (Figure 7)
Figure 7 j0bs91065
10. Remove the STM Connector Cover. (Figure 8)
(1) Remove the screw.
(2) Remove the STM Connector Cover.
Figure 8 j0bs91035
11. Reinstall the Rear Cover that was removed in Step 6.
WARNING
[Platen Cover Type]: As the IOT is very heavy, make sure you have 3 or more persons (2 at
the left and 1 at the right) to perform the mounting.[DADF Type]: As the IOT is very heavy,
make sure you have 4 or more persons (2 at the left and 2 at the right) to perform the mount-
ing.
To Next Page
