9.1.4 One Tray Module
Version 1.1

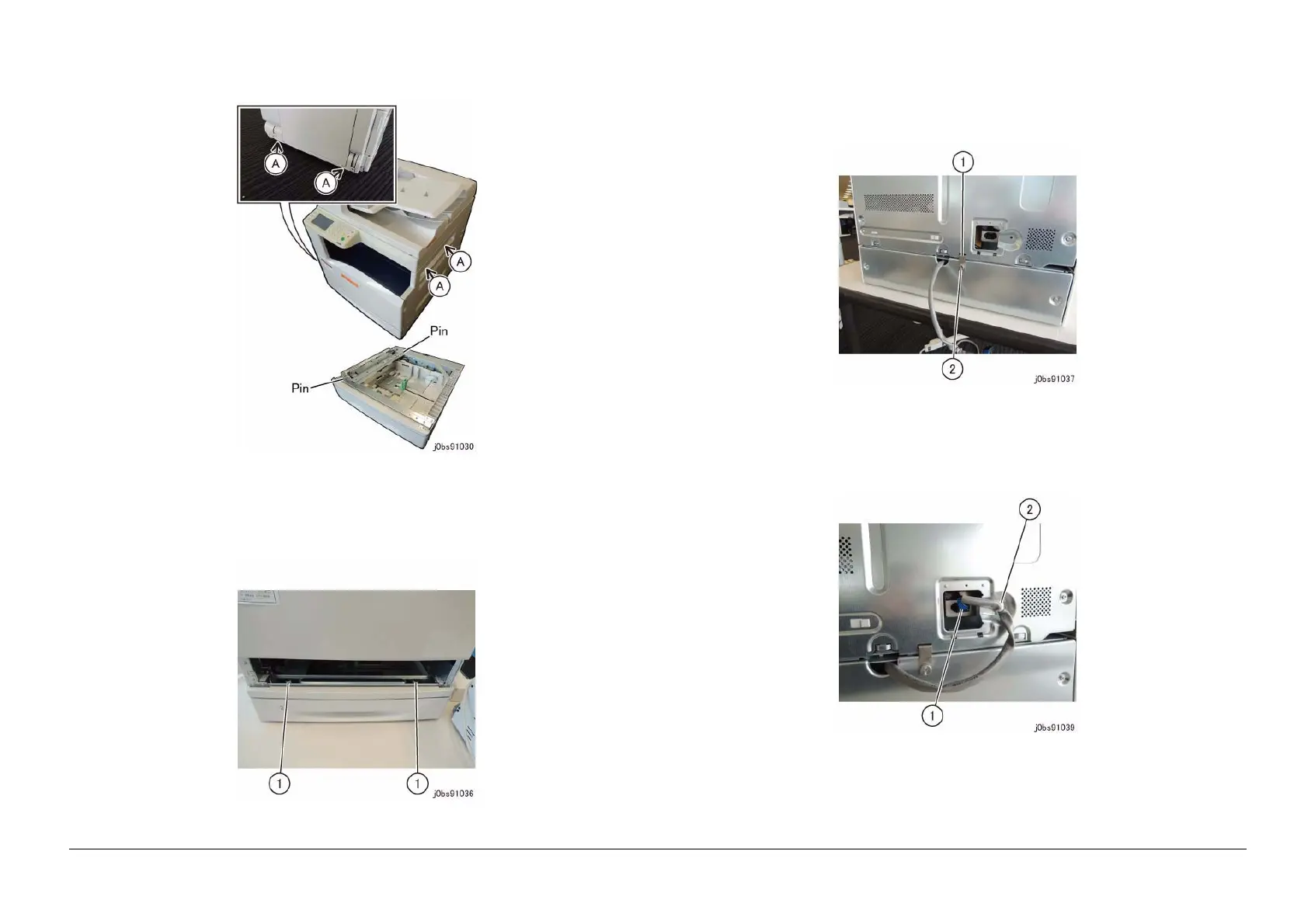

12. Hold onto the IOT at the indicated positions (A: x4) and align it to the positioning pin (x2) of the One
Tray Module to mount it. (Figure 9)
Figure 9 j0bs91030
13. Pull out and remove Tray 1.
14. Secure the One Tray Module to the IOT by using the Docking Screw (x2) in the kit. (Figure 10)
(1) Secure them by using the Docking Screw (x2).
Figure 10 j0bs91036
15. Reinstall Tray 1.
16. Fix Docking Bracket in the kit with Docking Screw in the kit. (Figure 11)
(1) Install the Docking Bracket.
(2) Secure them by using the Docking Screw.
Figure 11 j0bs91037
17. Connect the connector of the One Tray Module. (Figure 12)
(1) Connect the connector.
(2) Install the cable band.
Figure 12 j0bs91039
18. Install the STM Connector Cover. (Figure 13)
(1) Install the STM Connector Cover.
(2) Secure it by using the screw.
