9.1.6 Tray Lock Kit
Version 1.1

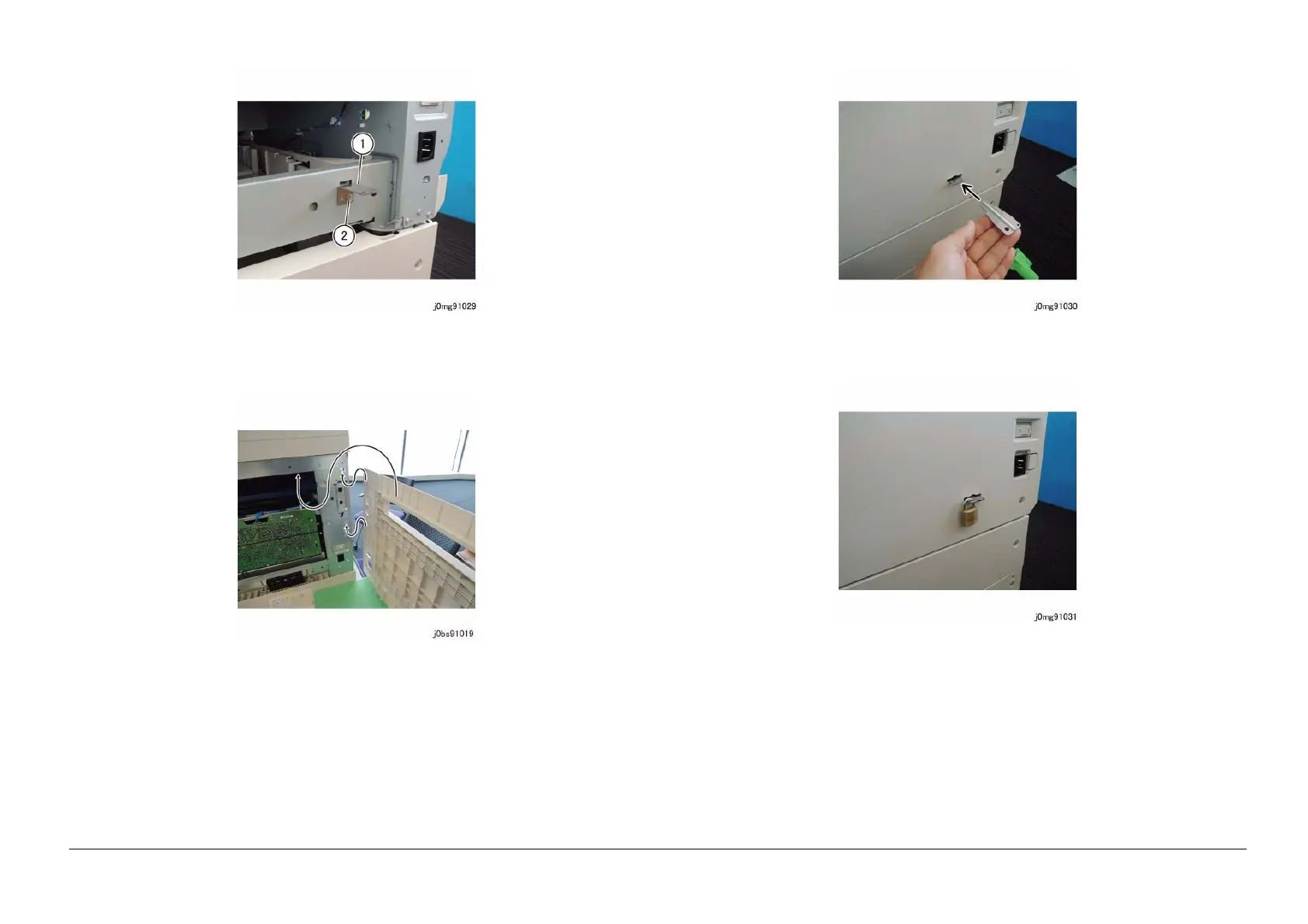

Figure 4 j0mg91029
7. Reinstall the Right Cover.
• Insert the hook (x2) of the Right Cover into the hole (x2) of the Frame. (Figure 5)
Figure 5 j0bs91019
8. Install the Tray Lock. (Figure 6)
Figure 6 j0mg91030
9. Attach a lock. (Figure 7)
Figure 7 j0mg91031
10. Plug the power cord into power outlet, and turn ON the power switch.
