Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
9-29
DC SC2020
Installation/Removal
9.1.7 Odor Filter Kit
Version 1.1

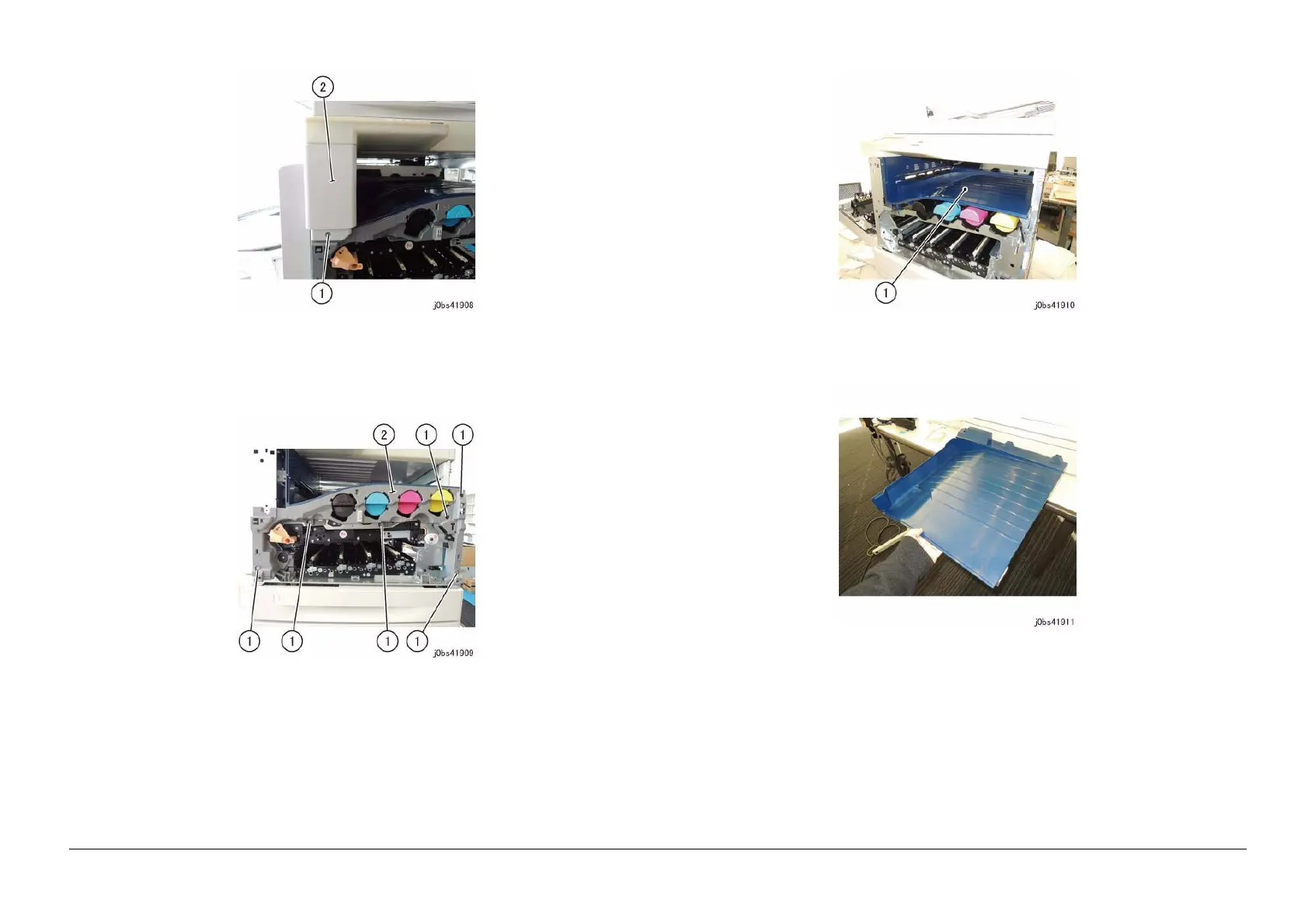

Figure 4 j0bs41908
9. Remove the Inner Cover. (Figure 5)
(1) Remove the Screw.
(2) Remove the Inner Cover.
Figure 5 j0bs41909
10. Remove the Top Cover. (Figure 6)
(1) Remove the Top Cover.
Figure 6 j0bs41910
NOTE: Indicates the removed Top Cover. (Figure 7)
Figure 7 j0bs41911
11. Attach the Duct from the removed Top Cover to the Top Cover from the Kit. (Figure 8)
