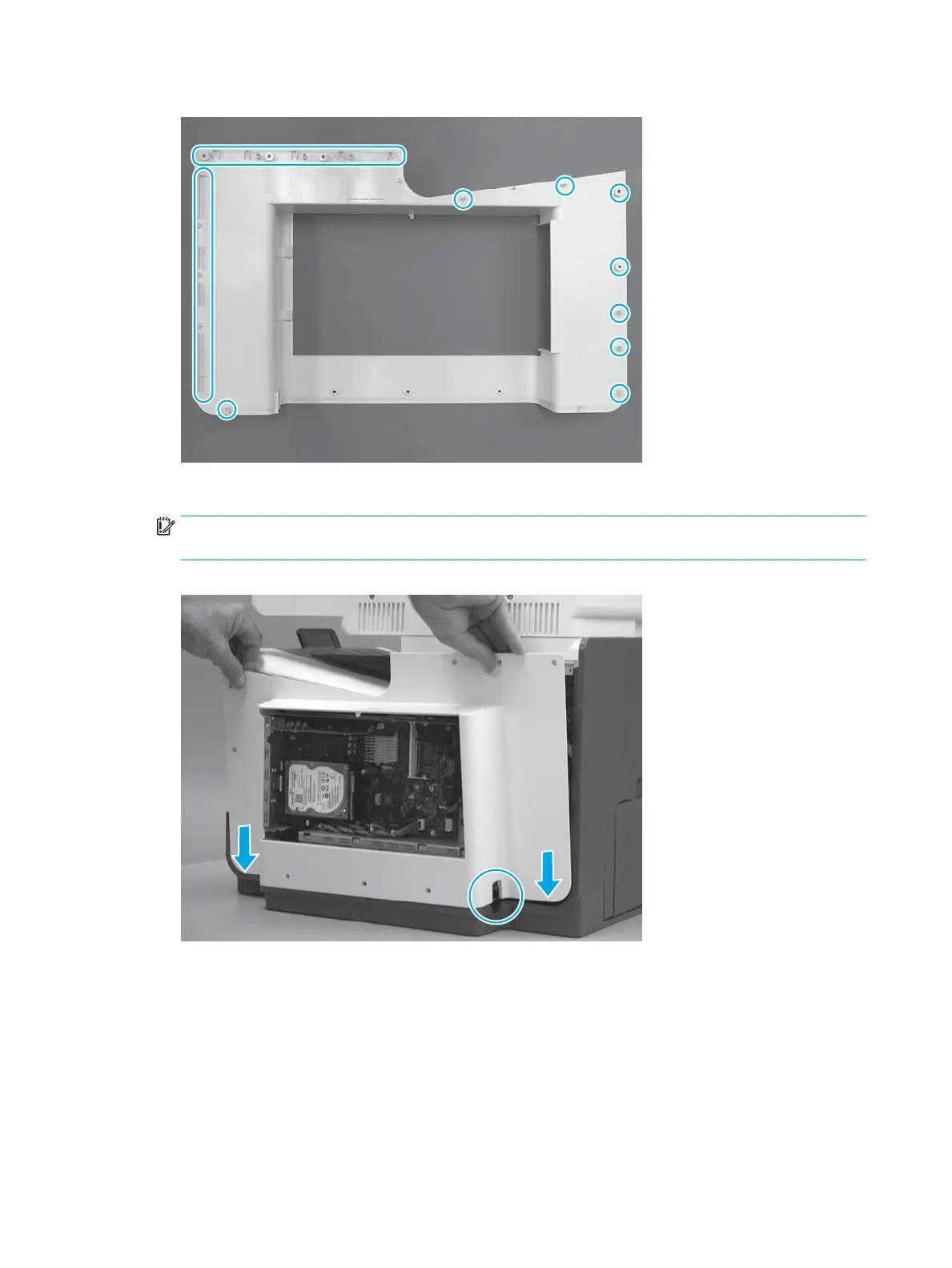

Figure 1-174 Find the tabs and bosses on the rear cover
2. Position the bottom edge of the cover on the printer.
IMPORTANT: Make sure that the inner two tabs on the cover bottom corners engages with the printer
chassis, and that the slot in the cover is tted correctly over the power supply receptacle.
Figure 1-175 Install cover
