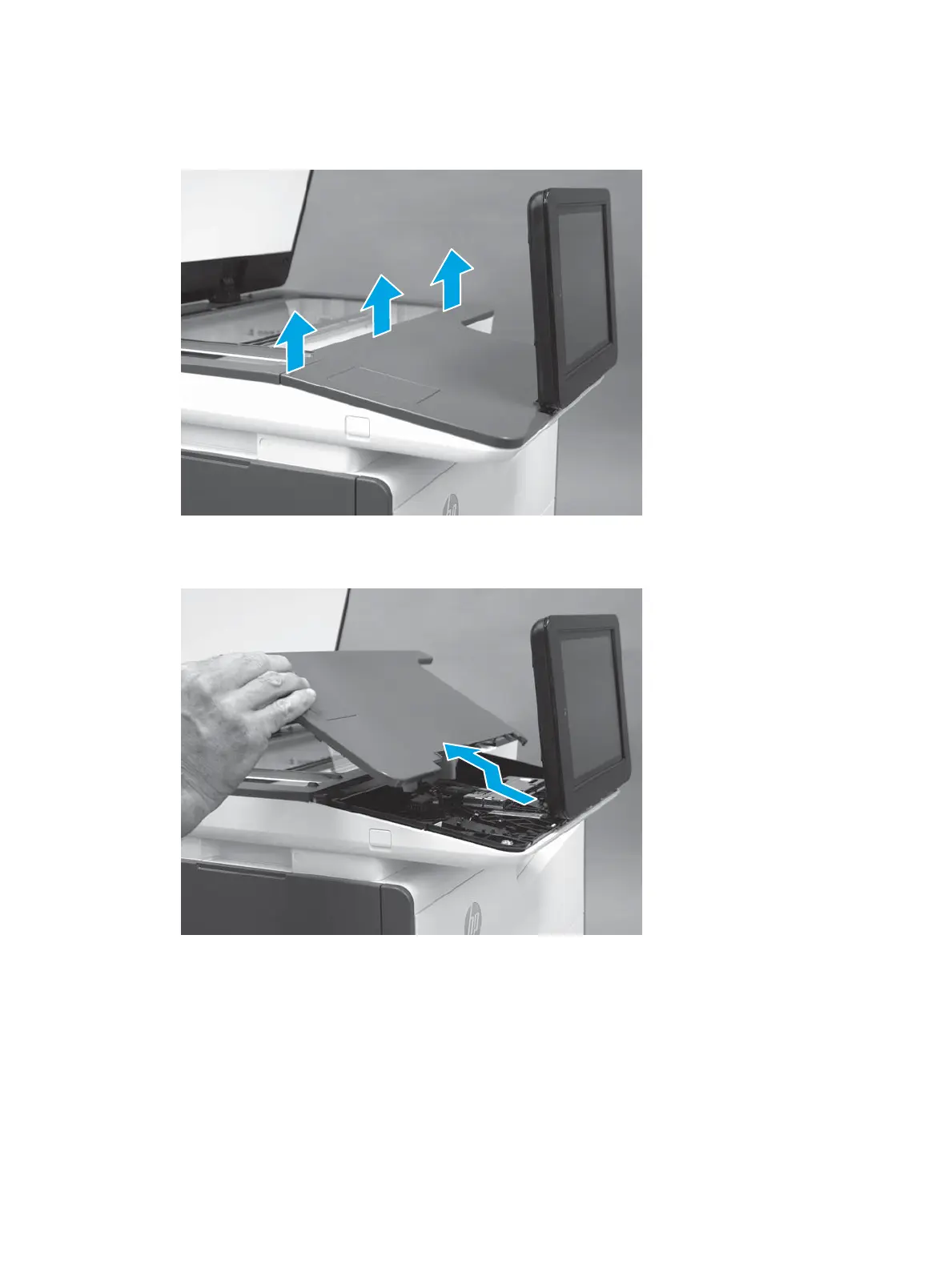

4. Beginning at the left side of the control-panel cover, carefully release three bosses along the top edge of
the cover.
Figure 1-198 Release three bosses
5. Lift up on the cover to release the right- and left-side bosses, and then remove the cover.
Figure 1-199 Remove the control-panel cover
156 Chapter 1 Removal and replacement ENWW
