HP PageWide Enterprise Color 556

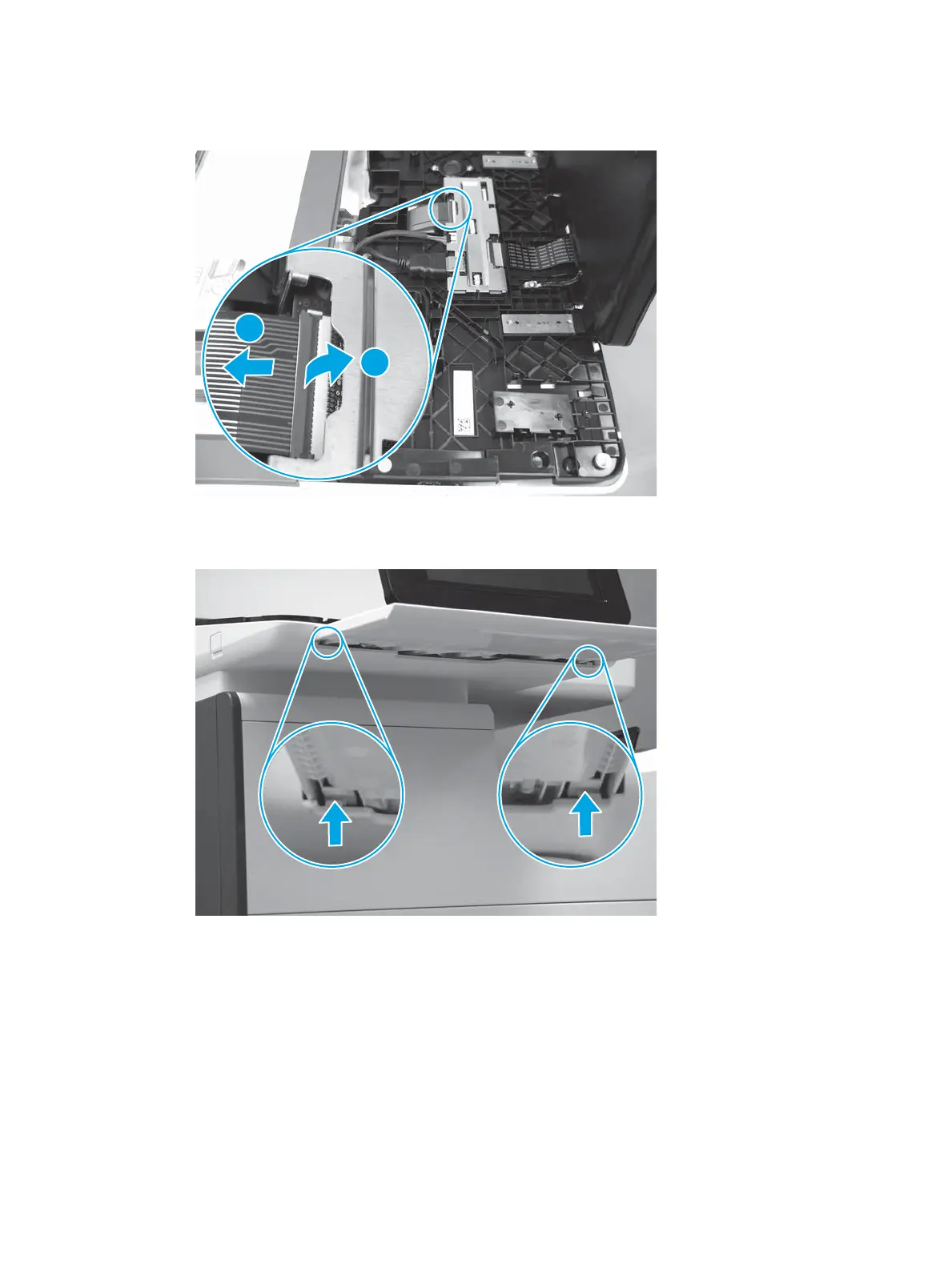

6. 586z only: Open the connector latch to release the keyboard at cable.
Figure 1-200 Release the keyboard cable (586z)
1
2
7. 586z only: Slide the keyboard out until it stops, and then release two tabs on the keyboard.
Figure 1-201 Release two tabs (586z)
ENWW Removal and replacement procedures 157
