HP PageWide Enterprise Color 556

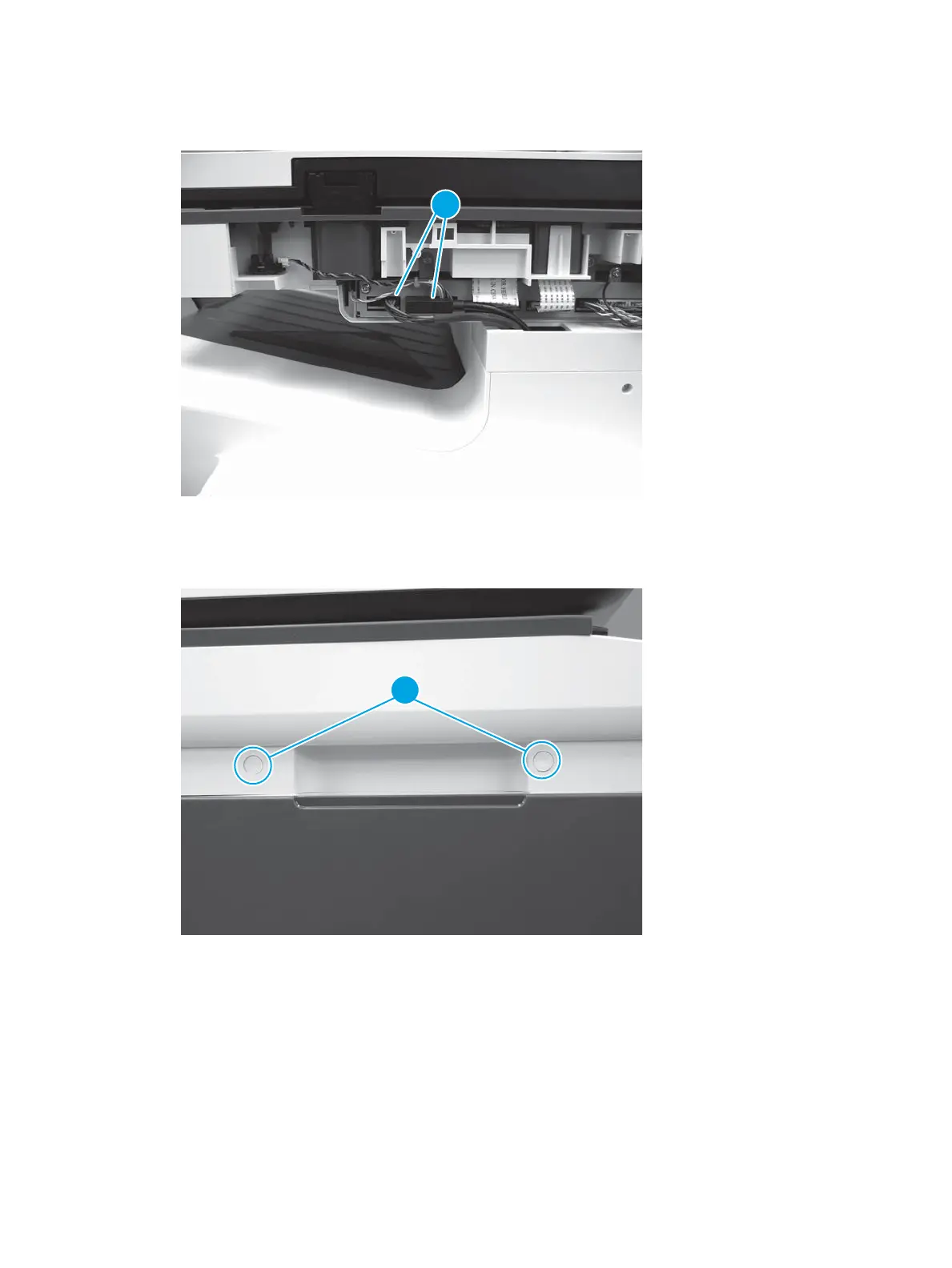

16. At the left end of the SCB, disconnect two connectors (callout 1).
Figure 1-210 Disconnect two connectors
1
17. At the left side of the printer, use a small at blade screwdriver to carefully remove two white rubber
plugs (callout 1).
Figure 1-211 Remove two plugs
1
162 Chapter 1 Removal and replacement ENWW
