HP PageWide Enterprise Color 556

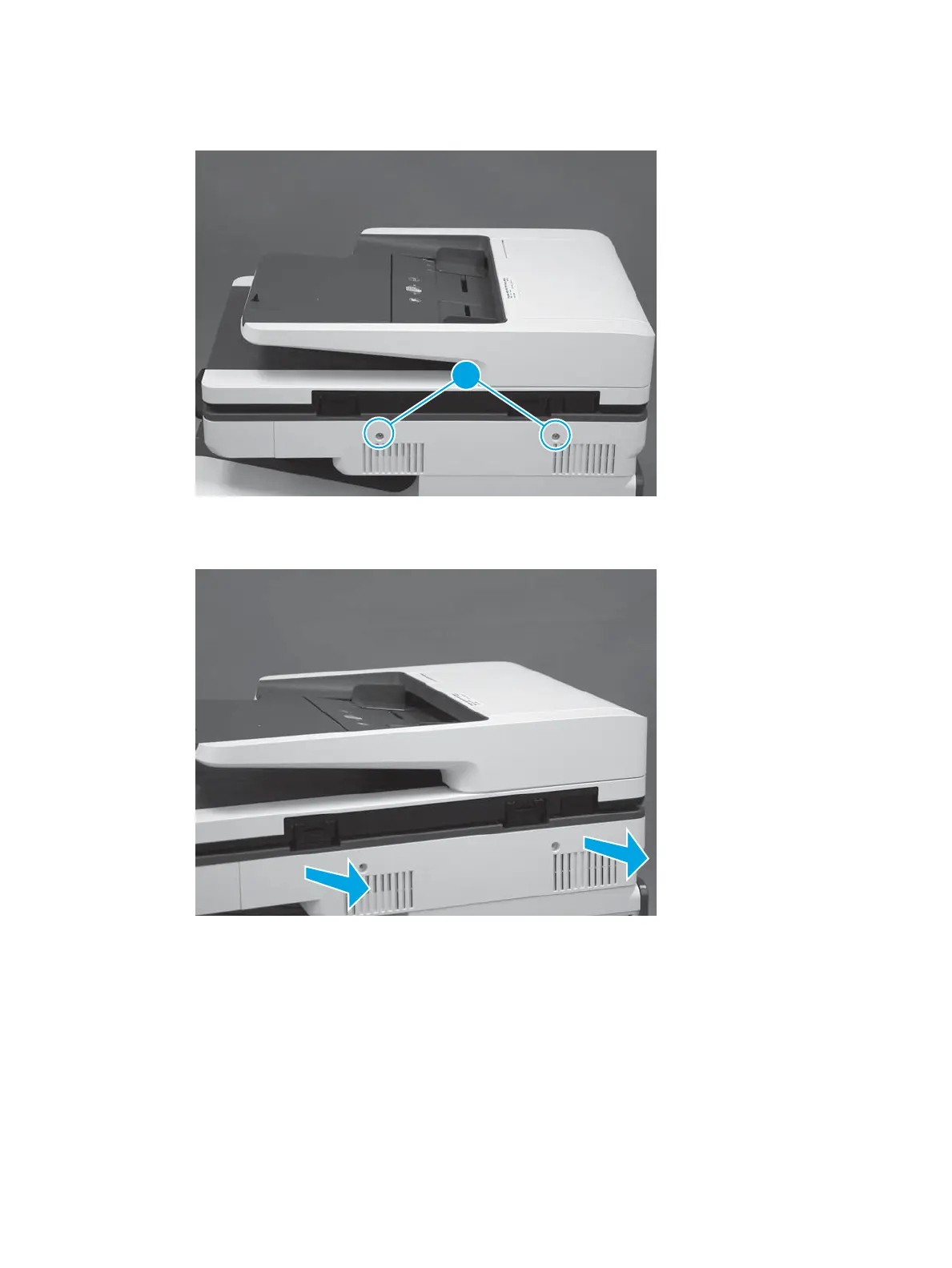

14. At the back of the printer, remove two screws (callout 1).
Figure 1-208 Remove two screws
1
15. Pull the scanner control board (SCB) cover straight o the printer to remove it.
Figure 1-209 Remove the SCB cover
ENWW Removal and replacement procedures 161
