HP PageWide Enterprise Color 556

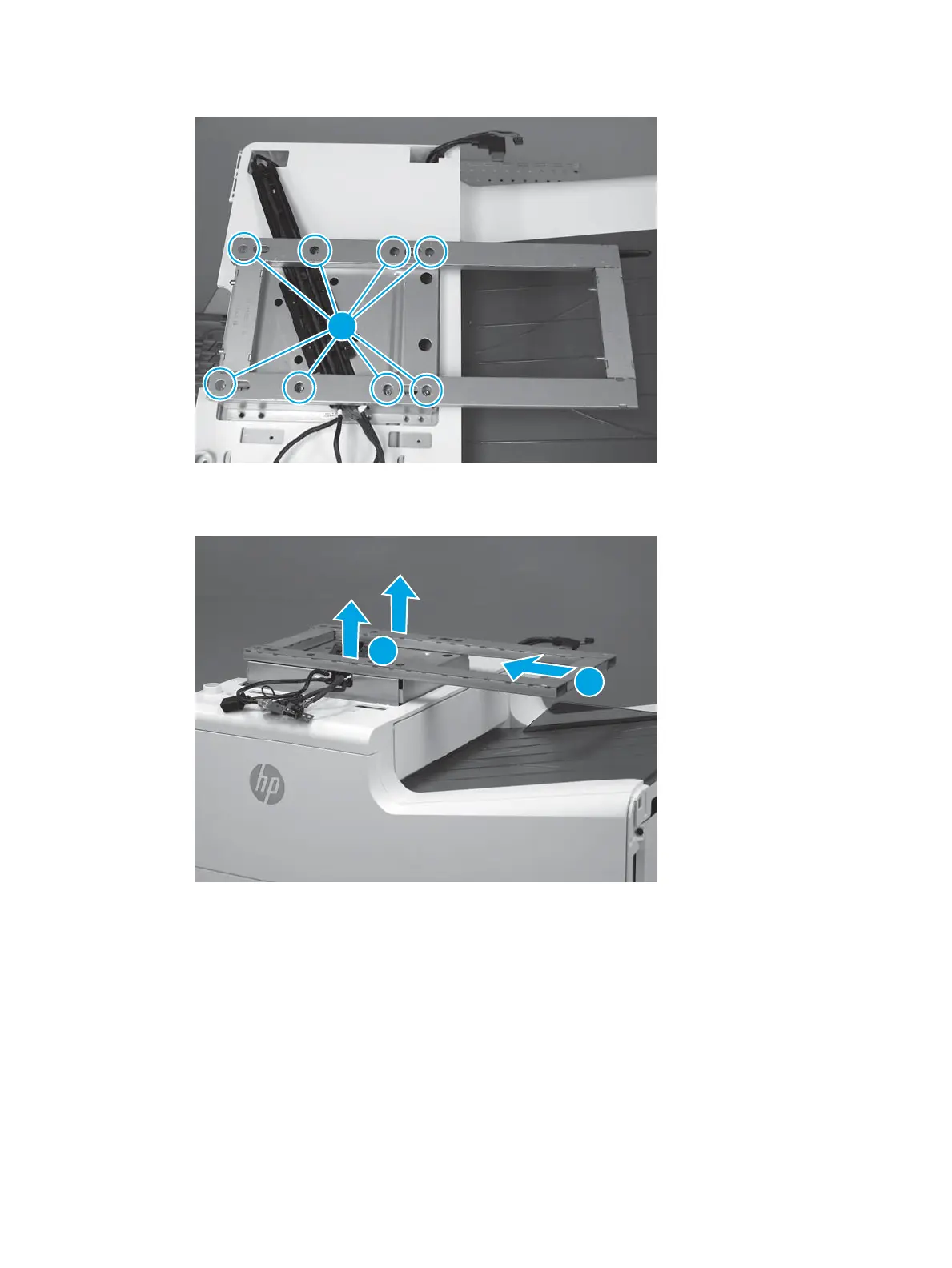

Figure 1-341 Remove eight screws
1
2. Slide the bracket to the left to release it, and then lift it straight up and o of the printer to remove it.
Figure 1-342 Slide the bracket left
1
2
ENWW Removal and replacement procedures 231
