21. 586z only: As the keyboard is installed, pass the at cable (callout 1) through the opening (callout 2) in
the control-panel base.

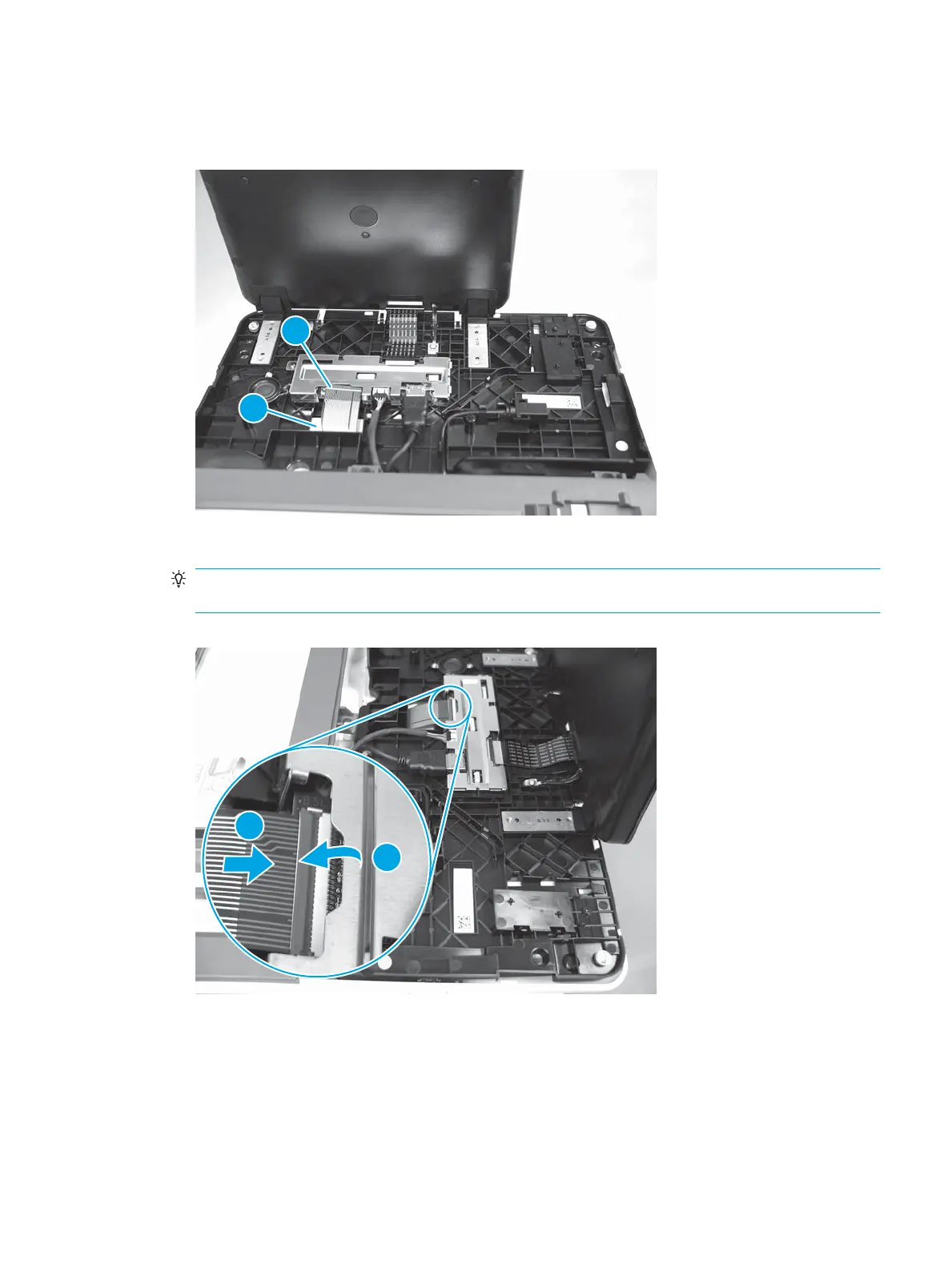

Figure 1-547 Pass the at cable through the opening
22. 586z only: Insert the Flat cable in the connector, and then close the latch.
TIP: When the at cable is correctly inserted in the connector, the white line on the at cable is parallel
to the connector body.
Figure 1-548 Connect the keyboard cable (586z)
ENWW Removal and replacement procedures 337
