HP PageWide Enterprise Color 556

8. 586z MFP only: Remove the keyboard.

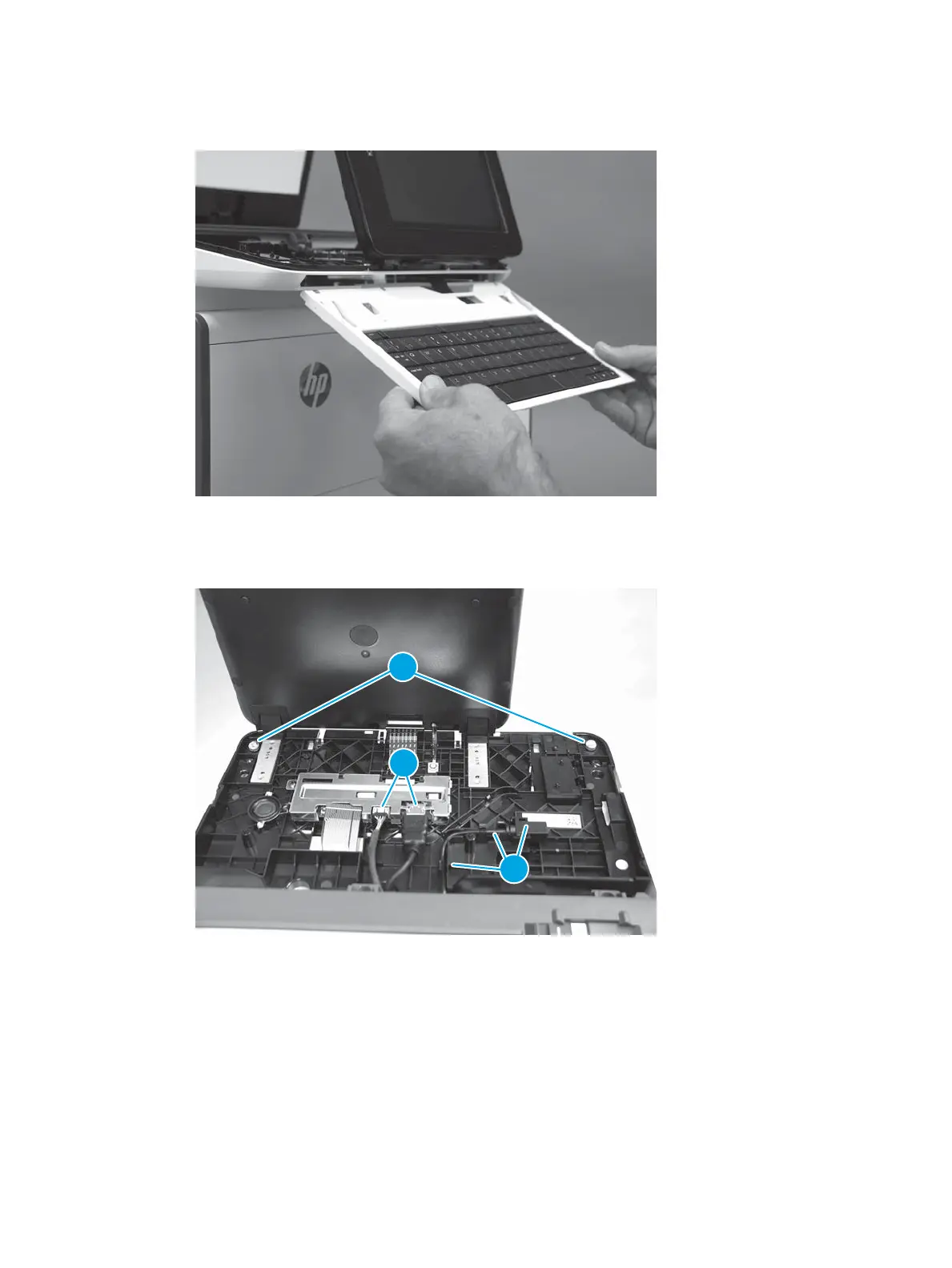

Figure 1-664 Remove the keyboard (586z)
9. Disconnect one HMDI cable and one connector (callout 1), release the USB cable from the holder and
retainers (callout 2), and then remove two thumbscrews (callout 3).
Figure 1-665 Disconnect connectors and remove thumbscrews
1
3
2
ENWW Removal and replacement procedures 409
