2. Position the SSA on the printer.
CAUTION: The ISA is bulky and heavy. Do not drop the SSA.
IMPORTANT: Keep the front of the SSA tilted up so the cables and wire harness are not damaged.

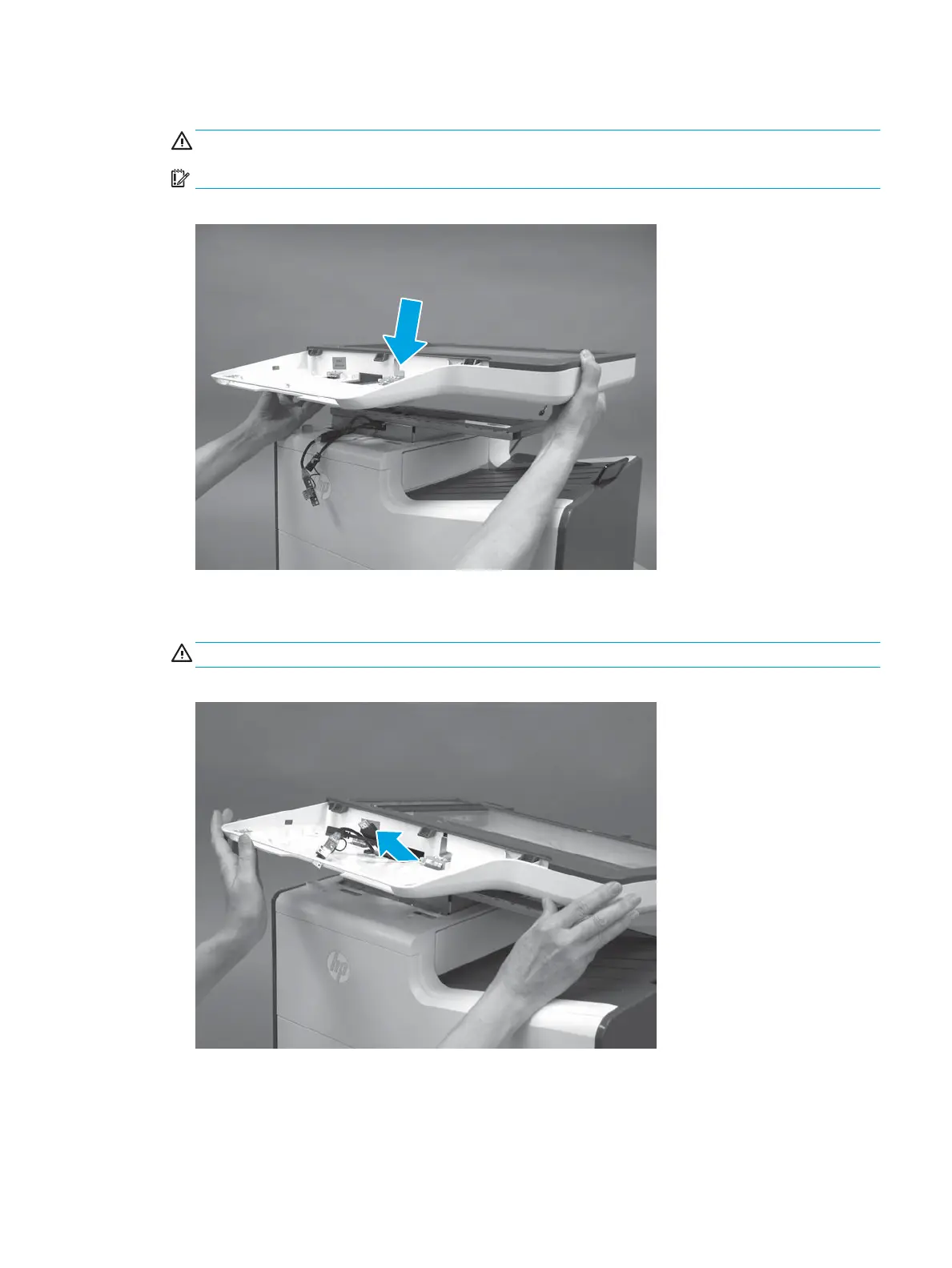

Figure 1-698 Install the ISA
3. With the front of the SSA tilted up, pass the wire harnesses and cables through the opening in the SSA
chassis.
CAUTION: The SSA is not captive on the printer base. Do not let it fall o of the printer base.
Figure 1-699 Pass the wire harnesses and cables through the opening
ENWW Removal and replacement procedures 427
