HP PageWide Enterprise Color 556

4. Lower the front of the SSA, and then slightly slide it toward the right side of the printer to engage it.

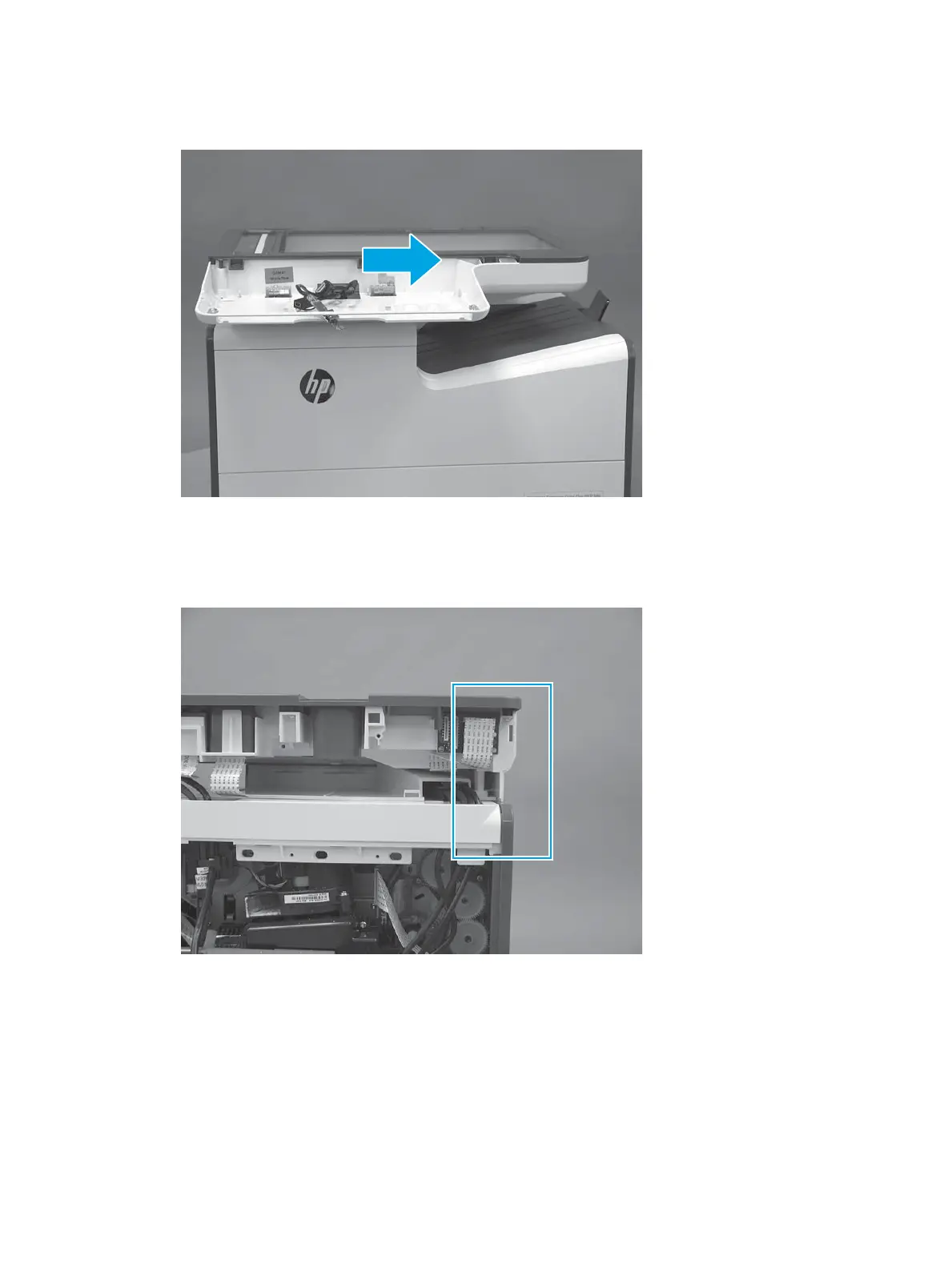

Figure 1-700 Slide the SSA right
5. Before proceeding, at the back of the printer, look at the alignment of the SSA and printer base to verify
that the SSA is fully seated on the printer base. The edge of the SSA should be in line with the side of the
printer base.
Figure 1-701 Check the SSA and printer base alignment
