5. Securely hold the retainer clip with needle-nose pliers and position the tab (callout 1) in the slot
(callout 2) in the printer.
CAUTION: This clip is not captive and can easily fall inside the printer. Make sure to hold the clip
securely when installing it.

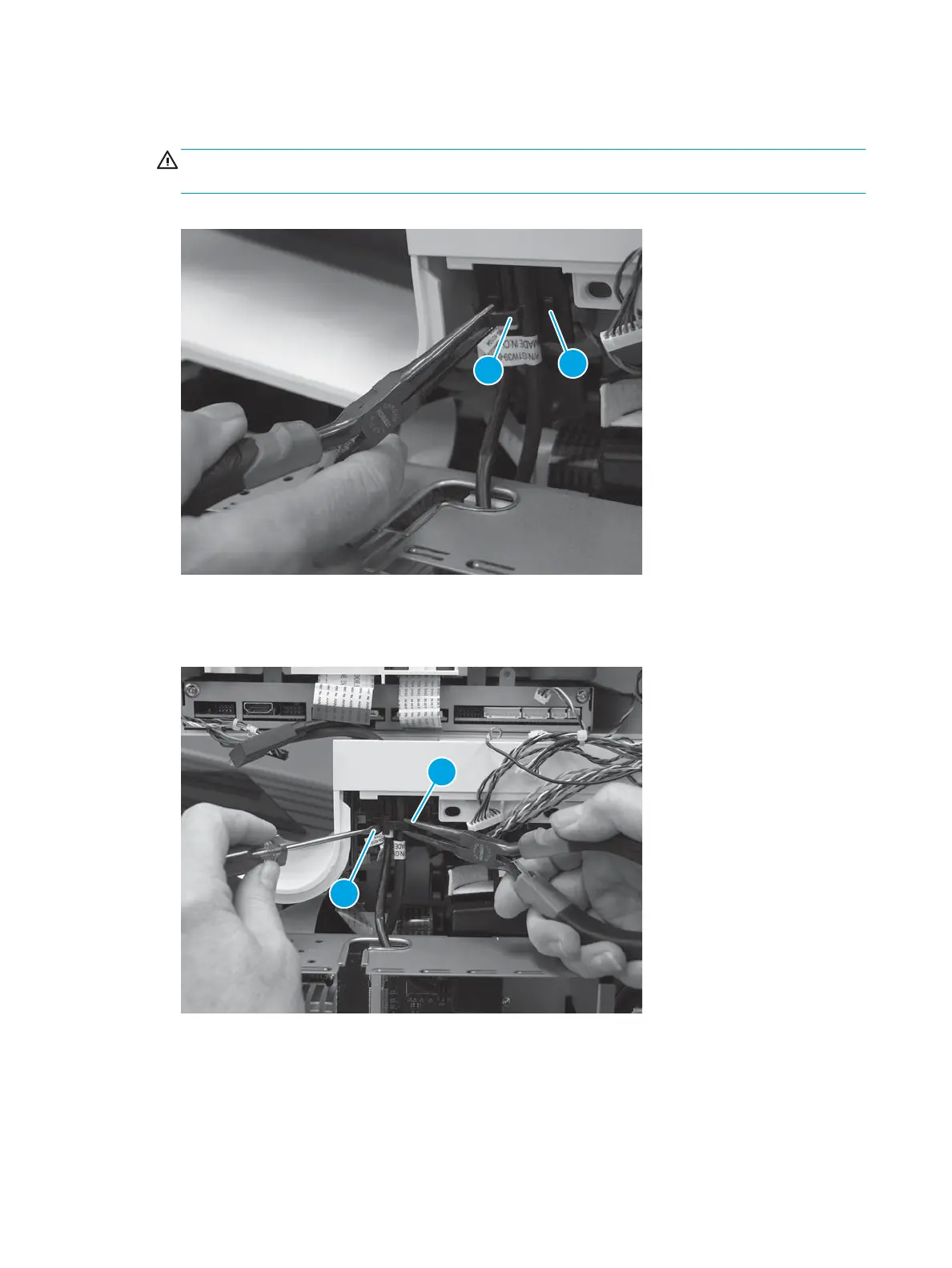

Figure 1-716 Engage the clip
6. Securely hold one end of the retainer clip with needle-nose pliers (callout 1), and then use a small, at-
blade screwdriver (callout 2) to install the other end of the clip.
Figure 1-717 Install the clip
436 Chapter 1 Removal and replacement ENWW
