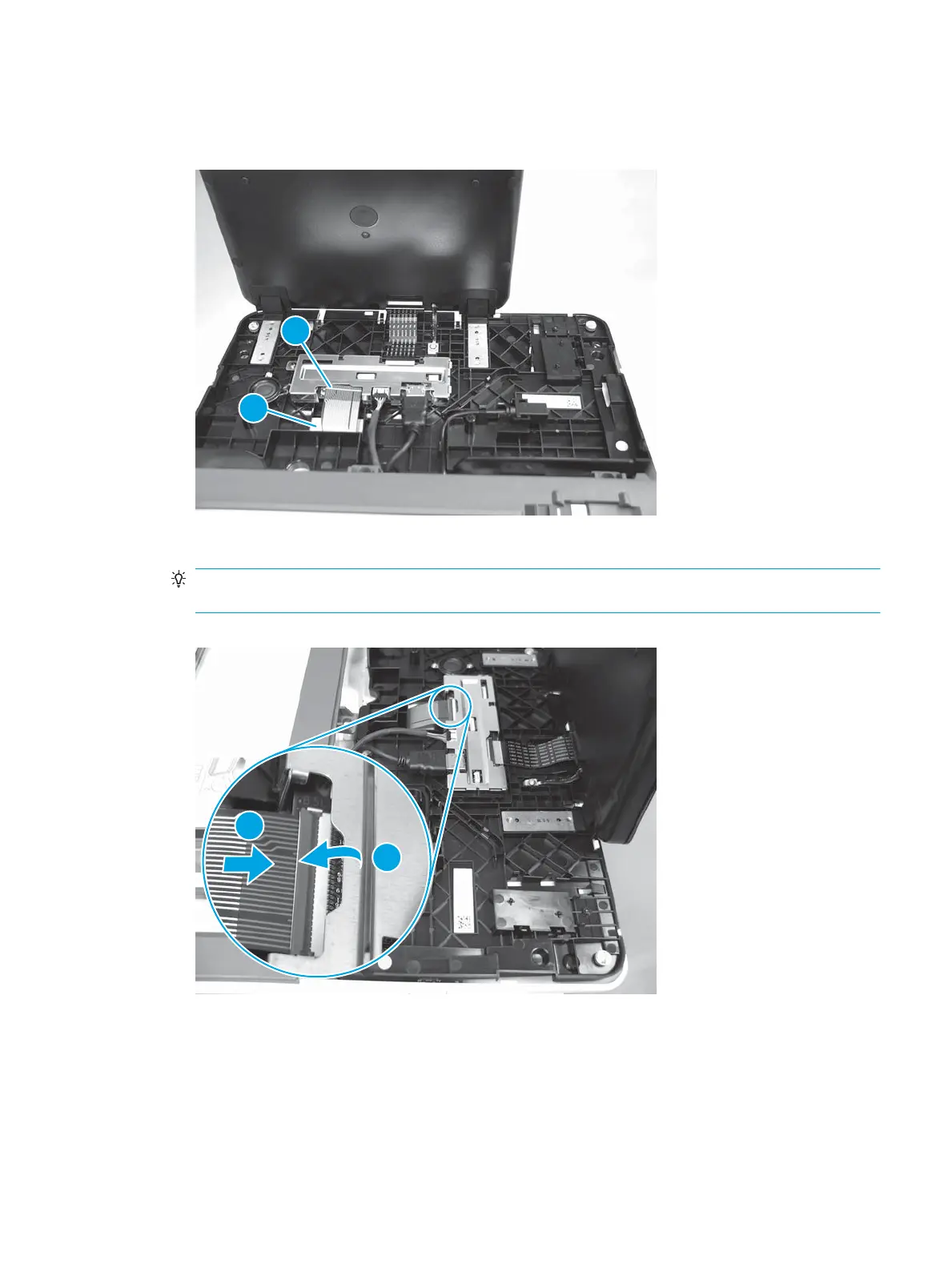

5. 586z only: Make sure to feed the keyboard at cable (callout 1) through the opening (callout 2) in the
control-panel base when installing the key board.
Figure 1-734 Pass the at cable through the opening (586z)
6. 586z only: Insert the at cable in the connector, and then close the latch.
TIP: When the Flat cable is correctly inserted in the connector, the white line on the at cable is
parallel to the connector body.
Figure 1-735 Connect the keyboard cable (586z)
ENWW Removal and replacement procedures 445
