3. If any of the retention clips (callout 1) remain attached to the white backing (or are damaged), go to step
4.
If none of the retention clips remain attached to the white backing (or are not damaged), go to Step 2:
Unpack the replacement assembly on page 30.

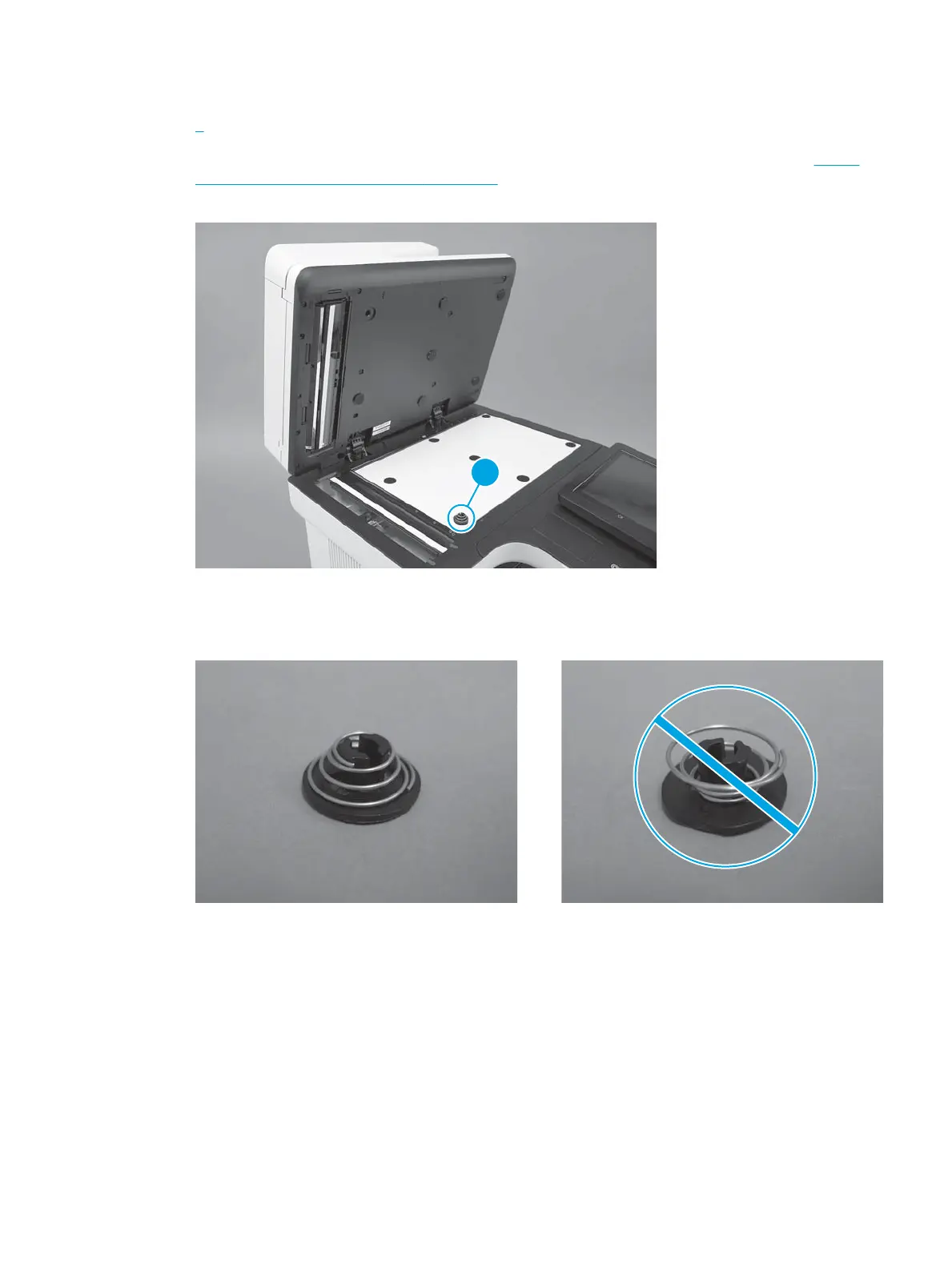

Figure 1-23 Check the white backing
4. Verify that the spring is positioned correctly on the retention clip (replacement clips are supplied with
this kit).
Figure 1-24 Check the clip spring
ENWW Removal and replacement procedures 29
