HP PageWide Enterprise Color 556

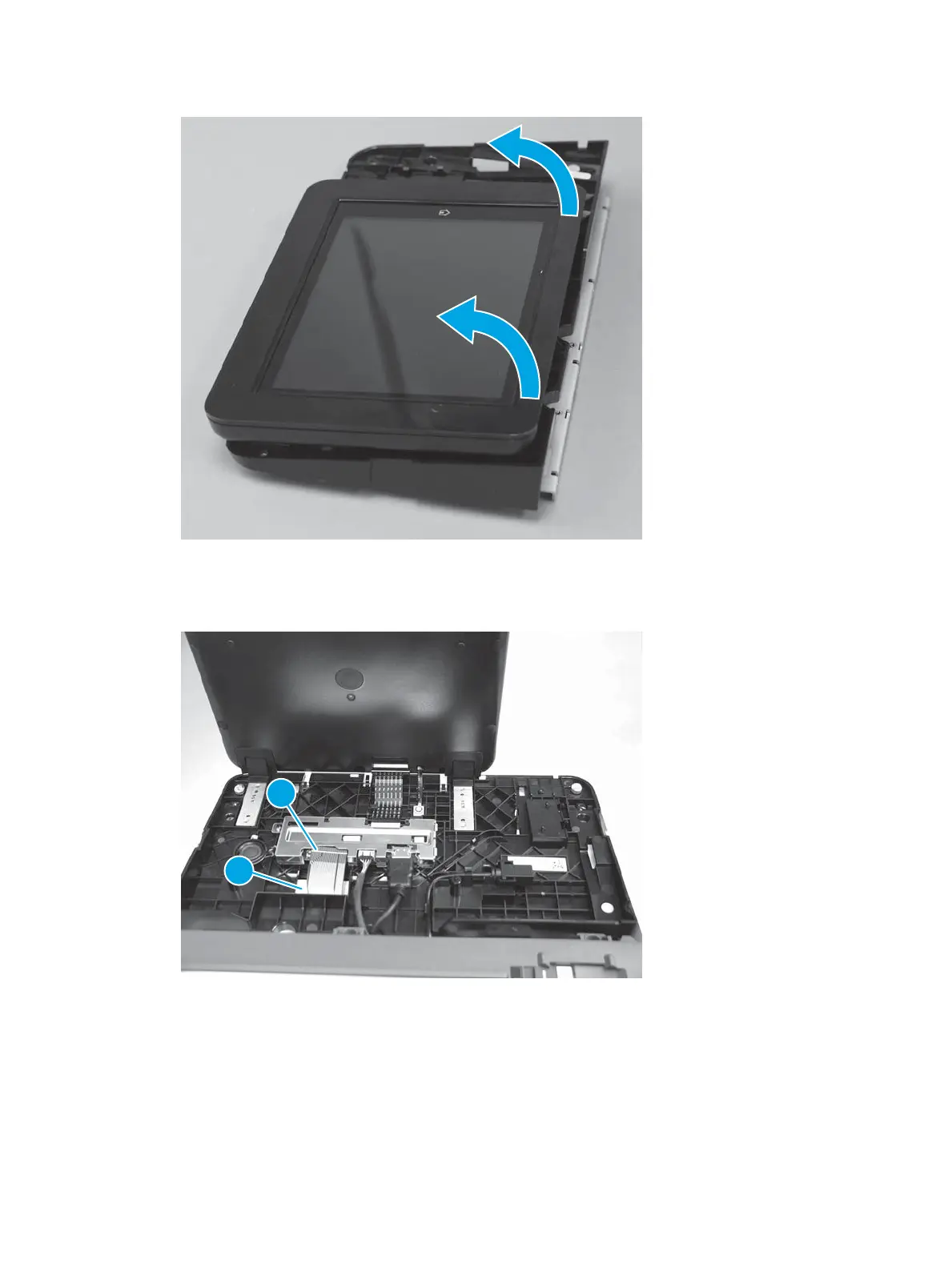

Figure 1-39 Open the replacement control panel
2. 586z only: Make sure to feed the keyboard at cable (callout 1) through the opening (callout 2) in the
control-panel base when installing the control panel.
Figure 1-40 Pass the at cable through the opening
1
2
40 Chapter 1 Removal and replacement ENWW
