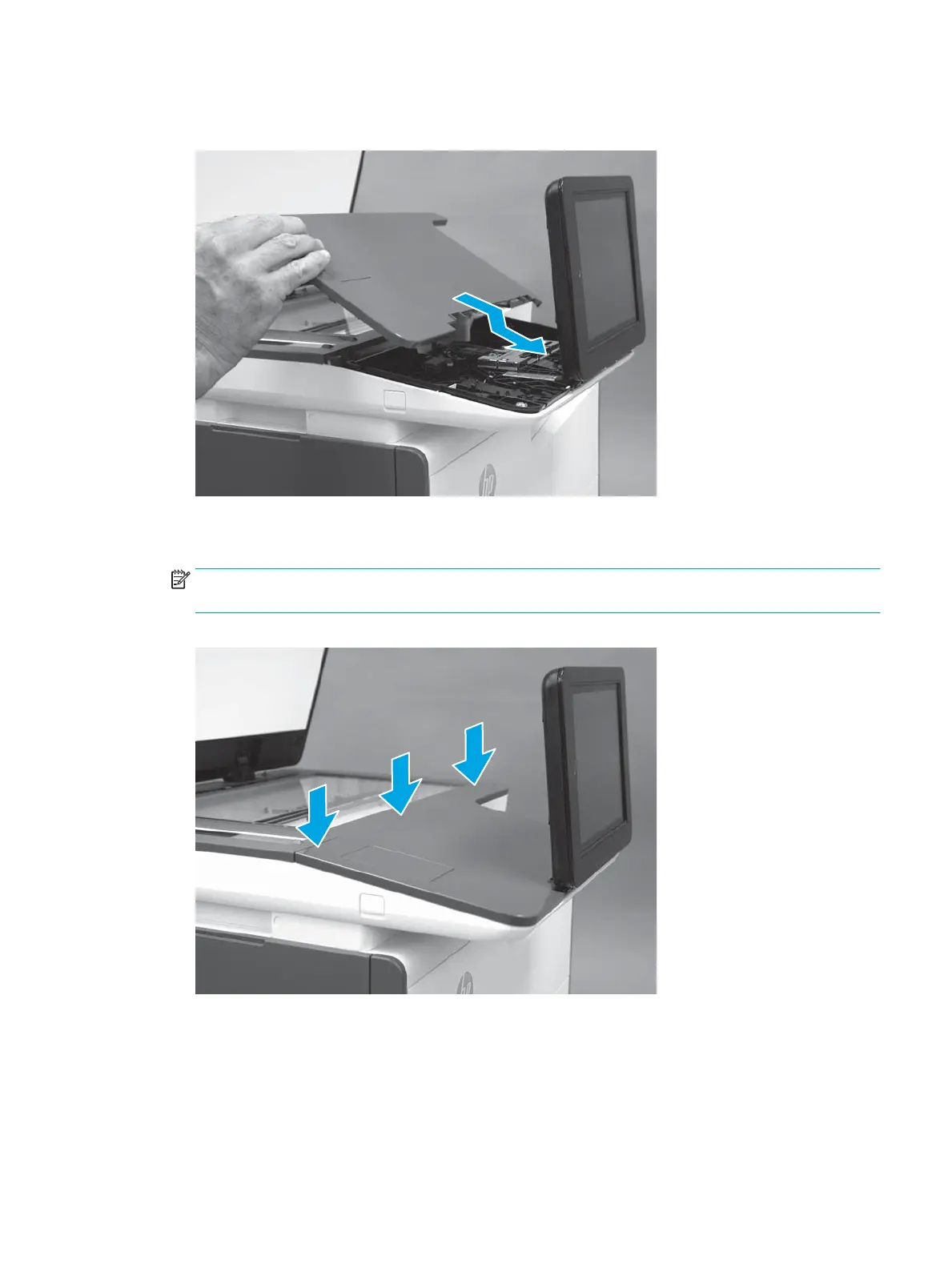

7. Position the control-panel cover on the control panel.
Figure 1-45 Install the cover
8. Beginning at the right side of the control-panel cover, carefully push down along the top edge of the
cover to engage the bosses.
NOTE: If the right- and left-side bosses are not fully engaged, push down along the edge of the cover
to fully seat them.
Figure 1-46 Engage three bosses
ENWW Removal and replacement procedures 43
