5. Use the screwdriver provided in the kit to install two screws (callout 1). Connect one HMDI cable and one
connector (callout 2), and then install the USB cable in the holder and retainers (callout 3).

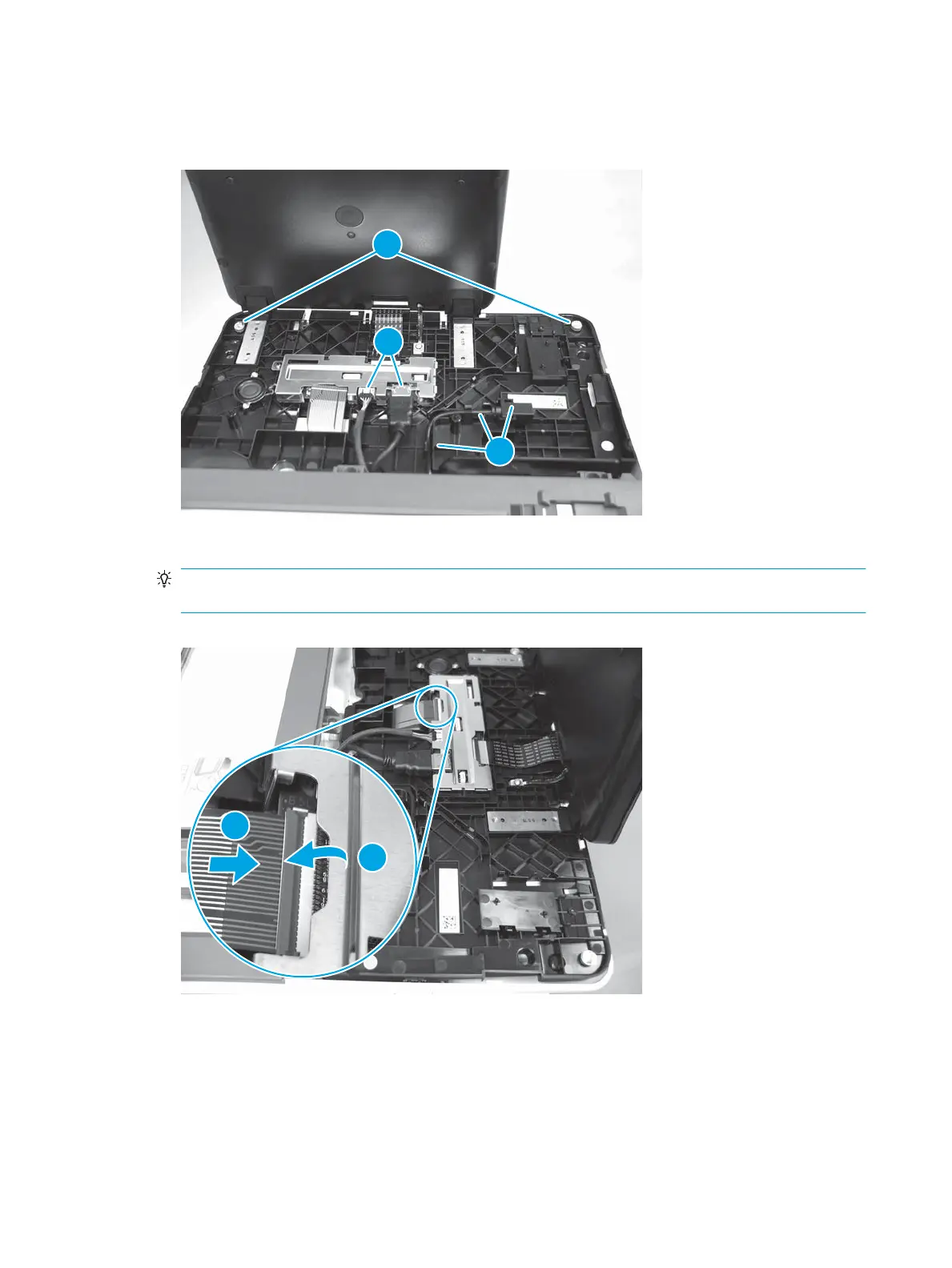

Figure 1-43 Install thumbscrews and connect connectors
6. 586z only: Insert the at cable in the connector, and then close the latch.
TIP: When the at cable is correctly inserted in the connector, the white line on the at cable is parallel
to the connector body.
Figure 1-44 Connect the keyboard cable (586z)
42 Chapter 1 Removal and replacement ENWW
