3 - 30
IPN 074-397-P1G
HAPSITE Smart Operating Manual

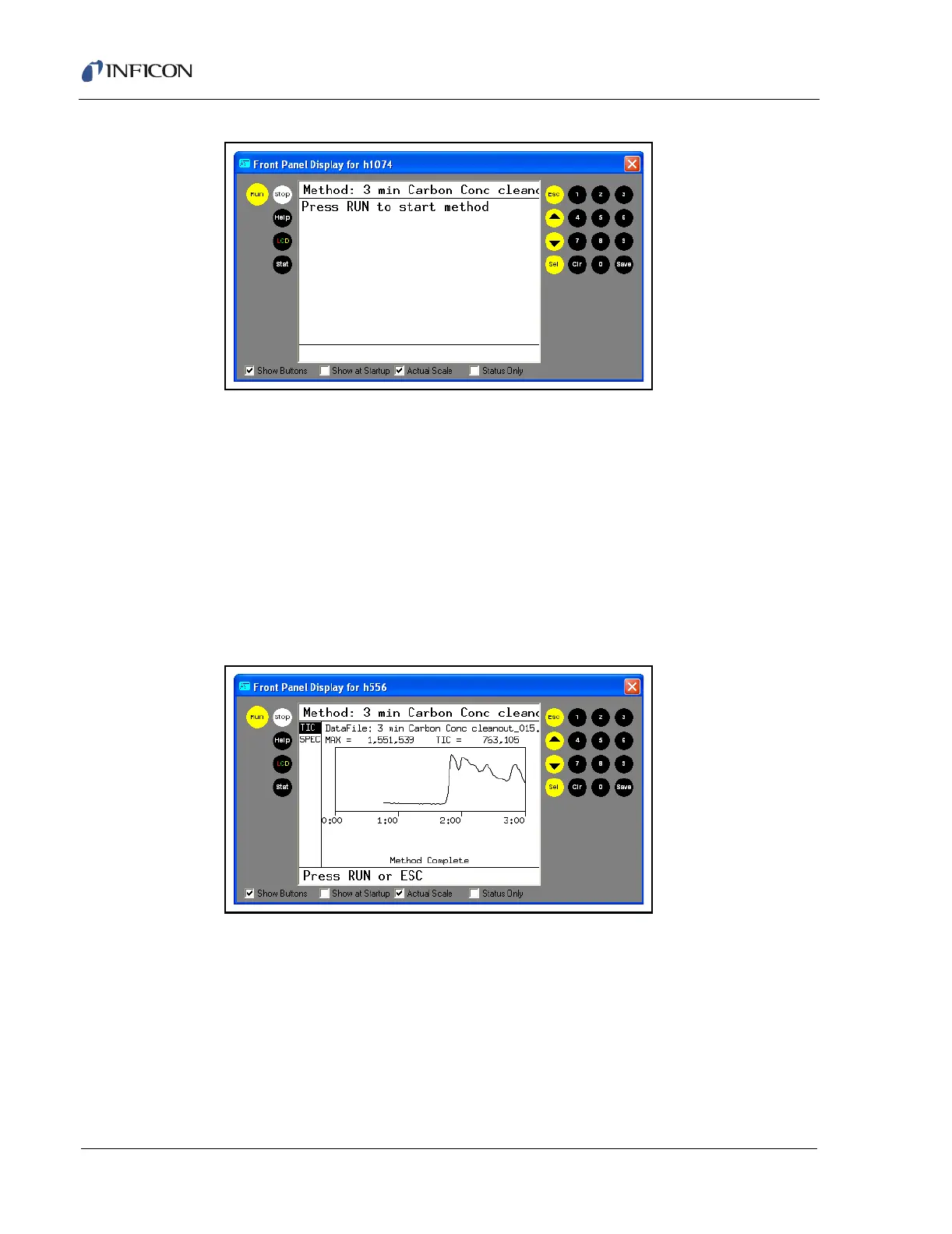

Figure 3-40 Front Panel Run Prompt
5 Press the RUN button on the Front Panel or on the Probe. This run will take
approximately three minutes to complete. The progress of the run can be seen
on the Front Panel. See Figure 3-41.
NOTE: The MAX_TIC number on the top left of the LCD must be less than
500,000 for the concentrator tube to be considered clean. If the MAX
TIC number is greater than 500,000, repeat the 3 min Carbon Conc
Cleanout method until the MAX_TIC number becomes less than
500,000. Please note, in Figure 3-41 the MAX_TIC is 1,551,539
therefore, the concentrator is NOT clean. The 3 min Carbon Conc
Cleanout would need to be run again in this example.
Figure 3-41 Front Panel 3 min Carbon Conc Cleanout Run
6 When the 3 min Carbon Conc Cleanout method is completed and the MAX_TIC
count is less than 500,000, press ESC to exit the method. The system is now
clean enough to run the Air 15 min Carbon Conc method. See Figure 3-42.
