8 - 6

IPN 074-397-P1G

HAPSITE Smart Operating Manual

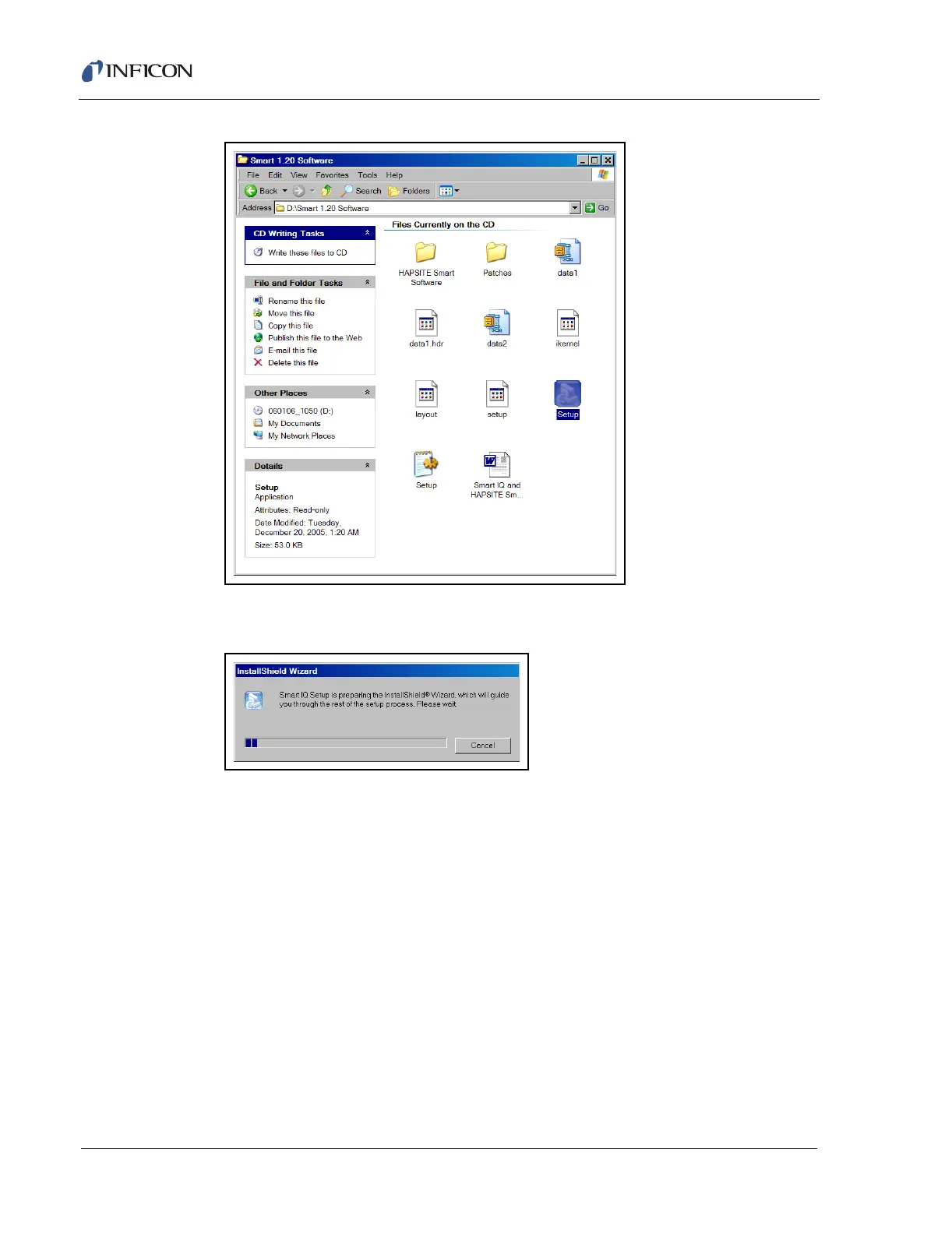

Figure 8-8 Selecting the Setup Icon

3 The InstallShield Wizard will load. See Figure 8-9.

Figure 8-9 InstallShield Wizard

4 An installation wizard will automatically open to the Welcome Screen. Select

Next. See Figure 8-10.
