8 - 18

IPN 074-397-P1G

HAPSITE Smart Operating Manual

4 Double-click the GCMS folder (or Survey folder for a Survey method). See

Figure 8-31.

HINT: Make sure HAPSITE is selected at the top of the Save Method File

dialog. See Figure 8-31.

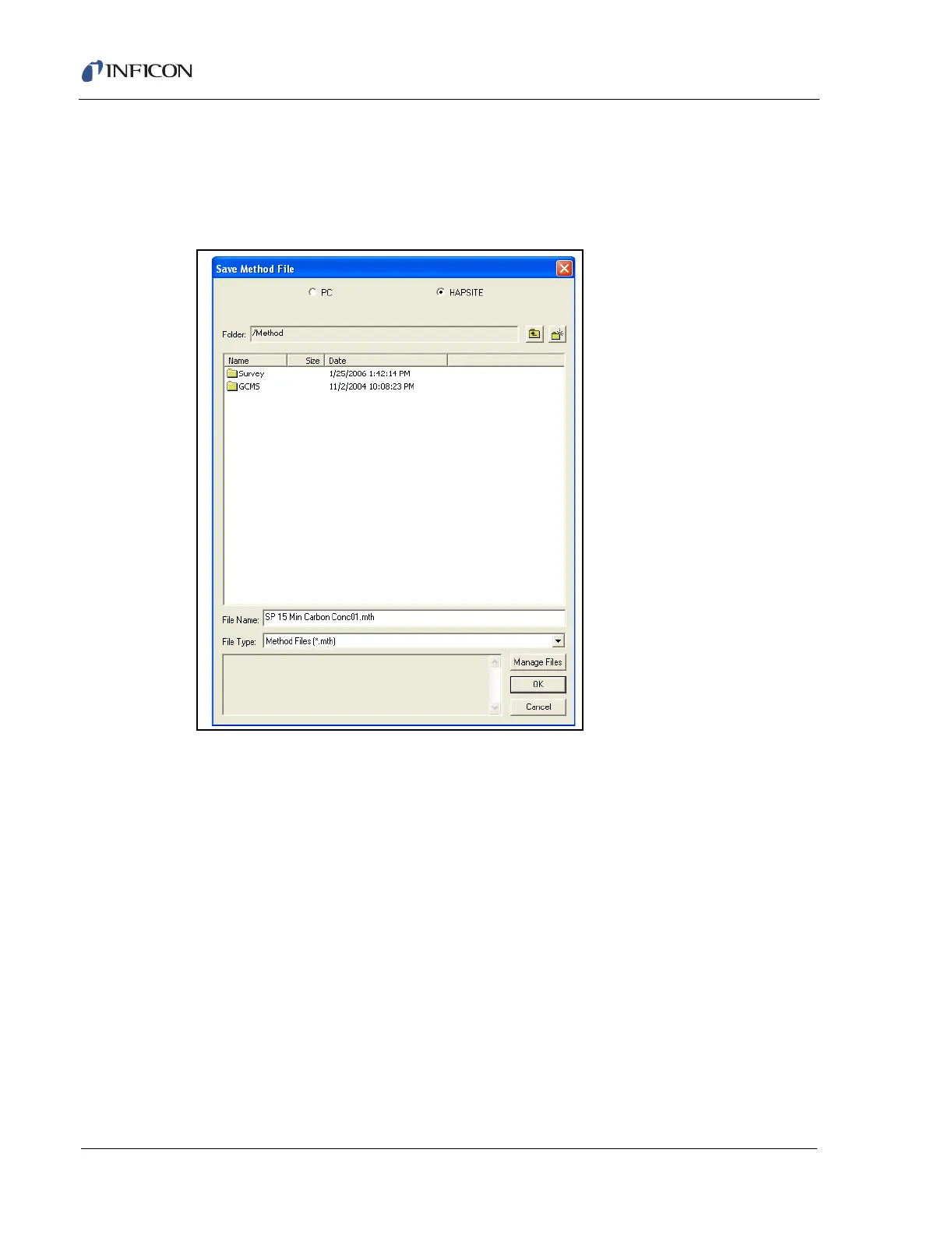

Figure 8-31 Choosing the GCMS Folder
