8 - 19

IPN 074-397-P1G

HAPSITE Smart Operating Manual

5 Double-click on the appropriate folder for the method to be saved. SeeFigure

8-32.

HINT: If using a Survey Method, skip Step 5.

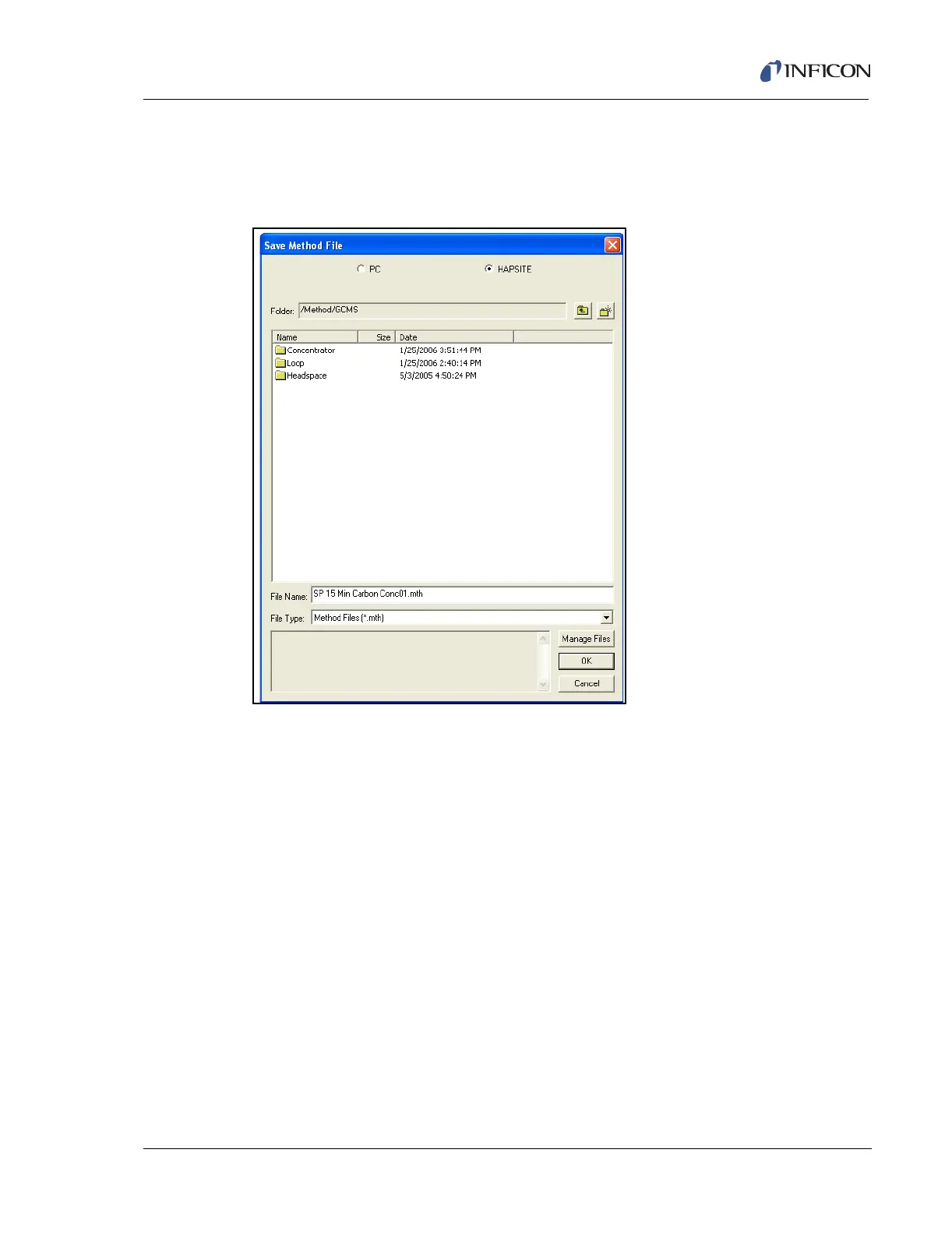

Figure 8-32 Choosing the Concentrator Folder

6 The default name is automatically modified by Smart IQ, or it can be manually

renamed. Press OK. The method is now saved to the HAPSITE.
