8 - 29

IPN 074-397-P1G

HAPSITE Smart Operating Manual

4 Check the box for Use Startup Method. See Figure 8-51.

5 Click on Browse to select a method. See Figure 8-51.

6 Double-click on the desired method folder (Example:GCMS). See Figure

8-52.

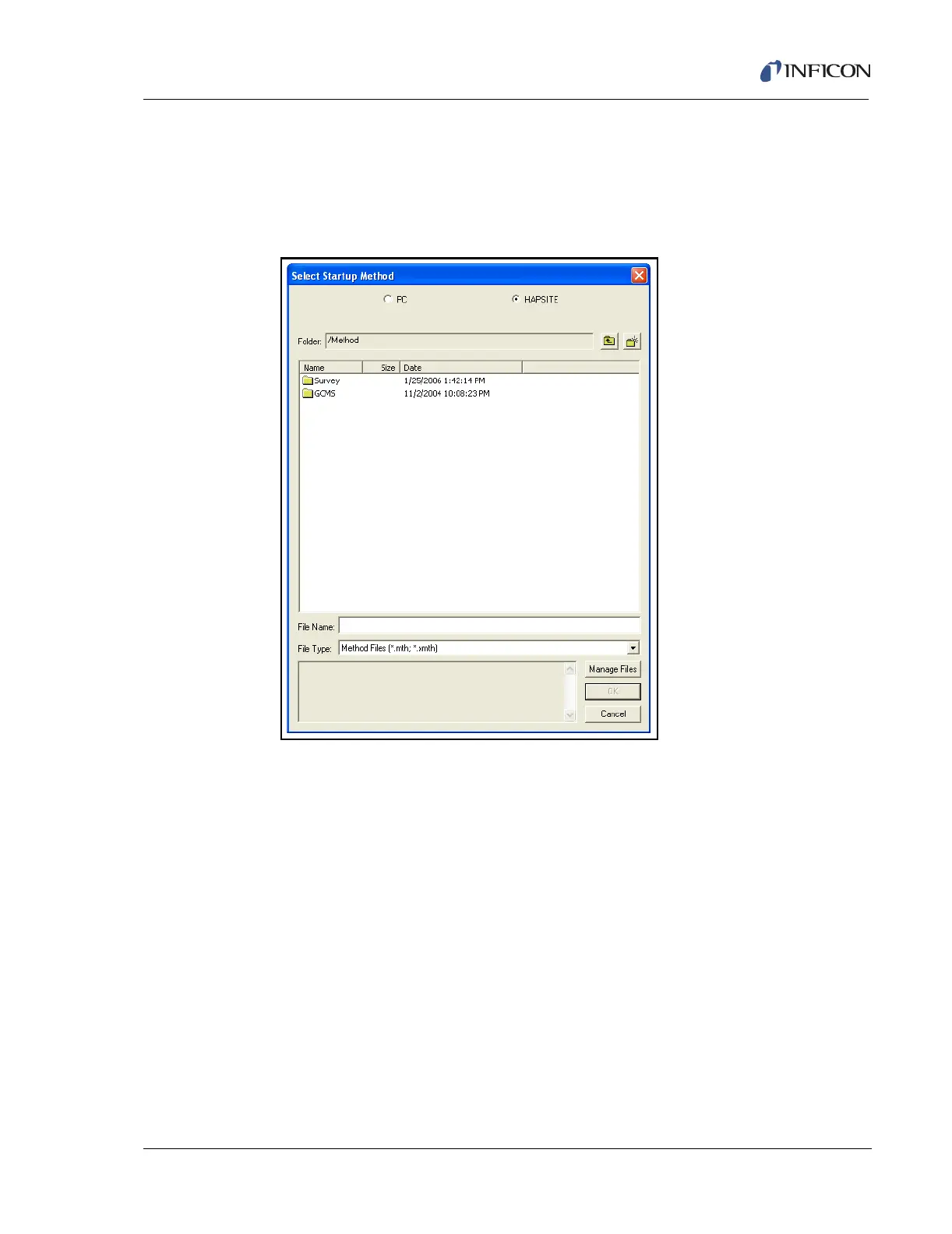

Figure 8-52 Selecting Startup Method
