8 - 30

IPN 074-397-P1G

HAPSITE Smart Operating Manual

7 Double-click on the desired configuration (EXAMPLE: Loop). See Figure 8-53.

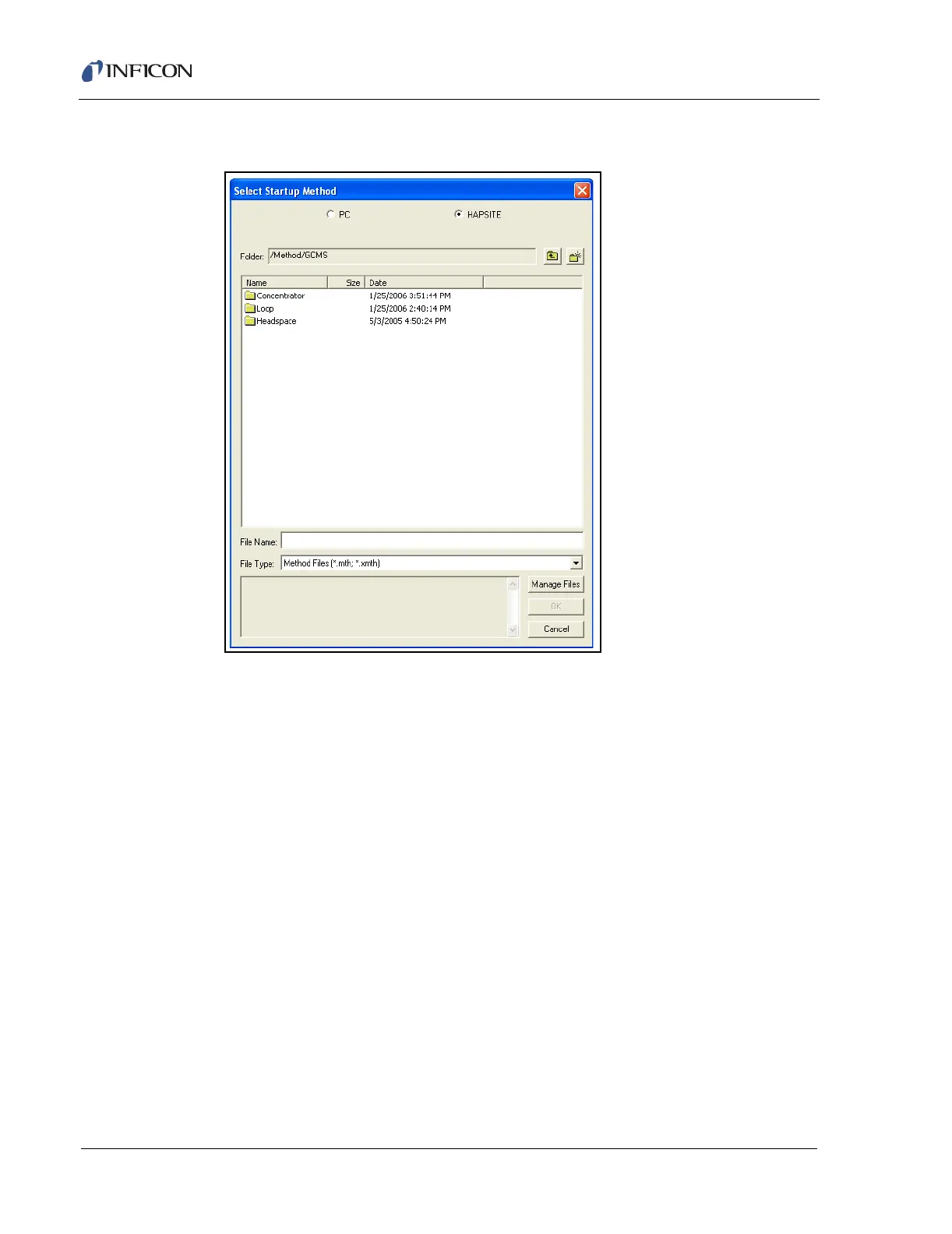

Figure 8-53 Method Folders
