8 - 31

IPN 074-397-P1G

HAPSITE Smart Operating Manual

8 Double-click on the desired method. (EXAMPLE: Air 15 min Loop) See Figure

8-54.

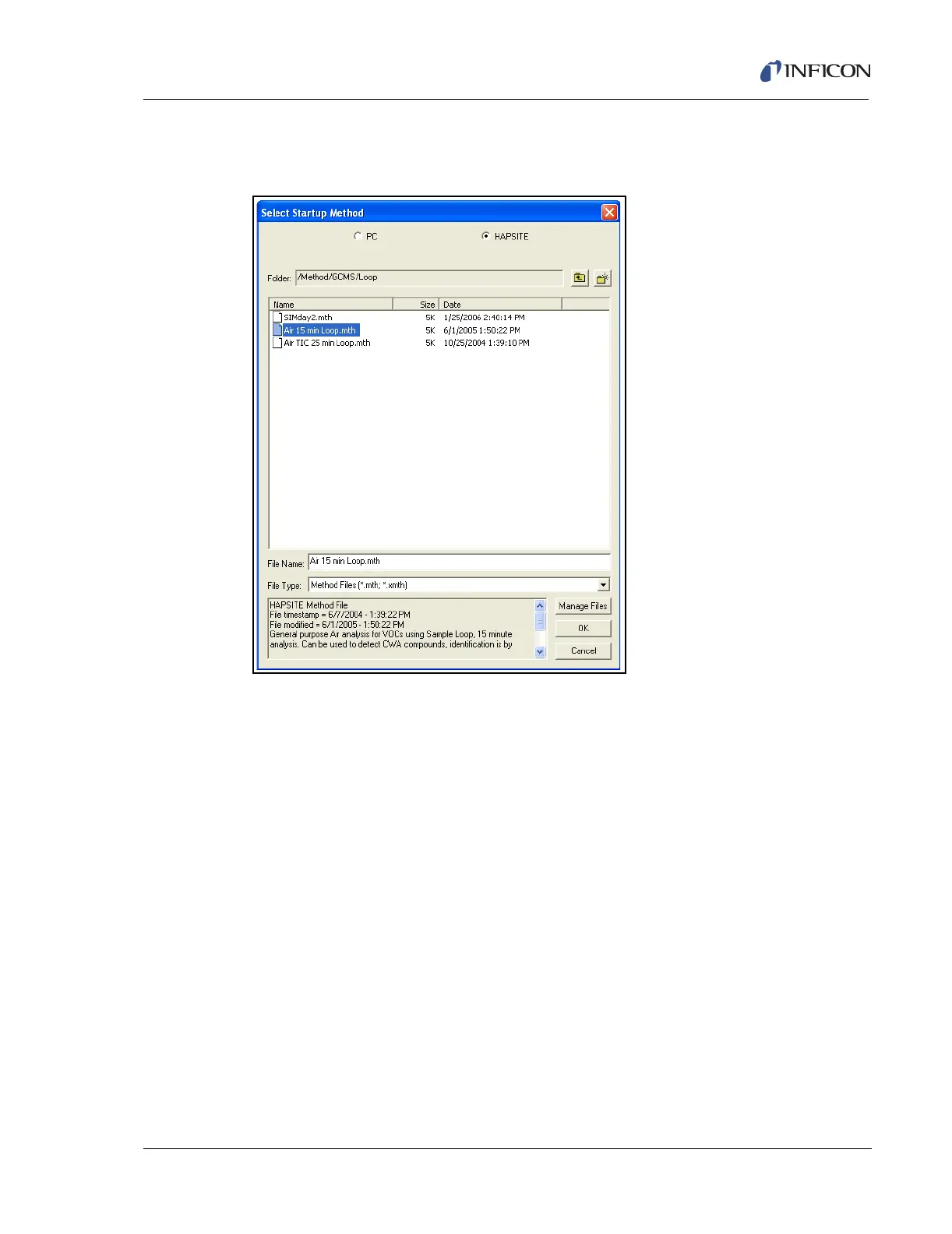

Figure 8-54 Choose Method
