12 - 14
IPN 074-397-P1G
HAPSITE Smart Operating Manual

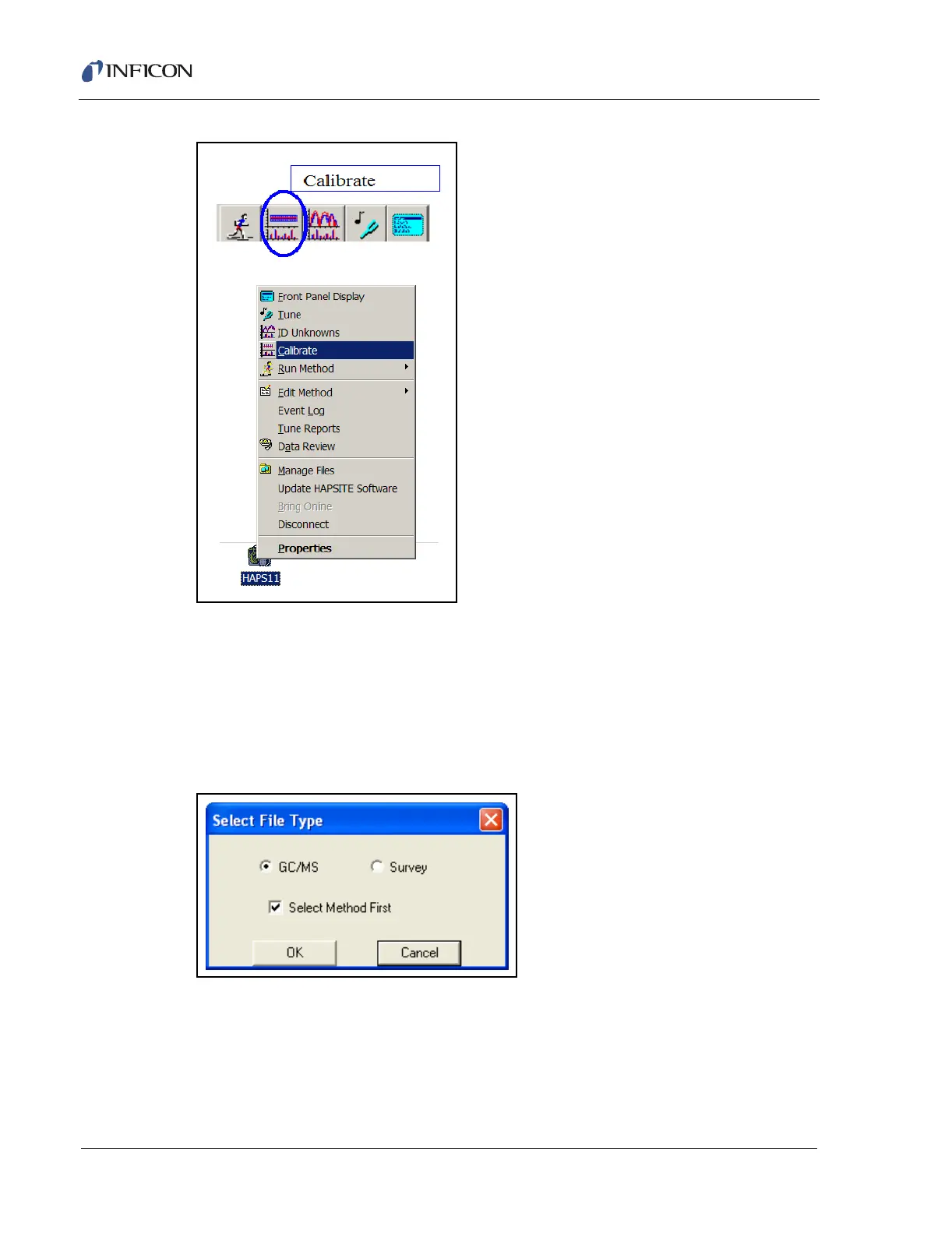

Figure 12-11 Accessing the Calibrate Function
3b Selecting the Calibrate function will display a dialog box used to select the type
of quantitative method being developed — GC/MS or Survey. See Figure
12-12.
NOTE: Methods can be built for Full Scan data or SIM (Selected Ion
Monitoring) data. Best practice is for the Select Method First box to
be checked, as the library is linked to the method.
Figure 12-12 Selecting the Type of Quantitative Method
3c Click OK.
3d The Method File window will be displayed. Select the method which will contain
the library. This will open the Calibration Control Panel.
