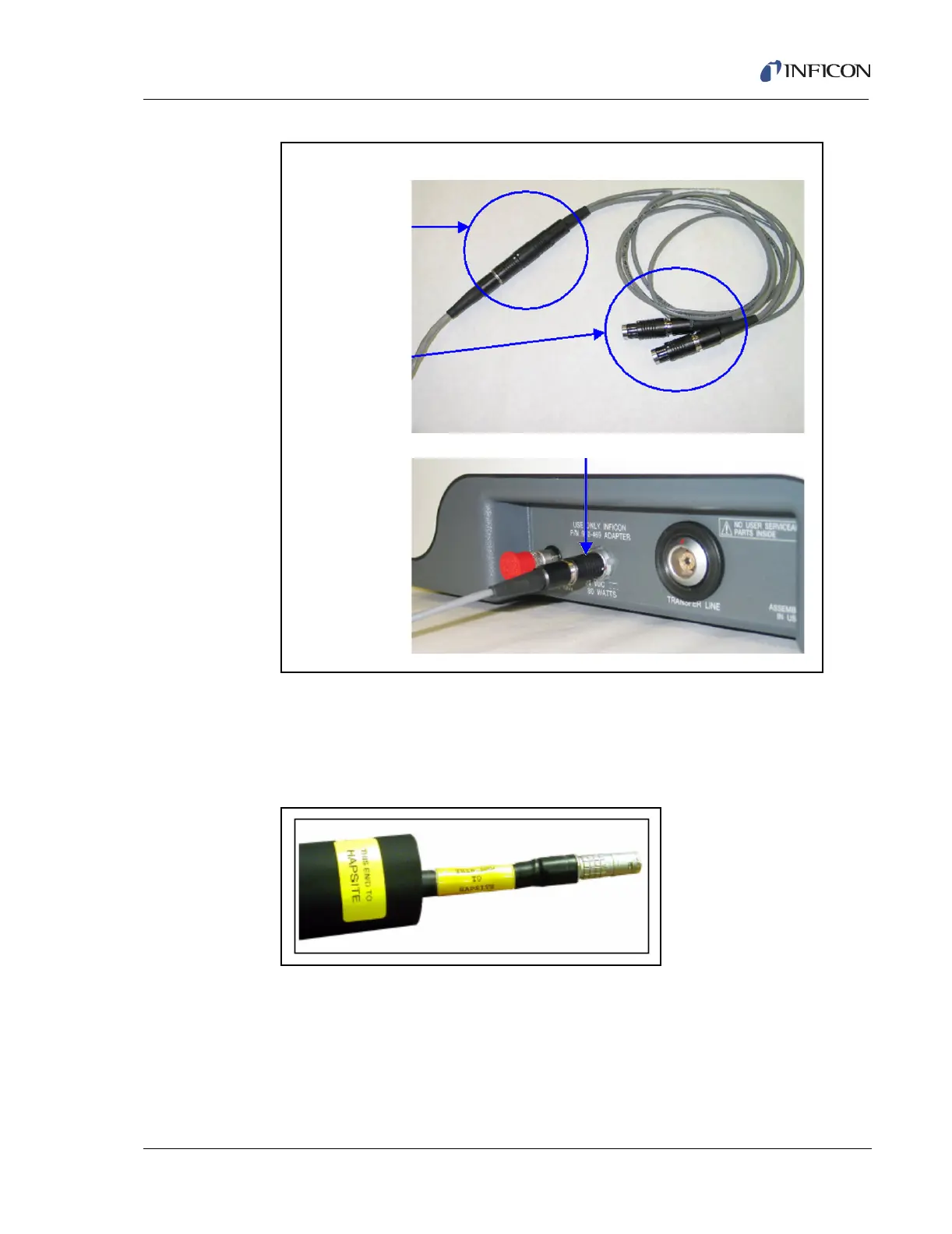

Figure 2-18 Power Supply Y-cable and Back of HSS
6 Properly align the labels on the foam insulation and transfer line and slide into
place. The end of the insulation labeled in yellow THIS END TO HAPSITE
should coincide with the end of the transfer line labeled in yellow THIS END TO
HAPSITE. See Figure 2-19.
Figure 2-19 HAPSITE End of Transfer Line
7 The white label THIS END TO ACCESSORY on the insulation should coincide
with the white label THIS END TO ACCESSORY on the transfer line. See
Figure 2-20.
Y-Connector
and
24 V(dc) Supply
Cable
Plug into
HAPSITE
and
HSS
HSS Connection
