Konica Minolta CS-7 User Manual

192

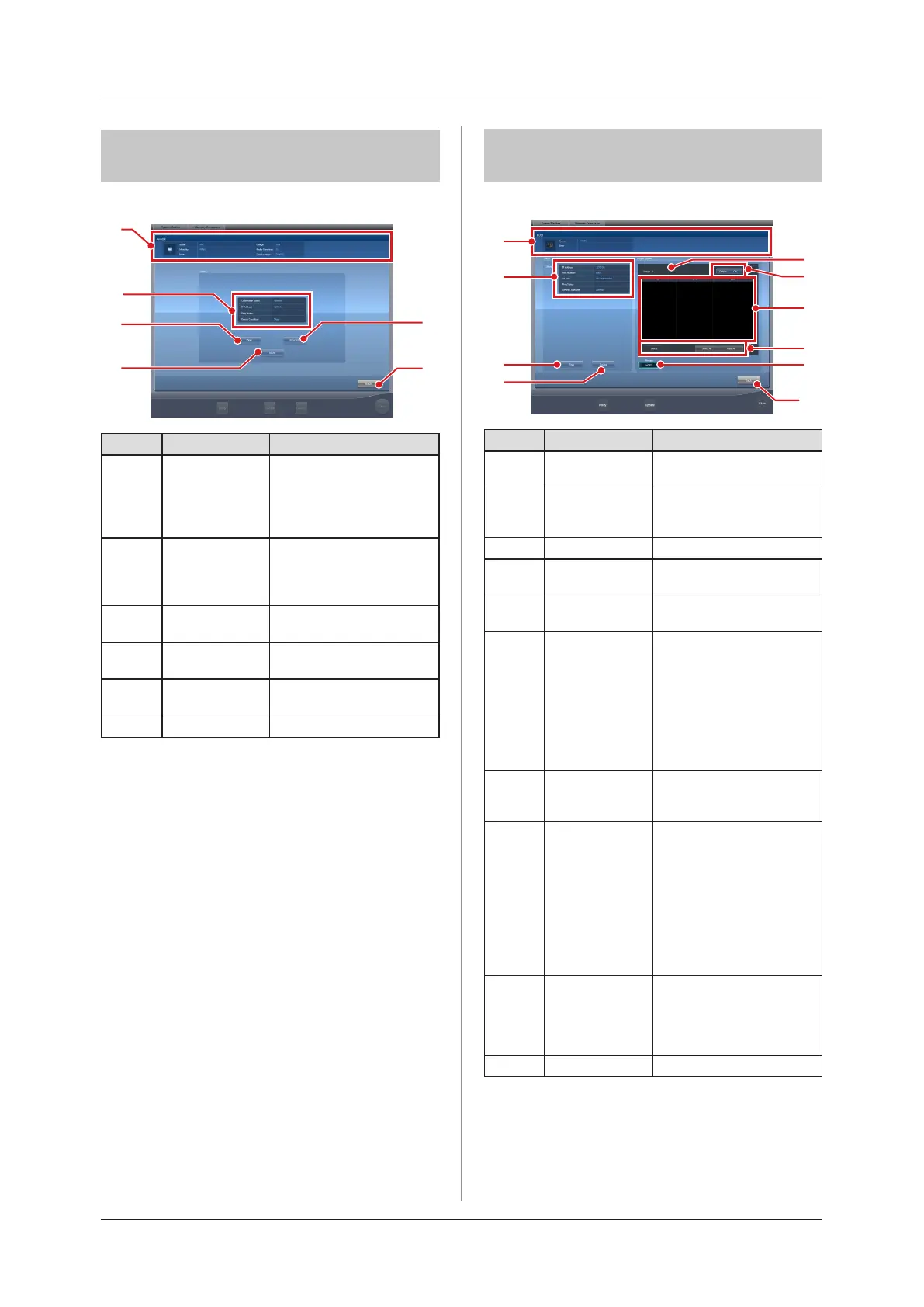

6.8 Functions of the system monitor screen
6.8.3 Status of the
DR Detector
The status of the DR Detector can be conrmed.
(5)
(6)
(1)
(2)
(3)
(4)
Number Name Functions
(1) Status of AeroDR
The name of the DR Detec-
tor, modality, error descrip-
tion, battery status, signal
strength, and serial number
are displayed.
(2) Status
Status of wired or wireless
connection for DR Detector,
IP address, Ping status, and
device status are displayed.
(3) Ping button
Press to conrm the ping
status.
(4) Route button
Press to conrm Route infor-
mation.
(5) Unregister button
Releases the registration of
the DR Detector.
(6) Back button Closes the screen.
6.8.4 Host status
The status of hosts connected to this device can be conrmed.
(10)
(2)
(1)
(3)
(4)
(5)
(6)
(8)
(9)
(7)
Number Name Functions
(1) HOST
The host name and error
description
are displayed.
(2) Status
Host IP address, port number,
AE title, ping status, and de-
vice condition are displayed.
(3) Ping button Press to conrm the ping status.
(4) Route button
Press to conrm Route infor-
mation.
(5)
Number of
reserved images
The number of images not
sent to the host is displayed.
(6)
Output switch
button
Switches between [ON] and
[OFF] of host output.
Outputs when set to [ON], and
does not output to the host
when set to [OFF] and the
output reservation (queue) re-
mains in this device. Switches
between [ON] and [OFF] every
time the button is pressed.
(7)
Output reserva-
tion list
Output reservations (queues)
remaining in this device are
displayed.
(8)
Delete button,
Select All button,
Clear All button
Deletes output reservations
being displayed in the output
reservation list. Select an out-
put reservation displayed in the
output reservation list and press
[Delete] to delete. To delete all
output reservations, press [Se-
lect All] and then press [Delete].
When [Clear All] is pressed, the
selection is released.
(9)
Primary/Second-
ary button
To switch the output des-
tination to backup, select
[Secondary]. [Secondary] is
displayed only for the num-
ber of connected devices.
(10) Back button Closes the screen.
