Chapter 7
7.6 Auto stitching exposure with AeroDR Detector
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• The AeroDR 3 1417HD cannot be used for auto stitch-
ing exposure with AeroDR Detector.
• The following DR Detector are described here as "DR
Detector."
– AeroDR 1417HQ
– AeroDR 1417S
– AeroDR 1717HQ
– AeroDR 1012HQ
– AeroDR 2 1417HQ
– AeroDR 2 1417S
•••••••••••••••••••••••••••••••••••••••••••••••••••••

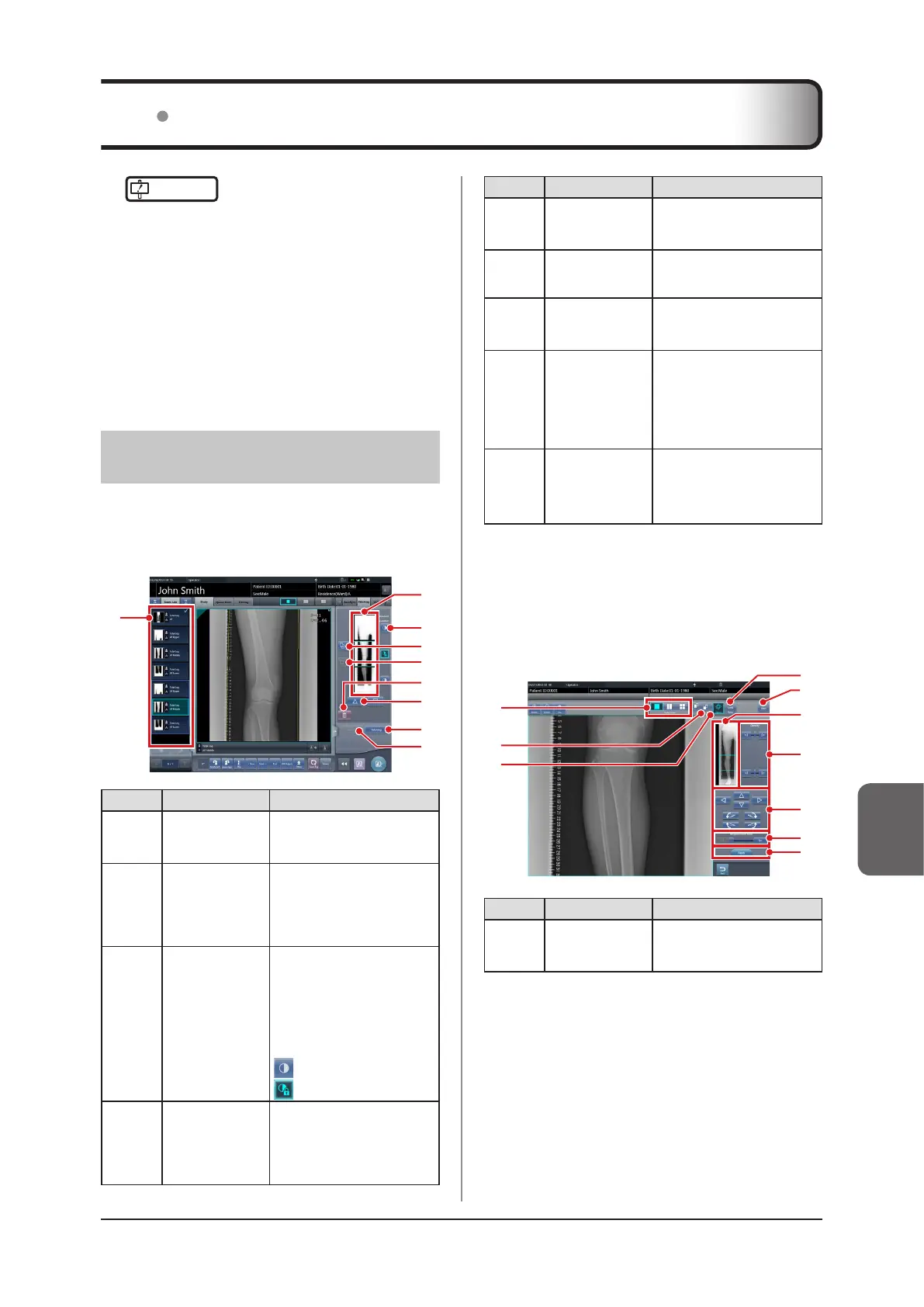

7.6.1 Screen structure
z
Exposure screen
This is the screen for auto stitching exposure with DR
Detector.
(3)
(1)
(2)
(8)
(7)
(9)
(5)
(4)
(6)
Number Name Functions
(1) Order list
List of exposures. Exam.
Tags are grouped for each
examination.
(2)
Combined image
display area
The images for combination
are displayed. Focus is dis-
played on selected images. In
the case of 2 exposures, "x" is
displayed in the area at the top.
(3)
Standard grada-
tion button
This button is for select-
ing the image which will be
the image shade standard
among the images displayed
in the combined image
display area. You can only
select 1 image.
: Not selected
: Selected
(4)
Selection button
(batch selection)
Gathers multiple exposure
images associated with the
images selected in the order
list and displays them in the
combined image display area.
Number Name Functions
(5)
Selection button
(individual selec-
tion)
Displays the selected images
in the order list in the com-
bined image display area.
(6) Delete button
Deletes the images selected
in the combined image dis-
play area.
(7)
Combination
sequence switch
button
Moves the position of images
selected in the combined im-
age display area.
(8) Stitching button
Combines the images dis-
played in the combined im-
age display area. Press this
button to display the stitching
combination position adjust-
ment conrmation screen.
(9) Adjust button
Performs re-adjustment of
the combination position. This
button cannot be pressed
when combined images are
not displayed.
z
Viewer screen (for stitching combination
position adjustment)
This is the screen for adjusting combined position of
images taken with stitching exposure with the DR De-
tector.
(5)
(4)
(3)
(2)
(1)
(9)
(10)
(6)
(7)
(8)
Number Name Functions
(1)
Display layout
toggle button
Selects the screen display
format from 1×1, 2×1, and
2×2 display options.
