Konica Minolta CS-7 User Manual

51
Chapter 3
3.5 Exposure screen
3.5.4 Work area (not during exposure)

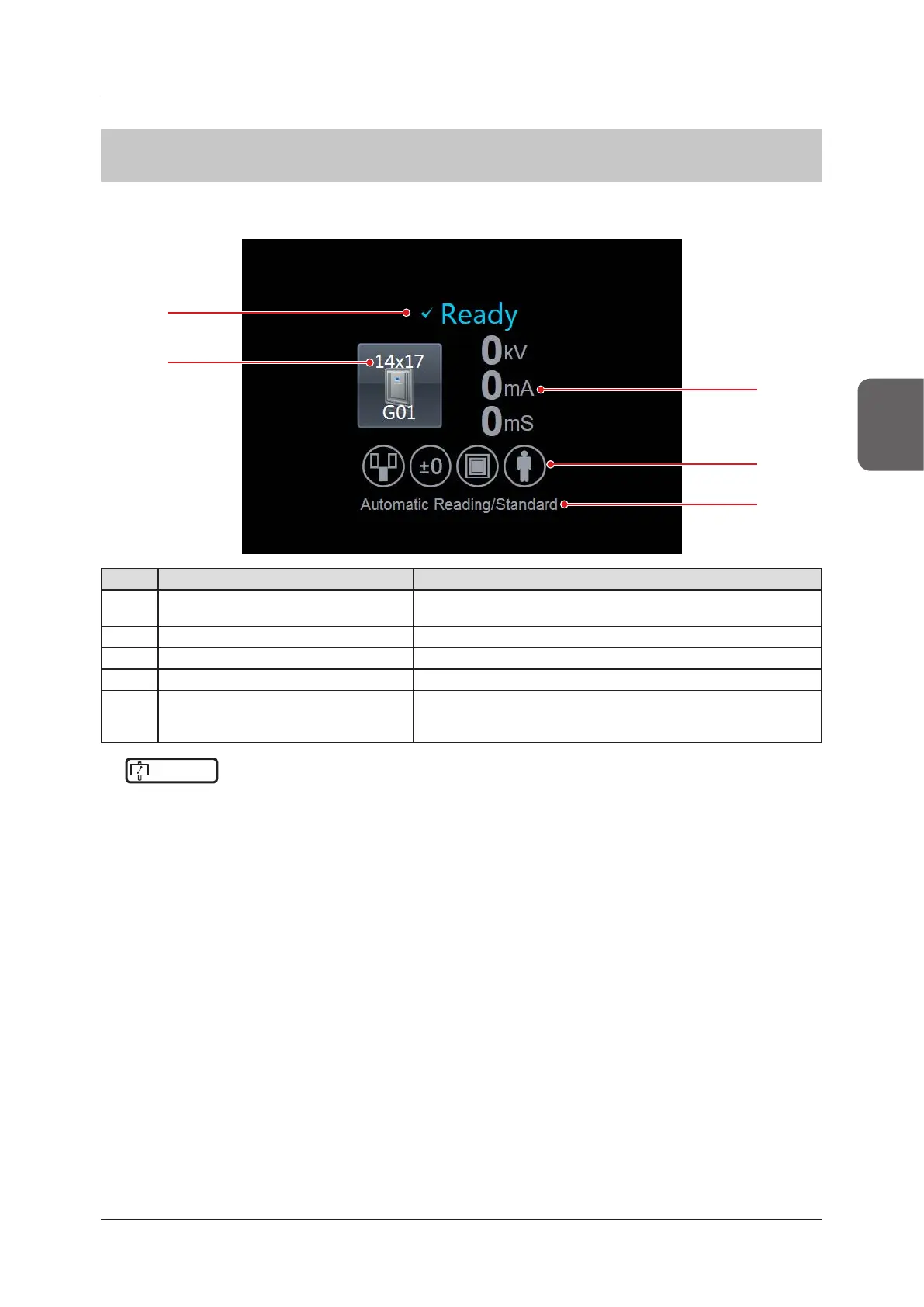

For work areas when unexposed, the type of exposure device, status, irradiation information, exposure conditions,
etc. are displayed.
(1)
(3)
(5)
(4)
(2)
Number Name Functions
(1) Status
Status of the DR Detector is displayed.
This is not displayed when exposing with the CR cassette.
(2) Device icon The exposure device icon and the size of the DR Detector is displayed.
(3) Exposure information The exposure information during the exposure is displayed.
(4) Exposure condition icon Exposure condition is displayed as an icon.
(5) Reading conditions
Reading conditions such as reading size, reading direction and resolu-
tion are displayed. When set to automatic reading, [Automatic Reading]
is displayed.
IMPORTANT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• When using AeroDR 3 1417HD and a CR casette, be sure to check the resolution displayed in the reading conditions when
exposure.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
