Chapter 3
3.5 Exposure screen
This is the screen to perform exposure.

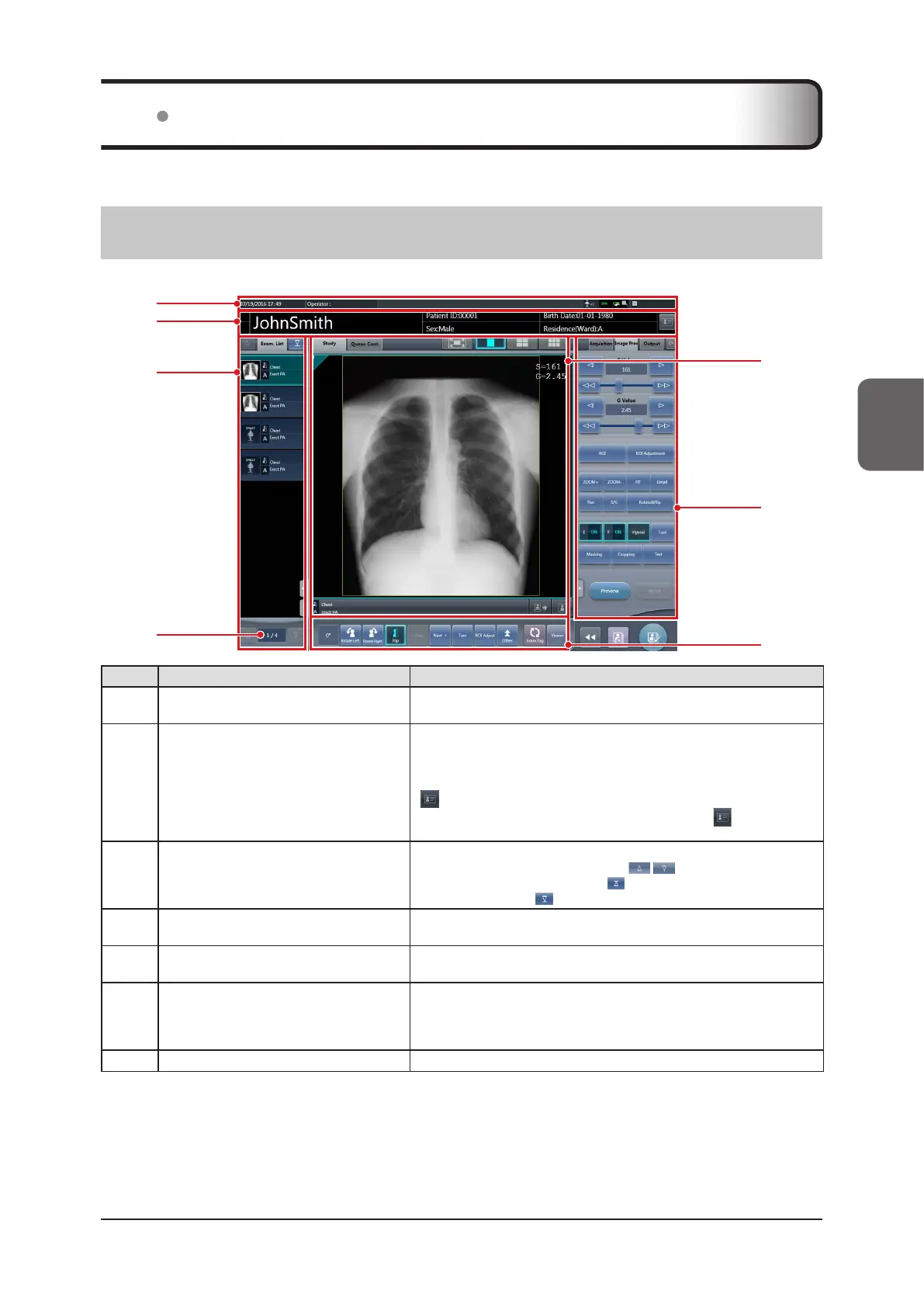

3.5.1 Structure of the exposure screen
The exposure screen consists of several areas. Here, each area is described.
(2)
(1)
(5)
(6)
(7)
(3)
(4)
Number Name Functions
(1) Application bar
Date and time, operator name, exposure room name, icons of devices
connected to this device are displayed.
(2) Patient information display area
Patient name, patient ID, date of birth, sex, etc. are displayed.
The emergency mark is displayed for emergency patients, and the medi-
cal warning mark is displayed for pregnant patients or other patients who
need extra care during X-ray exposure.
[
]:
The patient information editing screen is displayed ([
] is not dis-
played when exposing with the multi-study).
(3) Study display area
The order list or body part selection is displayed. The displayed details
can be switched using tabs. Pressing [ ] can move the display on
an order by order basis. Pressing [ ] moves the display to the starting
order while pressing [ ] displays the last order.
(4)
Currently selected order No./Number of
orders
Displays the currently specied order of studies and the total number of
studies.
(5) Work area
Displays exposure conditions and exposed images, etc. The displayed
details can be switched with tabs.
(6) Control panel
Used when performing some operation on the image display area that
has focus. The operation panel switches automatically depending on
the content in the image display area that has focus, and it can also be
switched by selecting tabs.
(7) Tool bar Displays various functions, and a shortcut to the control panel, etc.
