7.22 Other functions

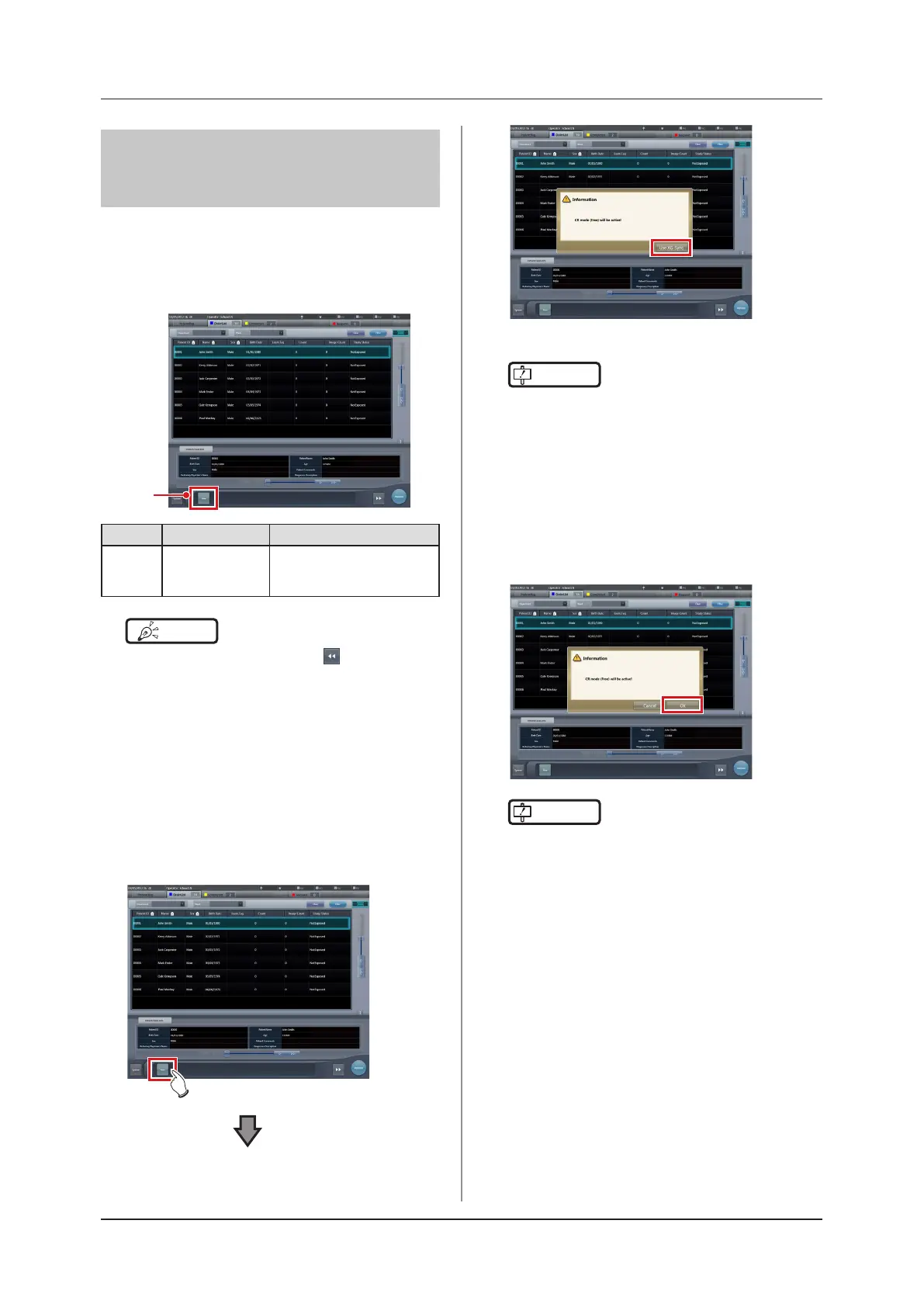

7.22.2 Release of the X-ray
linkage when using
AeroDR S-SRM KIT
When using AeroDR S-SRM KIT with sync mode to
the X-ray device set to manual connection, you can
release the link to the X-ray.
z
Screen conguration
(1)
Number Name Functions
(1) Free button
The link to the X-ray device
is canceled to enable expo-
sure.
HINT
•••••••••••••••••••••••••••••••••••••
• If [Free] does not appear, press [ ] on the toolbar.
• When a fault occurs due to a bad connection etc.,
[Free] turns yellow. Check the connection status and
power status of the AeroDR S-SRM KIT and then ex-
ecute the link setting again.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
z
Canceling link to X-ray device
The link to the X-ray device can be canceled as fol-
lows.
1
Press [Free].
• A conrmation screen is displayed.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• The link to the X-ray device is released to enable
exposure only while the confirmation screen is
displayed.
• Press [Use XG-Sync] to restore the link to the X-ray
device.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
z
About messages during CR exposure
Depending on the settings at installation, messages
may appear during CR exposure.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• The link to the X-ray device is released only while the
conrmation screen is displayed.
• Press [OK] to restore the link to the X-ray device.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
