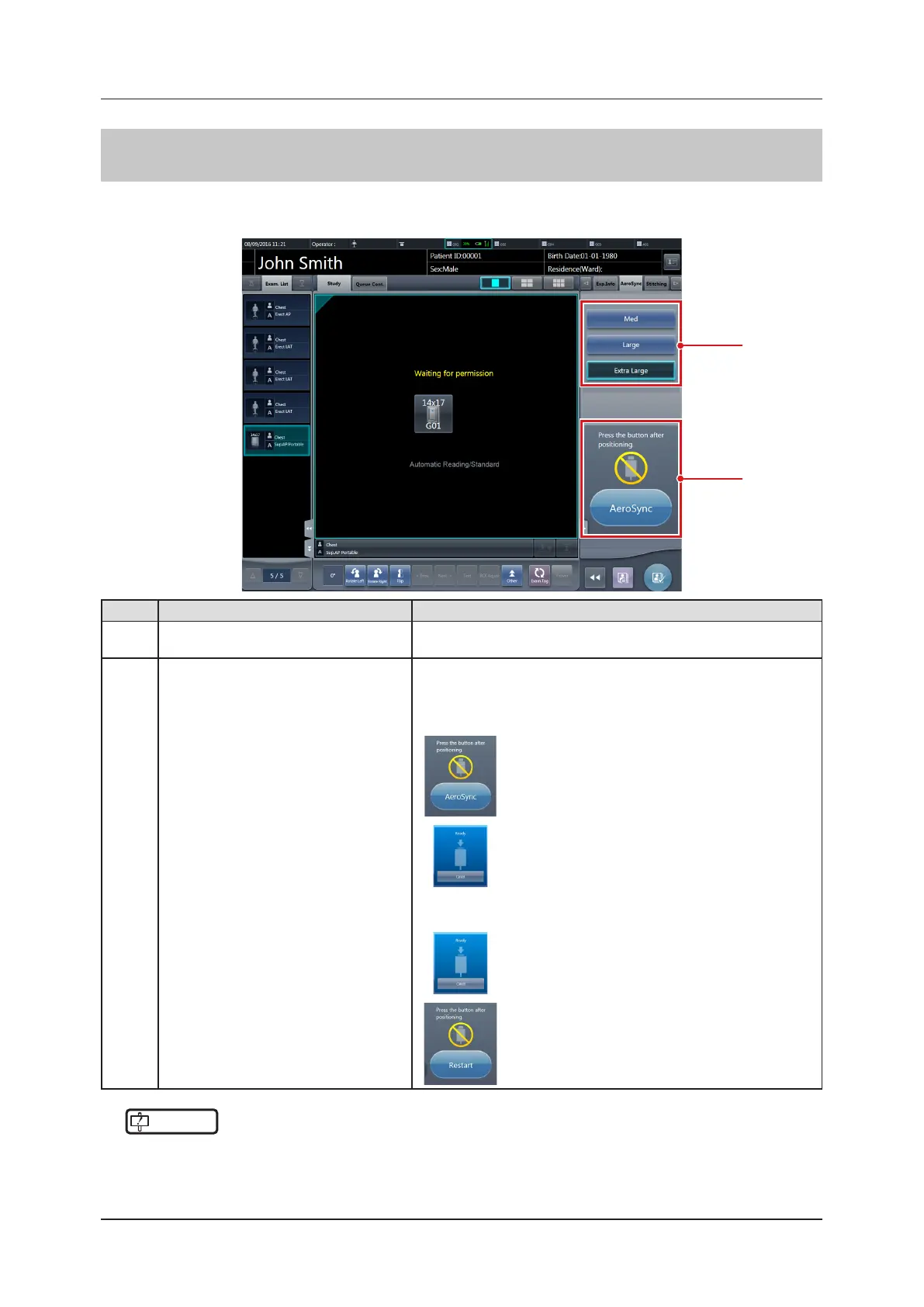

3.5 Exposure screen
3.5.9 Control panel (Aero Sync)
When exposing via Aero Sync mode, use this control panel to perform various operations and congure various set-
tings.
(2)
(1)
Number Name Functions
(1) X-ray detection level switching area
Select the X-ray detection level during exposure.
This may not be displayed depending on the type of DR Detector used.
(2) Message/Button area
Messages and buttons are displayed in this area depending on the opera-
tion status.
When the [AeroSync Button] is set to ON on the system monitor
screen
Exposure permission waiting screen
The device is waiting for permission for exposure. The
screen changes to the ready-to-expose screen if you
press [AeroSync].
Ready-to-expose screen
The screen is locked as it is ready to be captured.
To cancel exposure, press [Cancel], then the screen
returns to the exposure permission waiting screen.
When the [AeroSync Button] is set to OFF on the system monitor
screen
Ready-to-expose screen
The screen is locked as it is ready to be captured. To sus-
pend exposure, press [Pause], then the screen returns to
the exposure permission waiting screen.
Exposure resumption waiting screen
The device is waiting for exposure to be resumed. The
screen changes to the ready-to-expose screen if you
press [Restart].
IMPORTANT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• The X-ray detection level switching area may not be displayed depending on the type of DR Detector used.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
