194

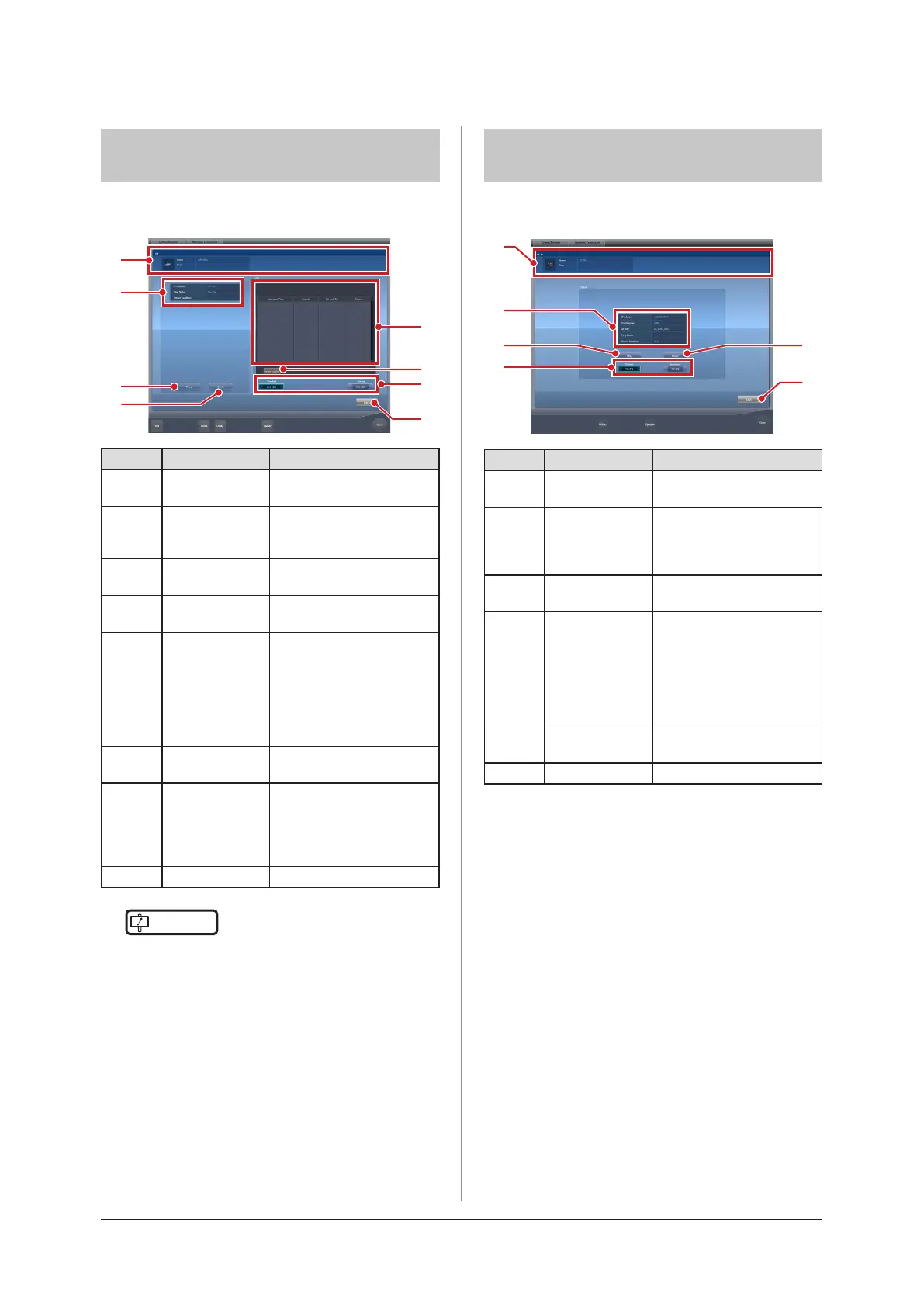

6.8 Functions of the system monitor screen
6.8.6 Status of JM
The status of the JM connected to this device can be
conrmed.
(2)
(1)
(3)
(4)
(8)
(7)
(6)
(5)
Number Name Functions
(1) JM information
The JM name and error
description are displayed.
(2) Status
IP address, ping status of
JM, and device status are
displayed.
(3) Ping button
Press to conrm the ping
status.
(4) Route button
Press to conrm Route infor-
mation.
(5) Job
In the case of bar code regis-
tration operation, displays the
status of registered bar code
(CR cassette). Displays regis-
tration date and time, REGIUS
or REGIUS SIGMA/SIGMA2,
bar code, and status.
(6)
Delete Reading
button
Stops read status.
(7)
Standard/
Backup button
Switches between standard
JM and backup JM. When
the standard JM is working
normally, it is not possible to
switch to the backup JM.
(8) Back button Closes the screen.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• Normally [Delete Reading] is not used. Use this when
although an image is not being read, the message
"This image is being prepared for reading, and cannot
be viewed. View after reading is completed or can-
celled." is displayed, and you cannot move to another
screen.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
6.8.7 Status of RIS-IN
The status of higher systems connected to this device
can be conrmed.
(6)
(5)
(1)
(2)
(3)
(4)
Number Name Functions
(1)
RIS-IN informa-
tion
The higher system name and
error description are displayed.
(2) Status
Higher system IP address,
port number, AE title, ping
status, and device condition
are displayed.
(3) Ping button
Press to conrm the ping
status.
(4)
Primary/Second-
ary button
Switches between standard
RIS-IN and backup RIS-IN
when used normally. When
the standard RIS-IN is work-
ing normally, it is not possible
to switch to the backup RIS-
IN.
(5) Route button
Press to conrm Route infor-
mation.
(6) Back button Closes the screen.
To Next Page
