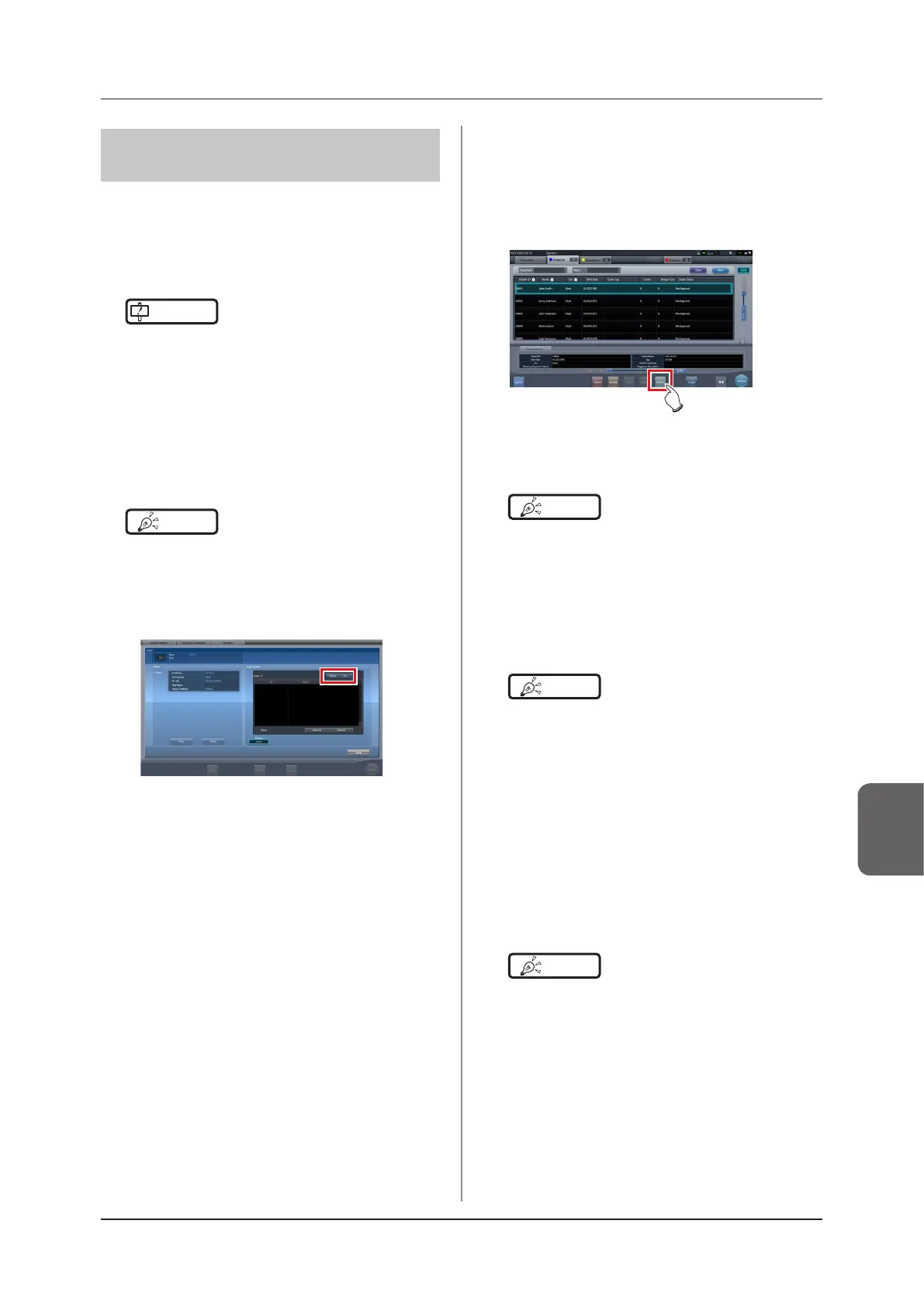

7.1 Exposure with AeroDR Portable RF Unit
Chapter 7
7.1.2 Exposure preparations
The exposure using the AeroDR Portable RF Unit is
performed with the following procedure. The following
procedure is for an example in which a wired connec-
tion is in operation between this device and a higher
system.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• When this device is being used in the AeroDR Por-
table RF Unit, charge it when a notification that the
battery level is low is displayed.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
1
Register the DR Detector in this device that is
to be used in AeroDR Portable RF Unit.
• For operation of the DR Detector, refer to
"AeroDR Operation Manual".
HINT
•••••••••••••••••••••••••••••••••••••
• Conrm that the outputs of host, RIS-OUT and printer
are [ON] on the system monitor screen ([System Moni-
tor] tab).
In case of the host
The device switches between [ON] and [OFF] every
time [Output] is pressed.
• When using a RIS-OUT or printer, conrm the output is
set to [ON] using the same procedure.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
2
Import the examination information to be
used for the exposure using the portable
X-ray device.
• Conrm that an Ethernet cable is connected to
this device.
• Press [Refresh] on the list screen on this device.
• The latest examination information is imported
from the higher system by pressing the [Refresh]
button.
HINT
•••••••••••••••••••••••••••••••••••••
• To input examination information manually, change the
screen to the patient registration screen.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
3
Remove the Ethernet cable that is con-
nected to the DR Detector registration hub
from the portable X-ray device hub.
HINT
•••••••••••••••••••••••••••••••••••••
• When the AeroDR Portable RF Unit is connected to
this device through a wireless connection, remove the
Ethernet cable from this device.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
4
Unplug the power cable from the outlet
when charging this device.
5
Complete the exposure preparations.
• Confirm that the AeroDR Portable RF Unit is
shut down to complete the exposure and move-
ment preparations.
HINT
•••••••••••••••••••••••••••••••••••••
• It is all right to keep power of this device and the DR
Detector on.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
