7.1 Exposure with AeroDR Portable RF Unit
z

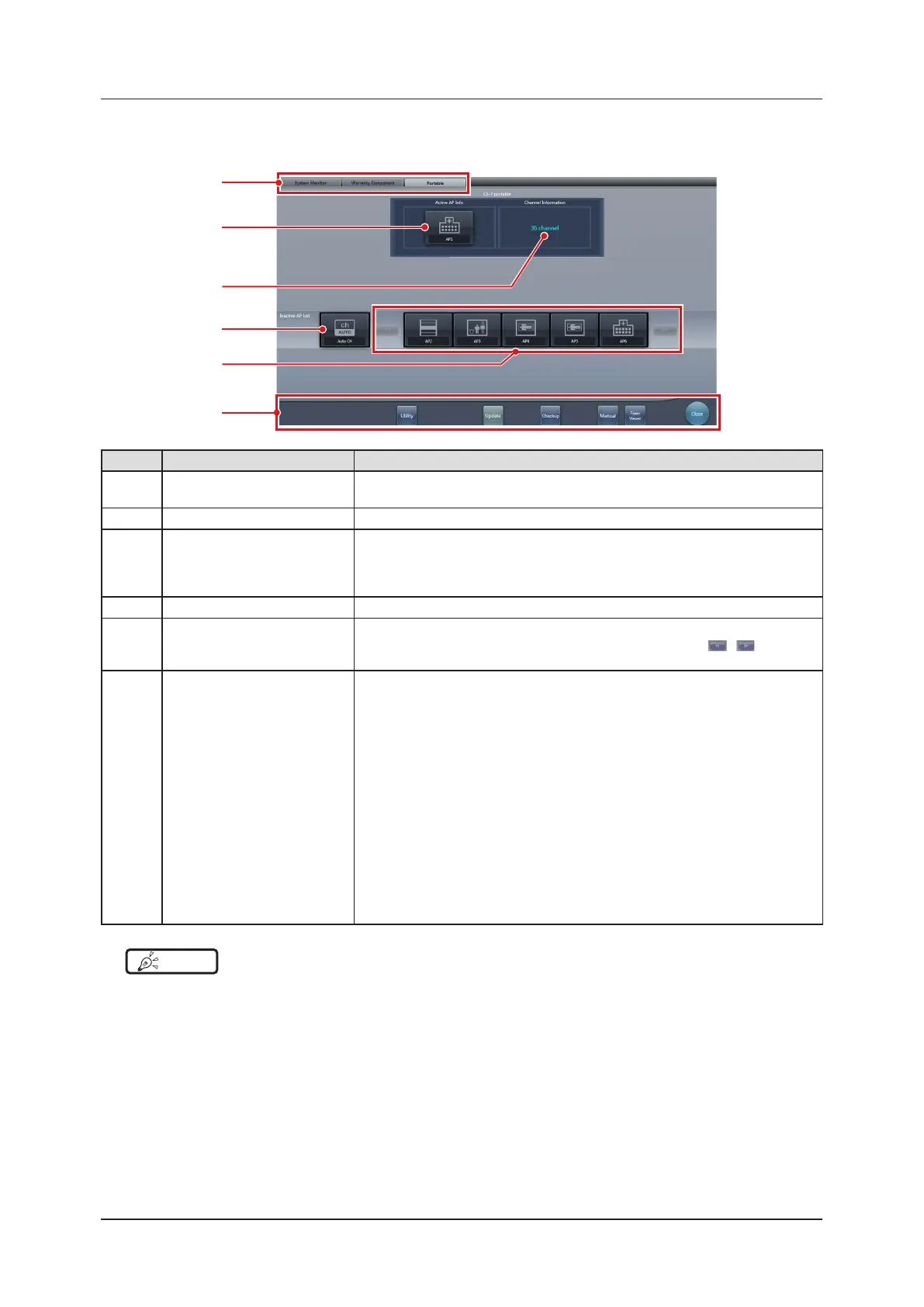

System monitor screen (Portable)
This is the screen for switching the AP information and channels built into the AeroDR Portable RF Unit.
(6)
(4)
(3)
(5)
(2)
(1)
Number Name Functions
(1) Function switching tab
Switches between the [System Monitor], [Warranty Component], and [Portable]
tabs.
(2) Active AP Info Displays the AP information selected through the AeroDR Portable RF Unit.
(3) Channel Information
Displays the channel of the AP information selected through the AeroDR Portable RF
Unit.
If multiple pieces of channel information are displayed, DFS has been set and one of the
channels is in use.
(4) Auto CH button Automatically selects the optimum channel.
(5) Inactive AP List
AP information list registered in this device. Select an icon to switch to an AP infor-
mation. If there are more than 7 AP information registered, press [ ] to scroll
sideways.
(6) System menu
Starts a utility or shuts down the system. This is displayed regardless of tabs being se-
lected.
[Utility]:
Starts utilities. This button is not displayed if the user authorization of the logged
in operator is "Technologist".
[Update]:
Refreshes information.
[Checkup]:
Displays the checkup setting screen.
[Manual]:
The "CS-7 Operation Manual" is displayed. This button is not displayed if the
manual le is not deployed.
[TeamViewer]:
Displays the TeamViewer startup button.
[Close]:
Exits the system monitor screen, and the previous screen is displayed.
HINT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• The [Portable] tab is displayed only when operating the AeroDR Portable RF Unit.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
