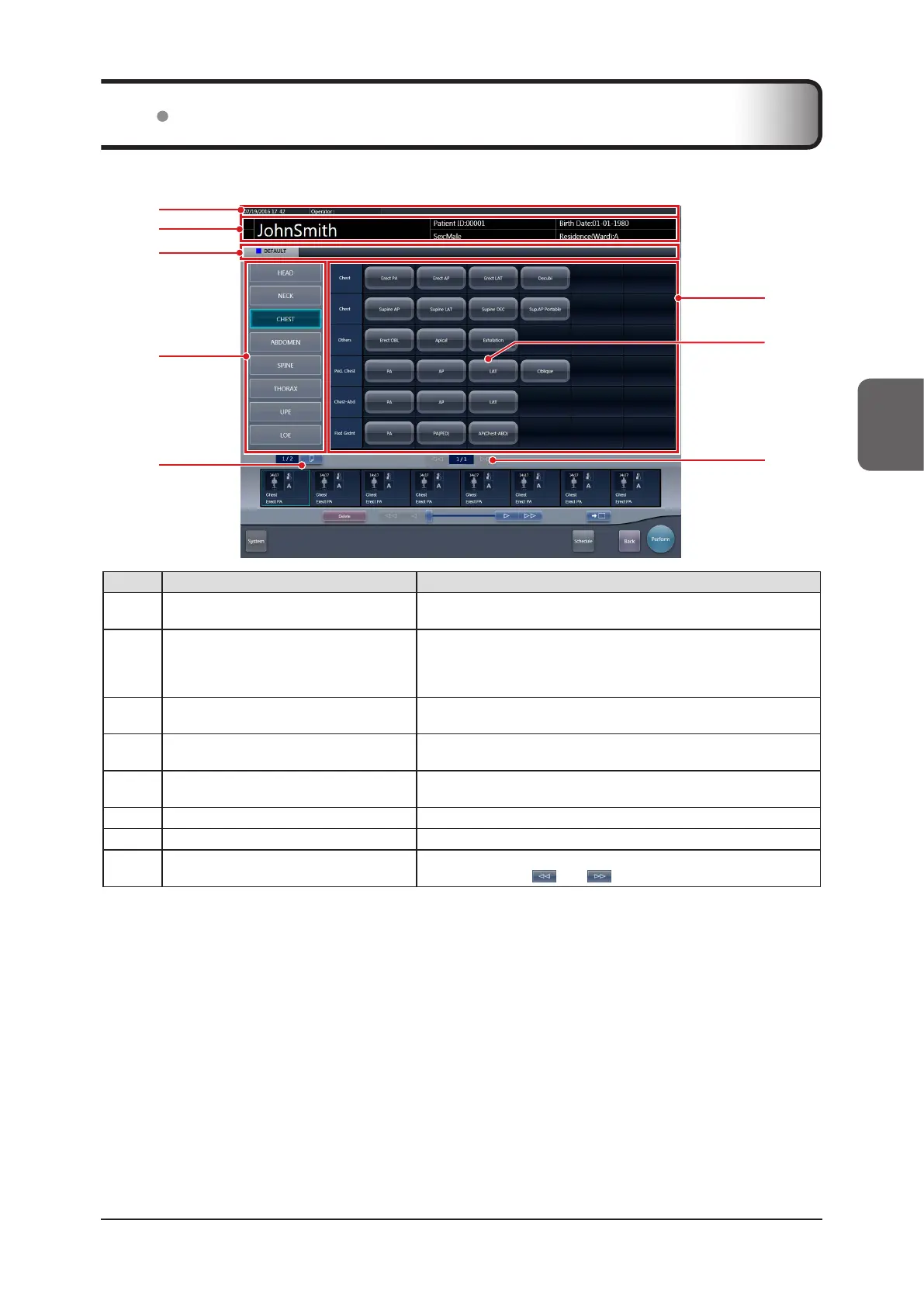

3.4 Body part selection screen
This is the screen to select the body part.
(7)
(8)
(6)
(5)
(3)
(4)
(2)
(1)
Number Name Functions
(1) Application bar
Date and time, operator name, exposure room name, icons of devices
connected to this device are displayed.
(2) Patient information display area
Patient name, patient ID, date of birth, sex, etc. are displayed.
The emergency mark is displayed for emergency patients, and the med-
ical warning mark is displayed for pregnant patients or other patients
who need extra care during X-ray exposure.
(3) Favorite tab
When the set tab is selected, body part is displayed in the body part
display area linked to the selected tab.
(4) Body part display area
The exposure body part is displayed. With a maximum of 2 pages, each
page can display up to 8 buttons at the same time.
(5)
Switching button
(Body part display area)
Switches the pages of the body part display area. Maximum is 2 pages.
(6) Exam. Tag display area Exam. Tag for the selected body part is displayed.
(7) Exam. Tag This is the button to determine exposure conditions for the body part.
(8)
Switching button
(Exam. Tag display area)
When there are multiple pages for the Exam. Tag display area, move
pages by pressing [
] or [ ].
To Next Page
