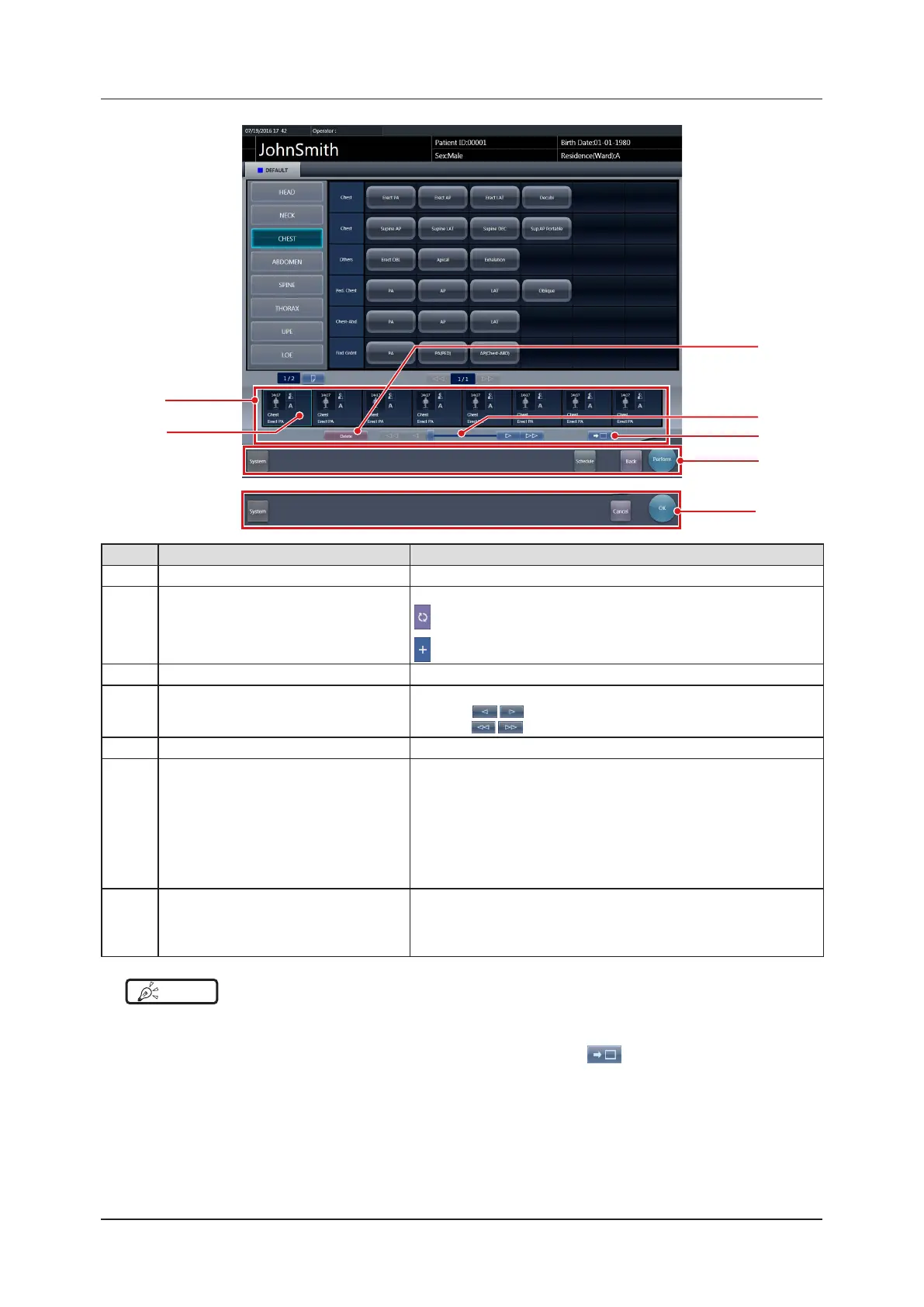

3.4 Body part selection screen
(9)
(12)
(14)
(10)
(11)
(13)
(15)
Number Name Functions
(9) Exam. Tags display area Press the Exam. Tag to display the added Exam. Tags.
(10) Exam. Tags
Exam. Tags and device icon are displayed.
: Displayed when the Exam. Tags are changed on the exposure
screen.
: Displayed when the Exam. Tags are added on the exposure screen.
(11) Delete button Deletes the selected Exam. Tags (focused Exam. Tags).
(12) Scroll bar/scroll buttons
Drag the scroll bar to scroll the Exam. Tags display area left and right.
Pressing [
] scrolls the exposure body part list by frame, and
pressing [ ] scrolls pages.
(13) Append and move buttons Moves the focus to the added Exam. Tag.
(14) Tool bar area
During registration in the Exam. Tags display area, operation buttons are
displayed for the focused examination.
[System]: The system monitor screen is displayed.
[Schedule]:
Reserves the selected Exam. Tags (focused Exam. Tags). Pressing
[Schedule] reserves the examination and displays the list screen.
[Back]: Displays the list screen without reserving the examination.
[Perform]: The exposure screen is displayed.
(15) Tool bar area
Displayed when the exposure screen transitions to the Body Part Selec-
tion screen.
[OK]: Displays the exposure screen.
[Cancel]: Returns the display to the previous screen.
HINT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• When exposed, the exposed image thumbnails and Exam. Tags are displayed in the Exam. Tags display area.
• [Schedule] is not displayed in the tool bar area when the body part selection screen is displayed from the exposure screen.
• When moving the focus to the added Exam. Tag, press the move-to-add button, [ ].
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
