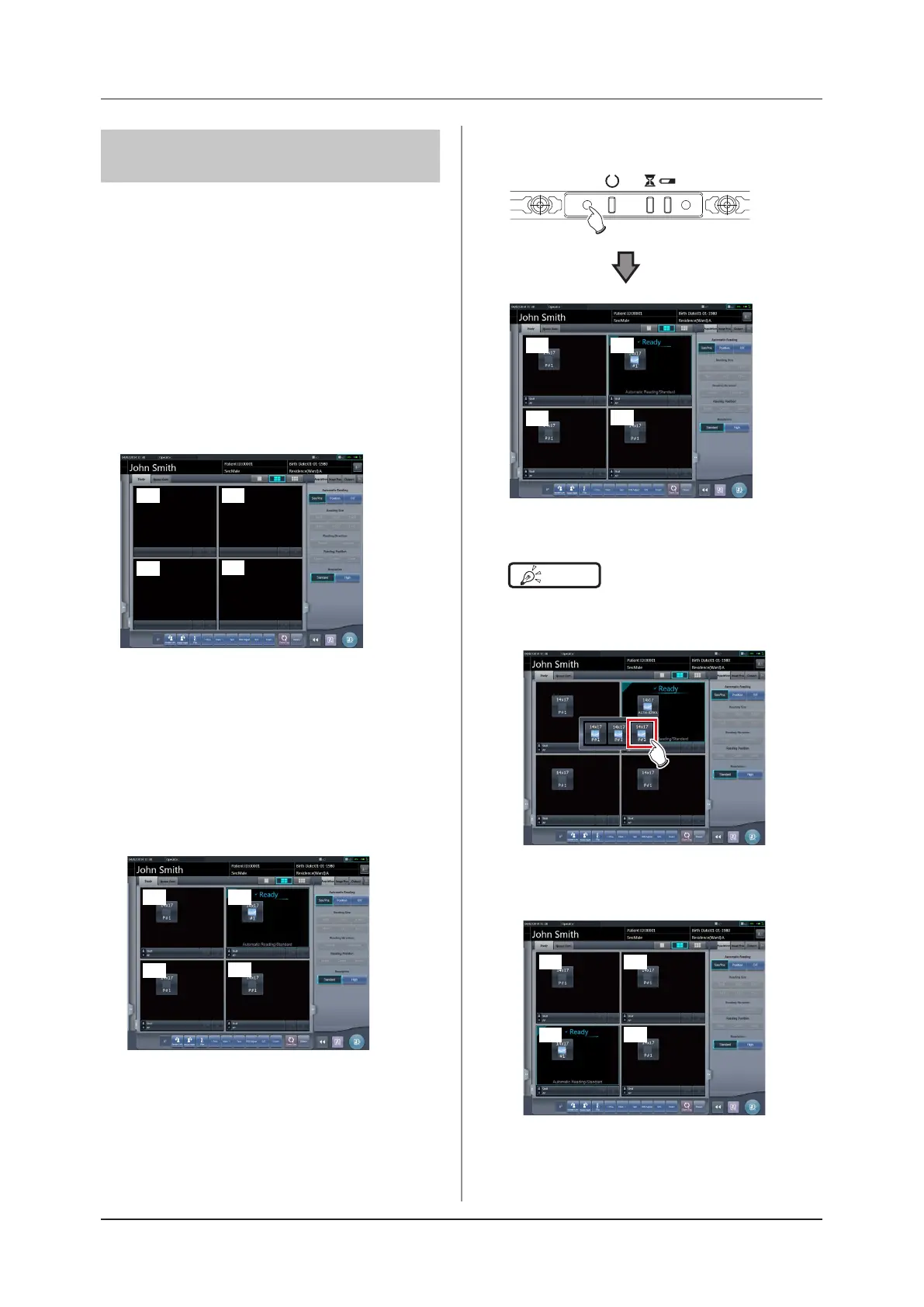

6.4 Functions of the exposure screen
6.4.11 Switching of
DR Detectors
When exposing with an DR Detector, it is possible to
switch to exposure with another DR Detector.
The following procedure describes an example of ex-
posure under the following conditions.
Exposure device
The devices to be used for exposure are as follows.
• DR Detector (A) × 1
• DR Detector (B) × 1
• DR Detector (C) × 1
Exposure sequence
The relationship between the exposure sequence and
the DR Detector to be used is as follows.
(1)
(3)
(2)
(4)
Exposure with
DR Detector (A)
Exposure with
DR Detector (B)
Exposure with
DR Detector (A)
Exposure with
DR Detector (A)
* The exposure sequence ((1) - (4)) and DR Detec-
tor (A)(B)(C) are displayed for ease of explana-
tion, and are not displayed on the actual screen.
Circumstances
Performing exposure with DR Detector (C) that had
been planned to be performed with DR Detector (A).
1
Set focus on any of the image areas (1), (2)
or (4) registered with DR Detector (A).
(1)
(3)
(2)
(4)
Exposure with
DR Detector (A)
Exposure with
DR Detector (B)
Exposure with
DR Detector (A)
Exposure with
DR Detector (A)
2
Press the selection switch for DR Detector
(C).
(1)
(3)
(2)
(4)
Exposure with
DR Detector (C)
Exposure with
DR Detector (B)
Exposure with
DR Detector (C)
Exposure with
DR Detector (C)
• DR Detector (A) used in exposure of (1), (2) and
(4) switches to DR Detector (C).
HINT
•••••••••••••••••••••••••••••••••••••
• The device can also be switched to a different DR
Detector by pressing the device icon in the unexposed
image display area.
• In Step 2, when the selection switch for DR Detector
(B) is pressed, the cursor moves to frame
(3)
to ex-
pose with DR Detector (B).
(1)
(3)
(2)
(4)
•••••••••••••••••••••••••••••••••••••••••••••••••••••
