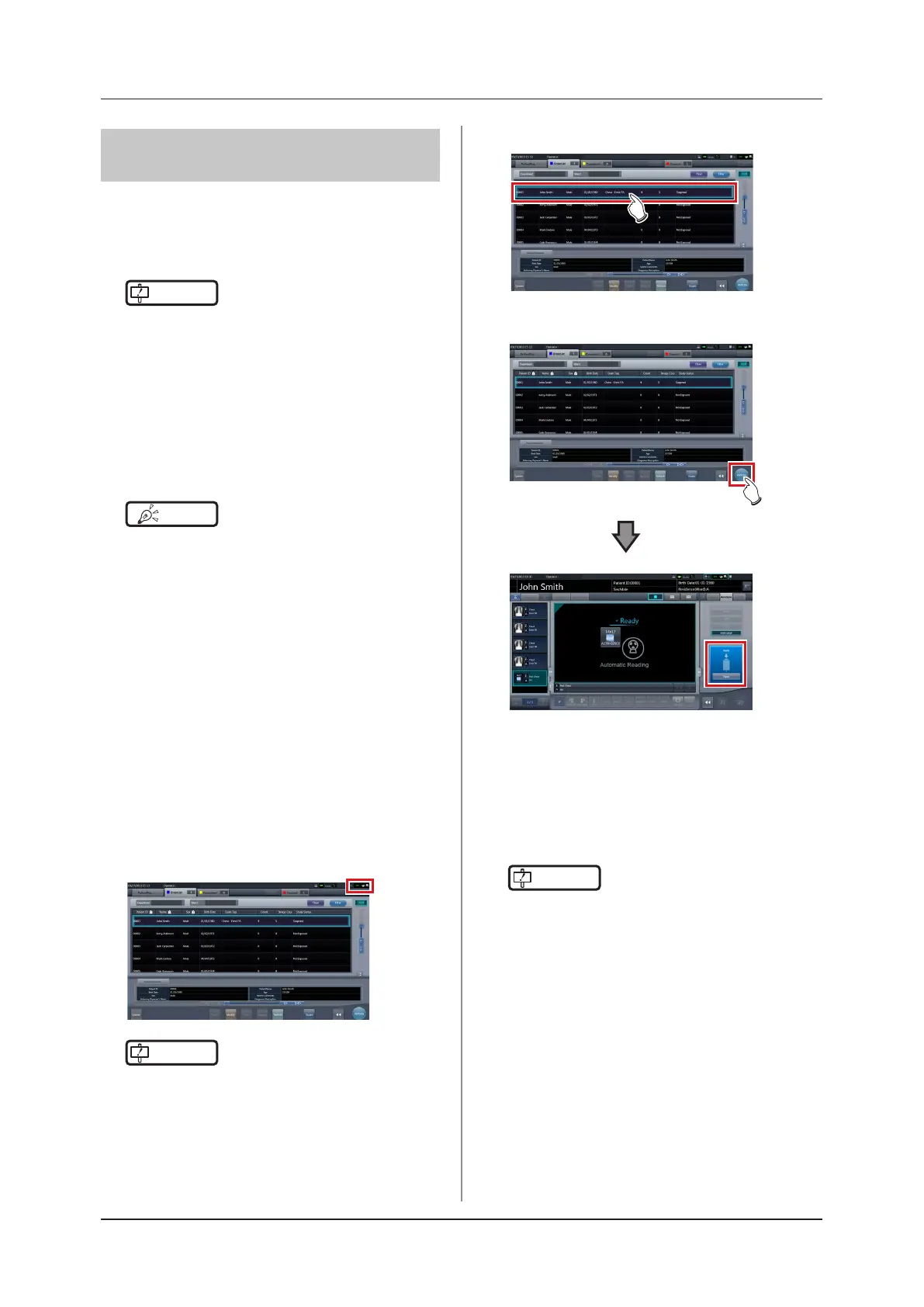

7.3 Exposure with AeroDR Portable UF Unit
7.3.3 Exposure
Prepare for exposure using the AeroDR Portable UF
Unit according to the following procedure. The proce-
dure varies depending on the setting of the [AeroSync
Button] on the system monitor screen.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• Always check the patient information and exposure
conditions before exposure.
• Do not disconnect the Ethernet cable while the data is
being transmitted.
• The status of communication with the host is displayed
on the [System] button. For detail, refer to "7.3.1
Screen structure".
• Available X-ray detection level varies depending on
the DR Detector model.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
HINT
•••••••••••••••••••••••••••••••••••••
• This example shows a case in which the AeroDR 2
1417HQ or AeroDR 2 1417S is used.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
z
When the [AeroSync Button] is OFF
1
When you arrive at the exposure location,
turn on the power of the AeroDR Portable
UF Unit.
• Turn on the power switch of the AeroDR Por-
table UF Unit and conrm that the (green) power
LED is ON.
• For startup operation of the AeroDR Portable UF
Unit, refer to "AeroDR Portable UF Unit Opera-
tion Manual".
• Conrm that the icon of the DR Detector to be
used in exposure is displayed on the application
bar.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• When the AP information channel is set to [Auto CH],
press [Auto CH] on the system monitor screen (por-
table) and check the channel.
• It may take several minutes for wireless connection to
start after turning on the AeroDR Portable UF Unit.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
2
Select the examination.
3
Press [Perform].
• The exposure screen is displayed.
• A message "Ready" is displayed in the mes-
sage/button area, then the screen is locked.
• To change the X-ray detection level, press
[Pause] to enable modification. After changing
the detection level, press [Restart], then the
message "Ready" is displayed.
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• A malfunction may be caused by a shock to the DR
Detector. In such cases, set [AeroSync Button] to ON
on the system monitor screen.
• To prevent incorrect operations, always check that
"Ready" is displayed.
• Conditions for changing the detection level vary de-
pending on the X-ray device being used. If a survey
has been carried out when the system was installed,
follow the survey results.
• When using the AeroDR 3 1417HD, click the modal-
ity icon before making an exposure and select the
AeroDR 3 1417HD.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
