61
Chapter 3
3.5 Exposure screen

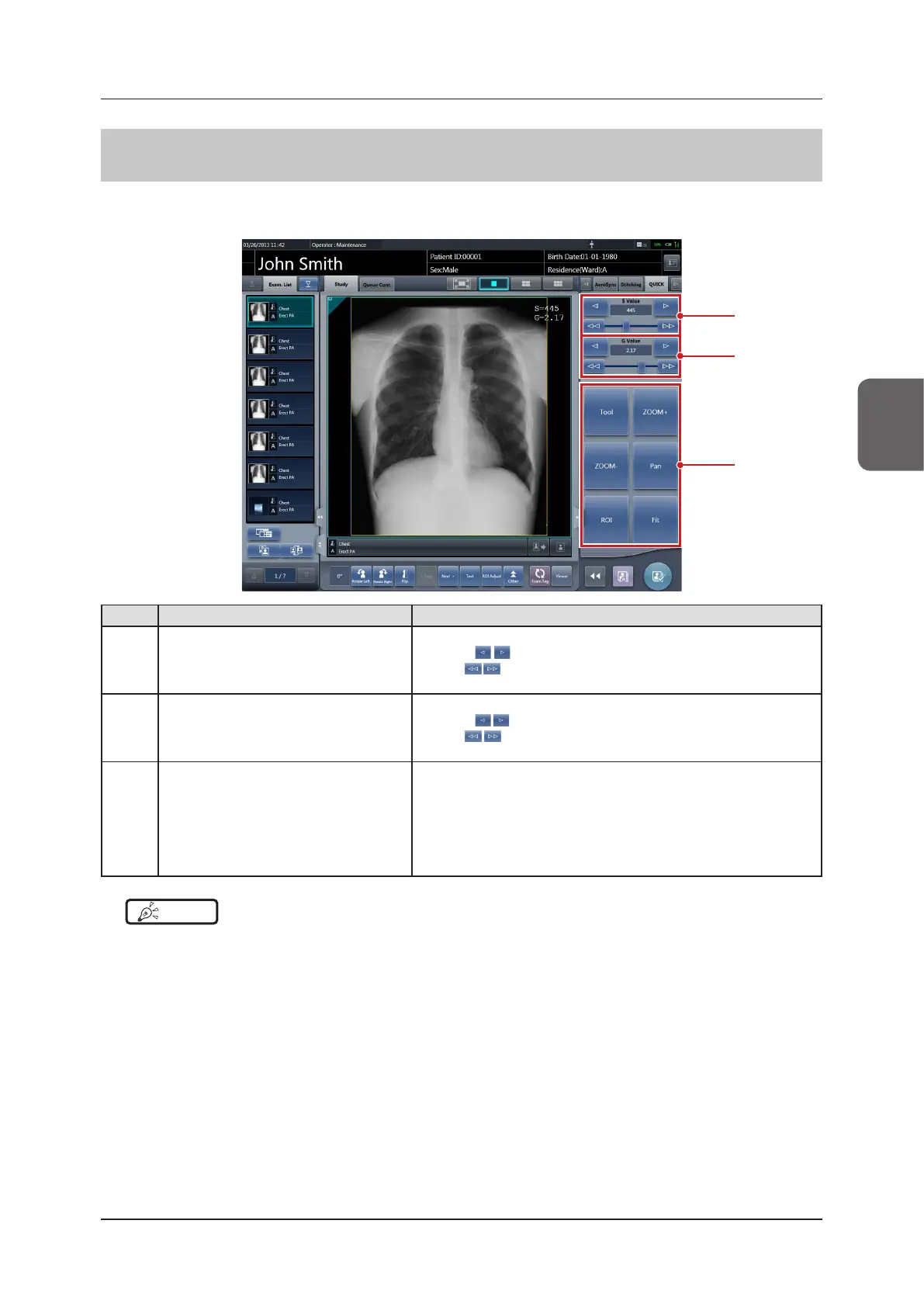

3.5.10 Control panel (QUICK)
This control panel can customize the button types and their layouts according to the function used. This control panel
is mainly used for image adjustments when operating this device using a portable X-ray device.
(1)
(2)
(3)
Number Name Functions
(1) S Value slider/button
Adjusts the S value.
Pressing [ ] increases or decreases the S value step by step.
Pressing [ ] increases or decreases the S value in multiples of the preset value.
The S value can also be adjusted by dragging the slider.
(2) G Value slider/button
Adjusts the G value.
Pressing [
] increases or decreases the G value step by step.
Pressing [
] increases or decreases the G value in multiples of the preset value.
The G value can also be adjusted by dragging the slider.
(3) Custom area
Select a button from among [ZOOM+], [ZOOM-], [Pan], [Fit], [ROI], [Text],
[ROI Adjustment], [Rotate&Flip], [E Process], [F Process], [H Process],
[Tool], [Masking], [Cropping], [Contrast Invert], [Tube/Gauze], [S/G Value],
[Preview], [Detection display] and [IG] displayed depending on the setting
to display each function. The button types and layout can be customized
according to which functions you use.
[Contrast Invert]: Reverses black and white on the output image.
HINT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• Contrast invert is a function for checking the image on the screen. It has no eect on the output.
• The S Value slider/button and G Value slider/button are always displayed.
• In the custom area, you can display the shortcut to the control panel.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
To Next Page
