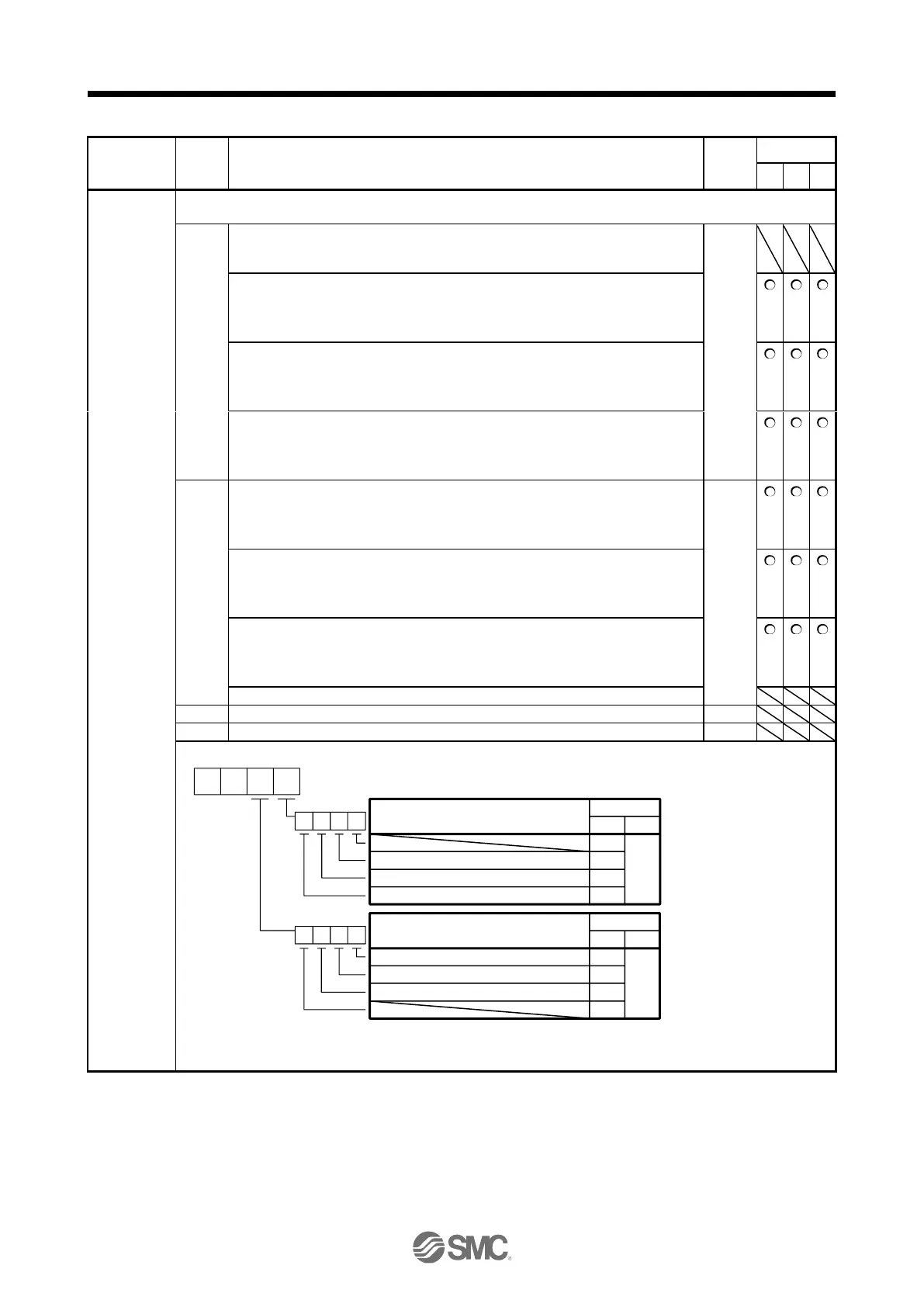

5. PARAMETERS
5 - 63
No./
symbol/name
Setting
digit
Function
Initial
value
[unit]
Network
ECT
EIP
PNT
PC79
*COP10
Function
selection C-
10
Select whether the on/off status of the input device is returned or the on/off status of the pins are returned when
reading "Digital inputs". For details of "Digital inputs", refer to chapter 18,19,20.
_ _ _ x
(HEX)
_ _ _ x (BIN): For manufacturer setting
0h
_ _ x _ (BIN): DI1 status reading selection
Select DI1 (bit 17) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-2 pin is returned.
_ x _ _ (BIN): DI2 status reading selection
Select DI2 (bit 18) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-12 pin is returned.
x _ _ _ (BIN): DI3 status reading selection
Select DI3 (bit 19) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-19 pin is returned.
_ _ x _
(HEX)
_ _ _ x (BIN): DI4 status reading selection
Select DI4 (bit 20) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-10 pin is returned.
0h
_ _ x _ (BIN): DI5 status reading selection
Select DI5 (bit 21) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-1 pin is returned.
_ x _ _ (BIN): EM2/EM1 status reading selection
Select EM2/EM1 (bit 22) status reading.
0: The on/off status of the input device is returned.
1: The on/off status of the CN3-20 pin is returned.
x _ _ _ (BIN): For manufacturer setting
_ x _ _
For manufacturer setting
0h
x _ _ _
For manufacturer setting
0h
Convert the setting value into hexadecimal as follows.
0
Initial value
BIN HEX
Signal name
0
0
0
0
0
DI2 status reading selection
DI1 status reading selection
DI3 status reading selection
0
Initial value
BIN HEX
Signal name
0
0
0
DI4 status reading selection
DI5 status reading selection
EM2/EM1 status reading selection
BIN 0: The on/off status of the input device is returned.
BIN 1: The on/off status of the pin is returned.
0
0
