19．EtherNet/IP COMMUNICATION

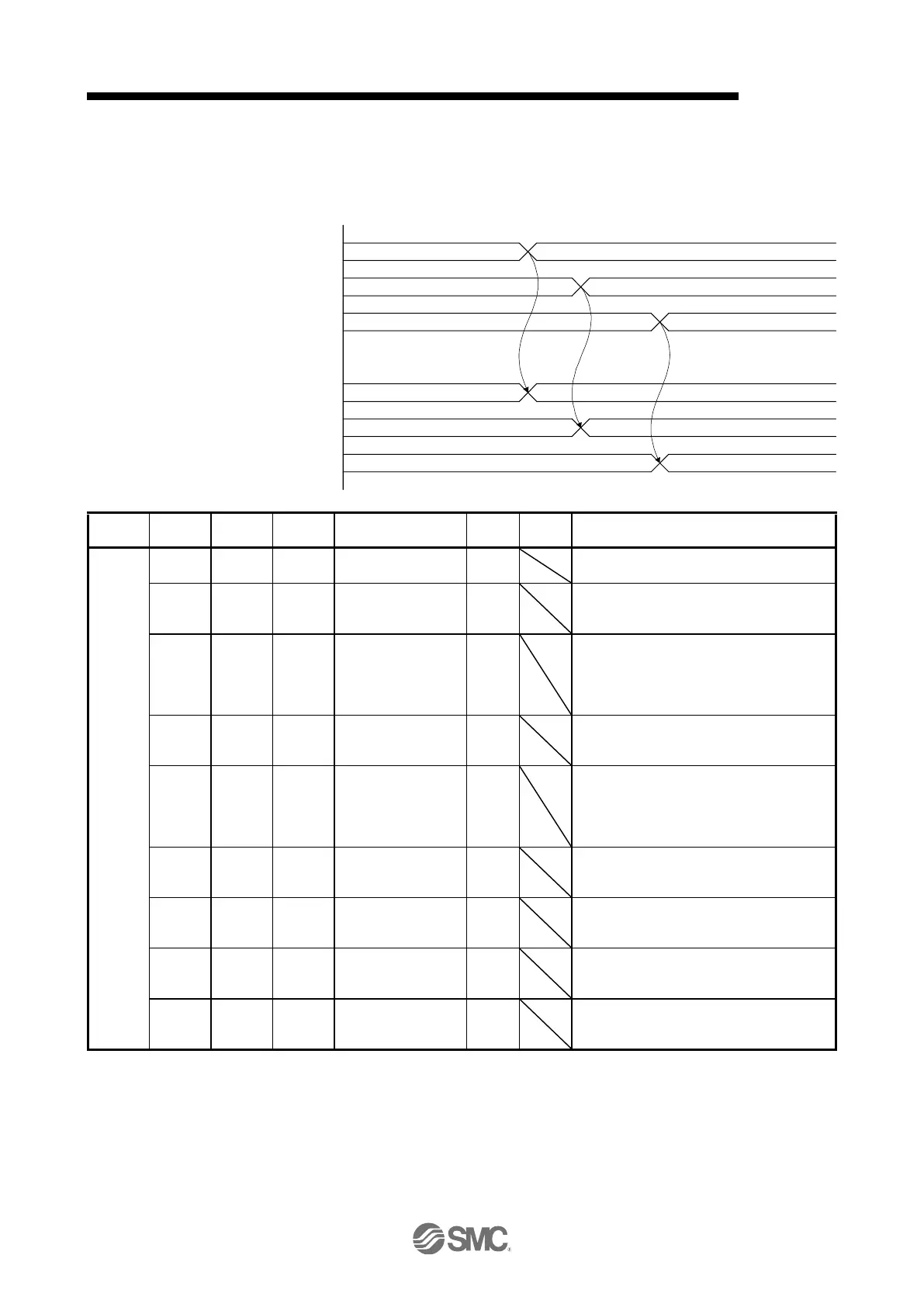

19.6.7 Machine diagnosis function
This function estimates the friction and vibrational component of the drive system in the equipment based on
the data in the driver, and recognizes an error in the machine parts, including a ball screw and bearing. The
information of the machine diagnosis function can be obtained with the following objects.
During estimation
2C20h
2C21h/2C22h
2C23h/2C24h
2C25h to 2C28h
Bit 0 to Bit 3
Friction estimation status at forw ard rotation
Bit 4 to Bit 7
Friction estimation status at reverse rotation
Bit 8 to Bit 11
Vibration estimation status
Estimation completed
Estimation completed
During estimation Estimation completed
During estimation
Undefined value Estimated value
Undefined value Estimated value
Undefined value Estimated value
Class ID
Ins ID
Attr ID
Access
Name
Data
Type
Default
Description
64h
2C20h
0
Get
Machine diagnostic
status
UINT
Machine diagnostic status
Refer to section 7.3.7 (4).
2C21h
0
Get
Static friction torque
at forward rotation
INT
Static friction torque at forward rotation
Static friction torque at forward rotation is
returned in increments of 0.1%.
2C22h
0
Get
Dynamic friction
torque at forward
rotation
(at rated speed)
INT
Dynamic friction torque at forward rotation (at
rated speed)
Dynamic friction torque at forward rotation at
the rated speed is returned in increments of
0.1%.
2C23h
0
Get
Static friction torque
at reverse rotation
INT
Static friction torque at reverse rotation
Static friction torque at reverse rotation is
returned in increments of 0.1%.
2C24h
0
Get
Dynamic friction
torque at reverse
rotation
(at rated speed)
INT
Dynamic friction torque at reverse rotation (at
rated speed)
Dynamic friction torque at reverse rotation at
rated speed is returned in increments of
0.1%.
2C25h
0
Get
Oscillation frequency
during motor stop
INT
Vibration frequency at stop/servo-lock
Vibration frequency during stop/servo-lock is
displayed in increments of 1 Hz.
2C26h
0
Get
Vibration level during
motor stop
INT
Vibration level at stop/servo-lock
Vibration level during stop/servo-lock is
displayed in increments of 0.1%.
2C27h
0
Get
Oscillation frequency
during motor
operating
INT
Vibration frequency during operation
Vibration frequency during operation is
displayed in increments of 1 Hz.
2C28h
0
Get
Vibration level during
motor operating
INT
Vibration level during operation
Vibration level during operation is displayed
in increments of 0.1%.
