11. OPTIONS AND PERIPHERAL EQUIPMENT

11 - 6

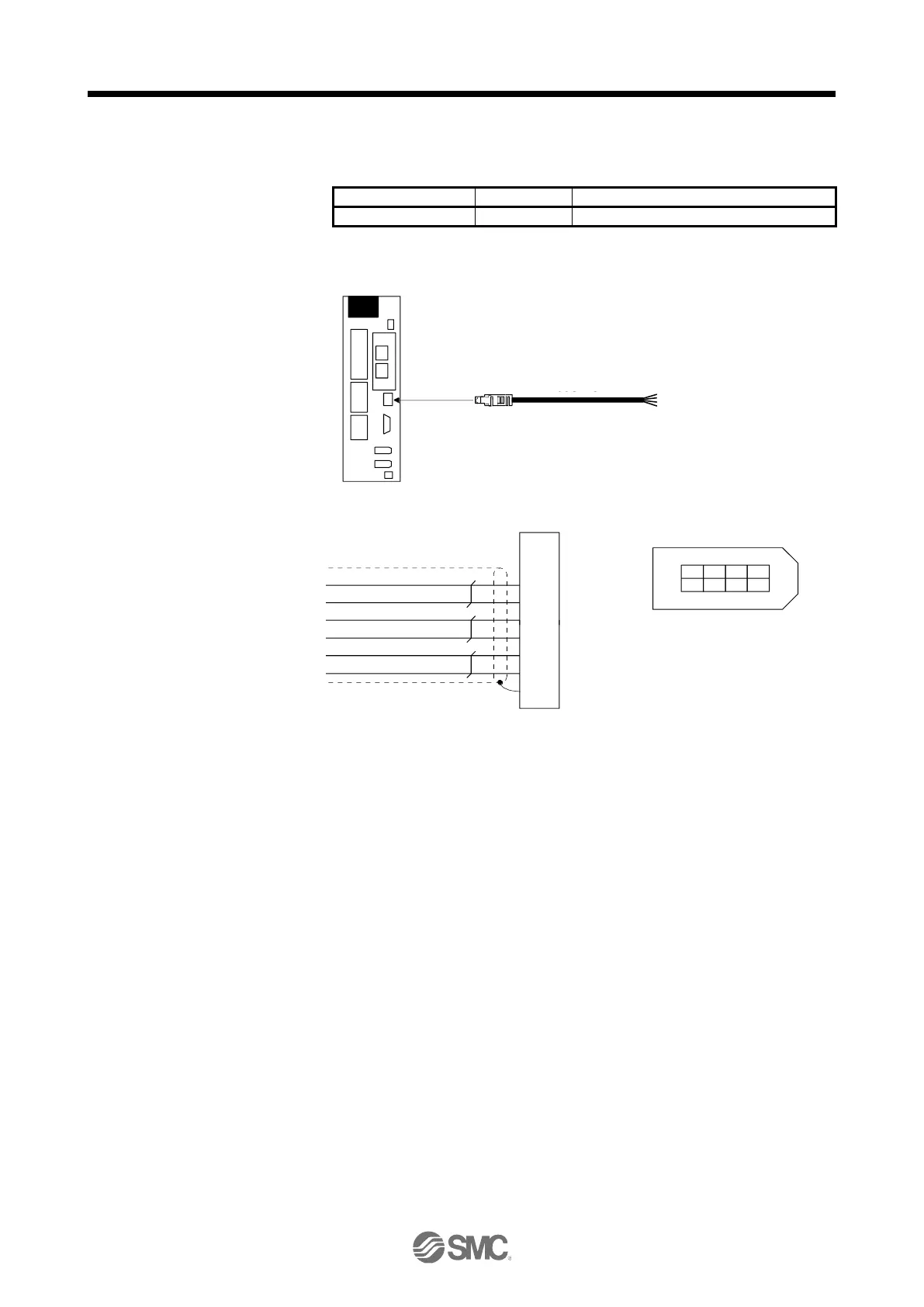

11.1.2 STO cable

This cable is for connecting an external device to the CN8 connector.

Cable model

Cable length

Application

LEC-MR-D05UDL3M

3 m

Connection cable for the CN8 connector

(1) Configuration diagram

サーボアンプ

MR-D05UDL3M-B

CN8

(2) Internal wiring diagram

Plate

STO2

TOFB1

TOFB2

Shield

STO1

TOFCOM8

STOCOM

Yellow (w ith black dots)

Yellow (w ith red dots)

Gray (w ith black dots)

Gray (w ith red dots)

White (w ith black dots)

White (w ith red dots)

(Note)

64 8

CN8 connector

3 5 7

Viewed from the connection part

Note.

Do not use the two core wires with orange insulator (with red or black dots).

LEC-MR-D05UDL3M
