10.4 Cable bending life

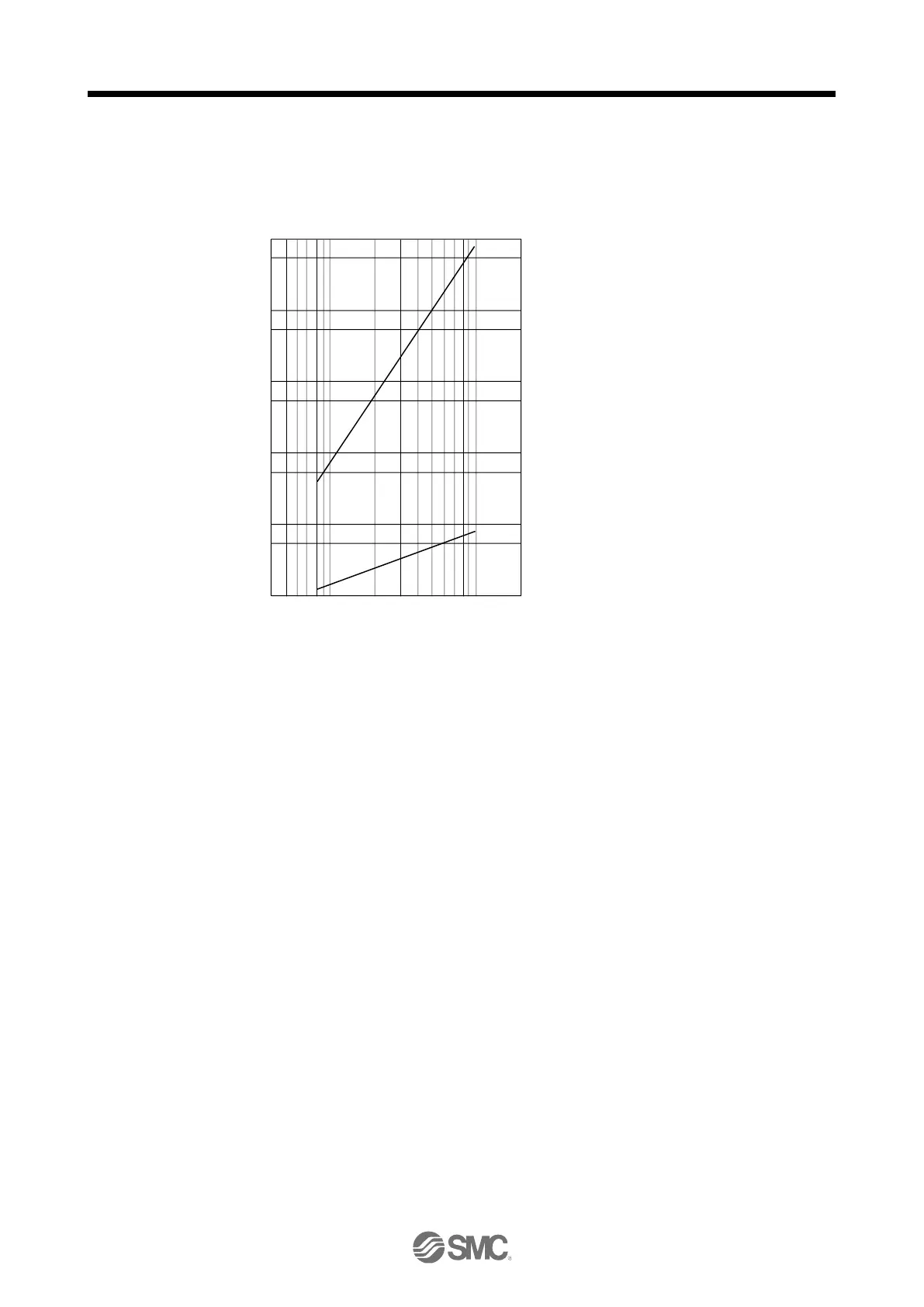

The bending life of the cables is shown below. This graph calculated values. Since they are not
guaranteed values, provide a little allowance for these values. The minimum bending radius : Min.
45mm.
a: Long bending life encoder cable
Long bending life motor pow er cable
Long bending life electromagnetic brake cable
SSCNET III cable using long distance cable
b: Standard encoder cable
Standard motor pow er cable
Standard electromagnetic brake cable
SSCNET III cable using inside panel standard cord
SSCNET III cable using outside panel standard cable
Number of bending times [time]
1 × 10
8
5 × 10
7
1 × 10
7
5 × 10
6
1 × 10
6
5 × 10
5
1 × 10
5
5 × 10
4
1 × 10
4
5 × 10
3
1 × 10
3
Bend radius [mm]
4 7 10 20 40 70 100 200
b
a
Lobot encoder cable
Lobot motor power cable
Lobot lock cable
Standard encoder cable
Standard motor power cable
Standard lock cable
