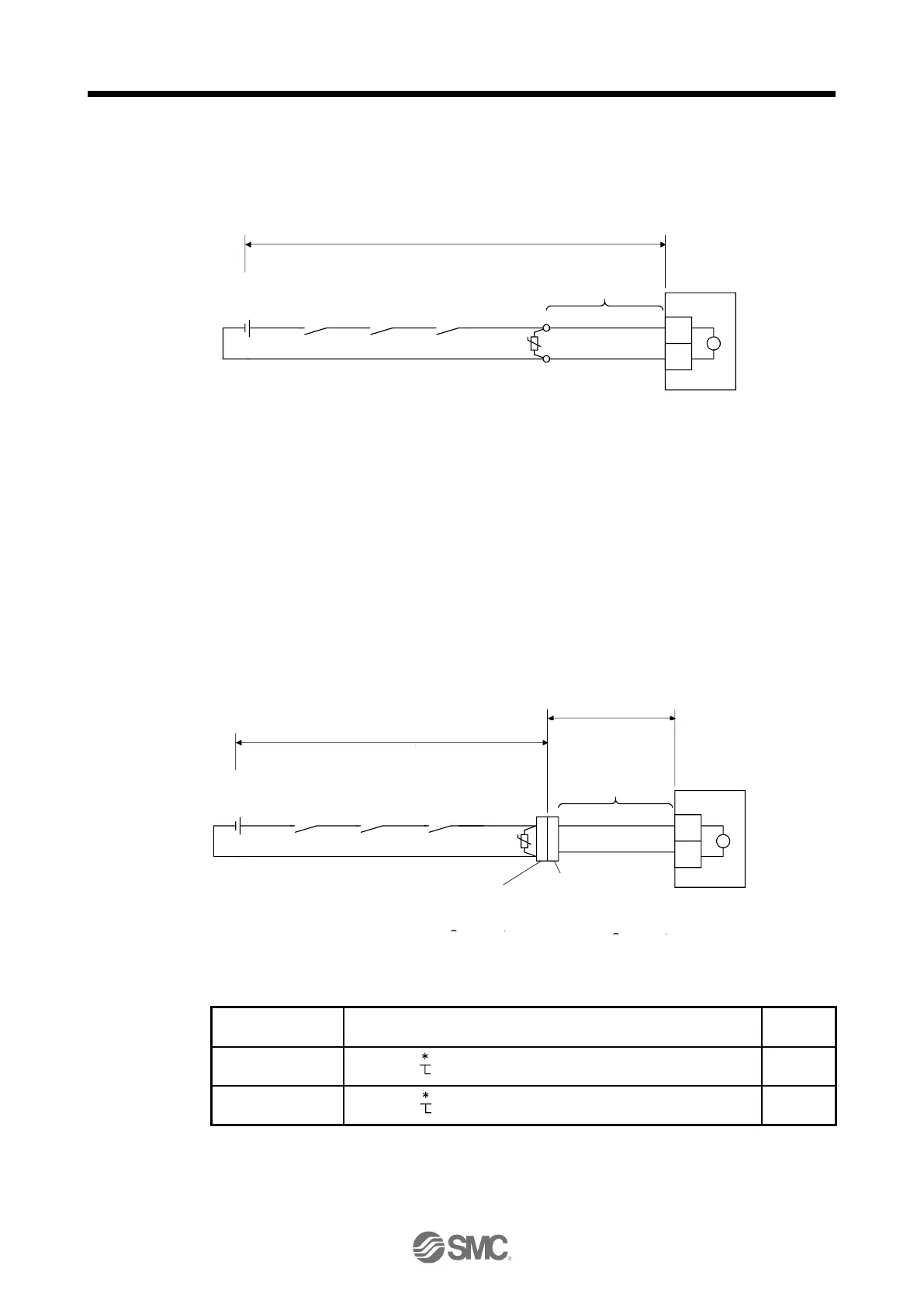

Note 1. Connect a surge absorber as close to the servo motor as possible.
2. There is no polarity in lock terminals (B1 and B2).
3. Do not share the lock power supply with the interface 24VDC power supply.
4. Shut off the circuit in conjunction with the emergency stop switch.
When fabricating the lock cable LE-CSB-R□□, refer to section 11.1.6.
(2) When cable length exceeds 10m
When the cable length exceeds 10m, fabricate an extension cable as shown below on the customer side. In
this case, the lock cable should be within 2m long.
Refer to section 11.5 for the wire used for the extension cable.
Note 1. Connect a surge absorber as close to the servo motor as possible.
2. Use of the following connectors is recommended when ingress protection (IP65) is necessary.
3. Shut off the circuit in conjunction with the emergency stop switch.
4. There is no polarity in lock terminals (B1 and B2).
5. Do not share the lock power supply with the interface 24VDC power supply.
To Next Page
