20．PROFINET COMMUNICATION
20.2 PROFINET NETWORK CARD (LEC-S-NP)
The PROFINET communication with an _ driver requires the PROFINET network card (LEC-S-NP). The
following shows the details.
20.2.1 Specifications
Category
Description
Network card
LEC-S-NP
Product name
ABCC-M40-PIR
Model
AB6938-C-139
Manufacturer
HMS Industrial Networks
External interface
driver connecting interface: Compact flash connector with standard 50 pins
PROFINET communication port interface: RJ45 connector
Dimensions
52 (W) × 50 (D) × 20 (H)
Except the protrusion of the PROFINET communication port connector
Mass
Approx. 30 g

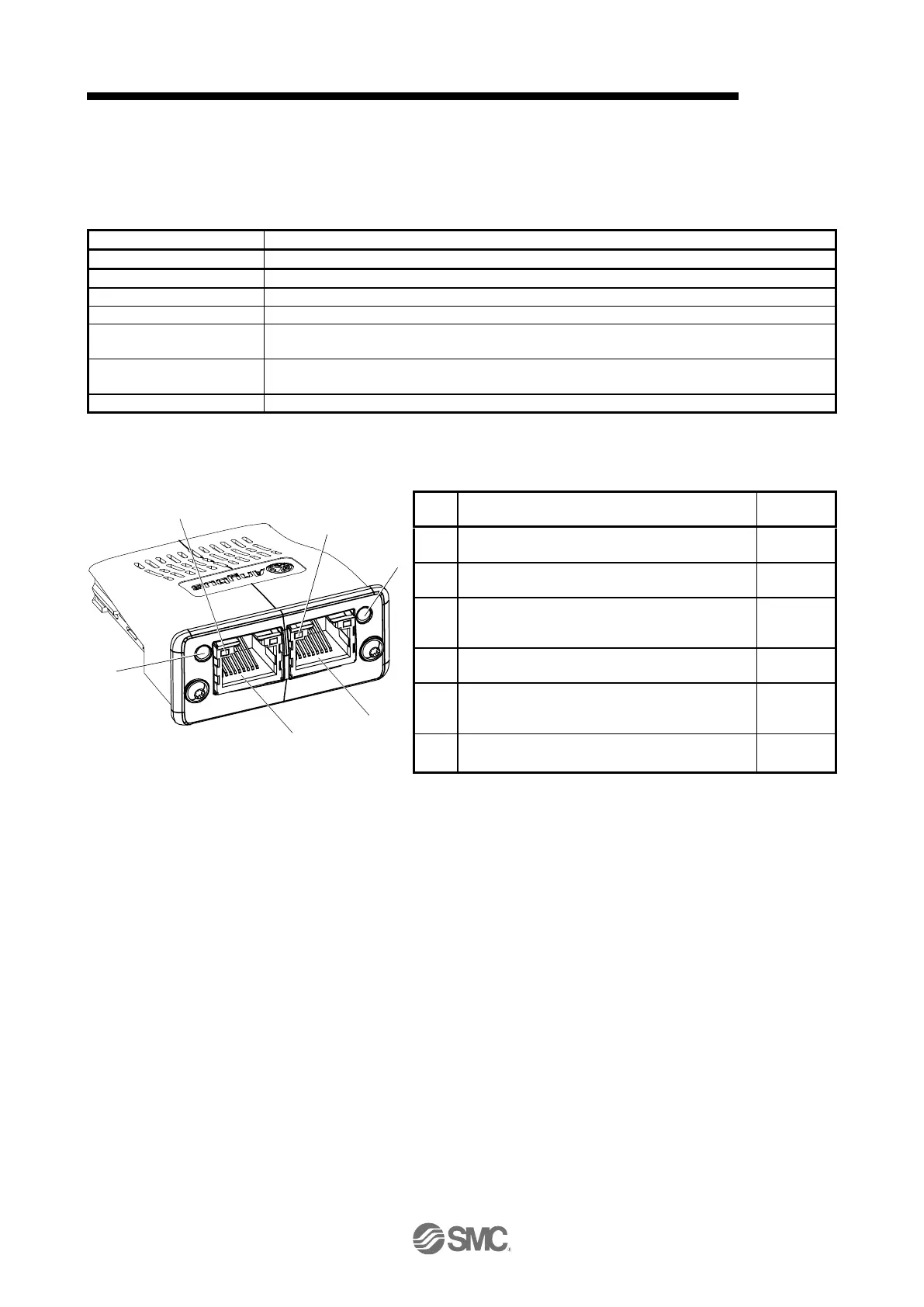

20.2.2 Parts identification
This section describes the PROFINET network card (LEC-S-NP) only. Refer to section 1.7 for the driver.
(5)
(1)
(2)
(6)
(4)
(3)
No.
Name/Application
Detailed
explanation
(1)
Card Status LED
Indicates the card status.
Section
2.2.2
(2)
RJ45 PROFINET communication port (port 2)
Connect the upper side or driver.
Section 2.3
(3)
Link/Activity LED (port 2)
Indicates the link status of each PROFINET
communication port.
Section
2.2.3
(4)
RJ45 PROFINET communication port (port 2)
Connect the upper side or driver.
Section 2.3
(5)
Link/Activity LED (port 1)
Indicates the link status of each PROFINET
communication port.
Section
2.2.3
(6)
Network Status LED
Indicates the communication status.
Section
2.2.1
